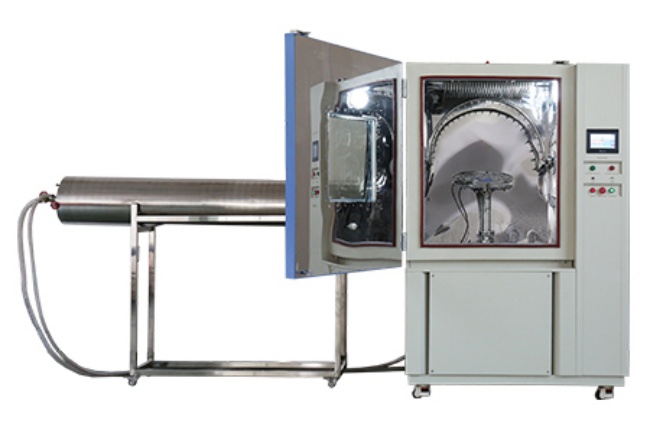

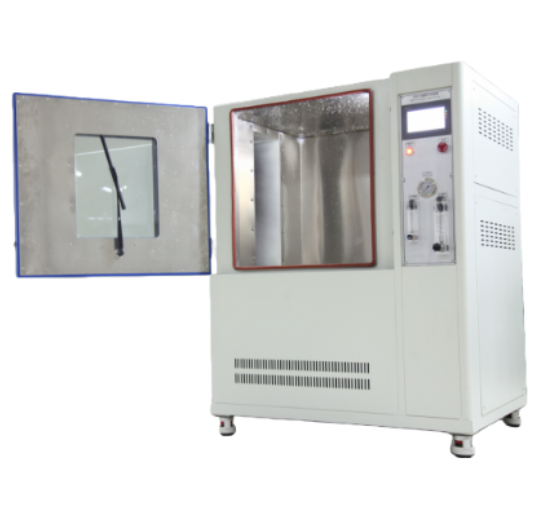

Sealing test, IPX5-IPX6 rain test chamber G-RTC109
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
The IPX5–IPX6 Rain Test Chamber G-RTC109 is designed to evaluate the waterproof protection performance of product enclosures when exposed to powerful water jets. Water-induced damage—such as corrosion, discoloration, deformation, reduced strength, swelling, and mold—can lead to catastrophic failures, particularly in electrical devices where short circuits may cause fire hazards.
This equipment simulates natural rainfall and water jet conditions to verify the reliability, durability, and IP protection level of various products. It is widely used for product design validation, quality assessment, certification testing, and factory inspection.
(1) Waterproof testing for outdoor luminaires, LED drivers, and lighting equipment.
(2) Protection grade testing for household appliances exposed to rain or water spray conditions.
(3) Automotive and motorcycle components requiring IPX5/IPX6 jet protection verification.
(4) Electrical and electronic products such as control cabinets, enclosures, connectors, sensors, etc.
(5) Marine, aviation, railway, and outdoor communication equipment waterproof verification.
(6) Power tools, outdoor power systems, industrial machinery enclosures.
(7) R&D laboratories, certification centers, and quality inspection institutions.
(1) IEC 60529:1989+A1:1999+A2:2013 – Degrees of Protection (IP Code)
(2) GB 4208-2008 – Enclosure Protection Level (IP Code), Clauses 14.2.5 & 14.2.6 and Figure 6
(3) GB 7000.1 – Luminaires – Part 1: General Requirements and Tests (Clauses 9.2.6, 9.2.7 and Figure 9.5)
(1) Designed for IPX5 and IPX6 waterproof jet testing.
(2) Integrated chamber structure; no handheld spray gun required.
(3) Outer chamber made from high-quality coated steel; durable and corrosion-resistant.
(4) Inner chamber and turntable built with SUS304 stainless steel for long-term rust-free performance.
(5) Variable-speed turntable with forward/reverse rotation; ideal for powered samples to prevent cable twisting.
(6) Water flow manually adjustable via high-precision flow meters.
(7) Nozzles manufactured in strict accordance with IEC 60529 specifications.
(8) Built-in AC220V/10A sample power socket with programmable ON/OFF cycles.
(9) Test duration adjustable (0–999 minutes) with automatic stop after completion.
(10) Control system adopts a 7-inch touch screen + Panasonic PLC, with branded electrical components (LS, Omron).
(11) LED waterproof lighting for clear observation inside the chamber.
(12) Built-in water tank with automatic water supply, level control, and water shortage protection.
(13) Spray gun capable of vertical oscillation; combined with turntable rotation for complete uniform spray coverage.
Structural Parameters
| Item | Specification |
|---|---|
| External Dimensions | 3800 × 1050 × 1700 mm (H with water pipe: 2450 mm) |
| Inner Chamber Size | 800 × 800 × 800 mm |
| Water Tank Capacity | ~40 L (560 × 250 × 280 mm) |
| Turntable Diameter | 400 mm |
| IPX5 Nozzle Diameter | 6.3 mm |
| IPX6 Nozzle Diameter | 12.5 mm |
Functional Parameters
| Item | Specification |
|---|---|
| IPX5 Water Flow | 12.5 ± 0.625 L/min |
| IPX6 Water Flow | 100 ± 5 L/min |
| Flow Control | Manual (rotameter) |
| Spray Distance | ≈ 2.8 m (nozzle to turntable center) |
| Nozzle Mounting | Mechanical fixing, programmable angle adjustment |
| Max. Turntable Load | 50 kg |
| Turntable Lift | Fixed (non-adjustable) |
| Spray Method | Water circulation |
Electrical Parameters
| Item | Specification |
|---|---|
| Control System | 7-inch touch screen + PLC |
| Chamber Power Supply | 380 V |
| Sample Power Supply | 220 V |
| Equipment Power | 3.0 kW |
| Safety Protection | Leakage, water shortage, short circuit |
(1) User manual ×1
(2) Certificate of conformity ×1
(3) Warranty card ×1
(4) Waterproof power socket (IP66) ×1
(5) Water inlet hose (3 m) ×1
(1) Ensure the chamber is properly installed, connected to water, and powered according to specifications.
(2) Place the sample on the turntable and secure it if needed.
(3) Select IPX5 or IPX6 mode and adjust water flow using the flow meter.
(4) Set test duration on the touch screen (0–999 min).
(5) If needed, configure sample power on/off cycling parameters.
(6) Start the test; the turntable and spray system will operate automatically.
(7) Observe the test through the LED-lit window.
(8) After the set time, the chamber will stop automatically; remove and inspect the sample.
(1) Clean filters and the water tank regularly to prevent blockage and ensure stable flow.
(2) Check nozzles for mineral buildup and clean when necessary.
(3) Inspect seals and stainless-steel surfaces for wear, corrosion, or leaks.
(4) Verify flow meter accuracy periodically.
(5) Lubricate mechanical turning components according to service schedule.
(6) Ensure drainage pipes remain unobstructed.
(7) Inspect electrical components, PLC, and cables for signs of overheating or looseness.
(8) Perform annual comprehensive maintenance and calibration.
