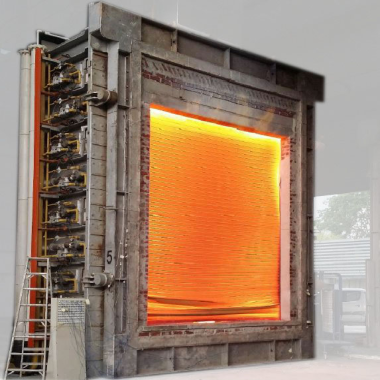

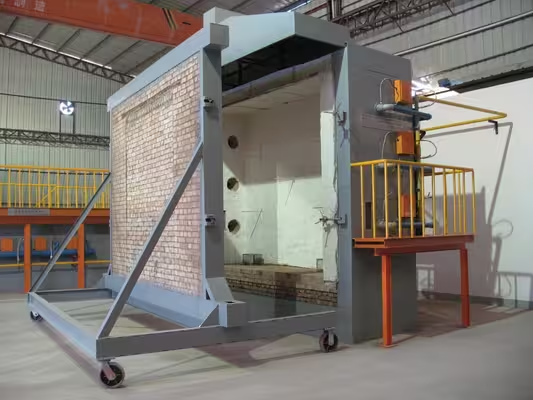

Fire Resistance Test Furnace

Laboratory chamber furnace stands are the optimal solution in the implementation of structural fire resistance tests of building and ship constructions, horizontal and vertical components, and safes. The work of the furnace is fully automated, controlled by PLC (programmable logic controller), which simulates the fire course and provides great flexibility in terms of adaptation to rapid and effective changes in the parameters of a given research.

Fire resistance test chamber flexibility is worth emphasizing (i.e. the ability to quick and efficient adaptation to the type of study). It is equipped with viewfinders to observe the behavior of the test element inside the test chamber, the visualization, data archiving and reporting system, enabling static and dynamic load simulation during fire tests.

Technical solutions of Qinsun furnaces ensure the implementation of specific fire resistance tests of all structures. Devices can be adapted to the specific needs and demands of our customers as well. The diversity of customer requirements necessitates the need of implementing the design of the equipment that will carry the process out in a way that provides maximum flexibility.

Qinsun offers the most versatile Fire Resistance Testing Furnace, designed for compliance testing to ISO 834-1, EN 1363-1, BS 476:20, ASTM E119, UL 263, AS 1530:4

Applications:

Our furnaces enable fire resistance testing of building products to local and international standards, ensuring compliance with Building Regulations. Tested elements include:

walls and partitions

doors and shutter assemblies

columns and beams

ceilings

floors

glazed screens

ventilation ducts

dampers

intumescent seals

penetration sealing systems

structural steel protection

Standards:

ISO 834-1 Fire-resistance tests Elements of building construction Part 1: General requirements

BS 476-20 Fire Tests on Building Materials and Structures - Part 20: Method for Determination of the Fire Resistance of Elements of Construction (General Principles)

EN 1363-1 Fire resistance tests - Part 1: General requirements

EN 1363-2 Fire resistance tests - Alternative and additional procedures

EN 1634-1 Fire resistance and smoke control tests for door and shutter assemblies, openable windows and elements of building hardware - Fire resistance test for door and shutter assemblies and openable windows

ASTM E119 Standard Test Methods for Fire Tests of Building Construction and Materials

UL 10B Standard for Safety - Fire Tests of Door Assemblies

UL 10C Standard for Positive Pressure Fire Tests of Door Assemblies

AS 1530.4 Methods for fire tests on building materials, components and structures. Part 4: Fire-resistance tests for elements of construction

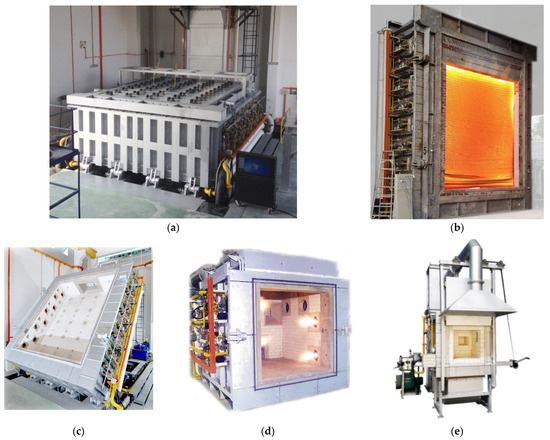

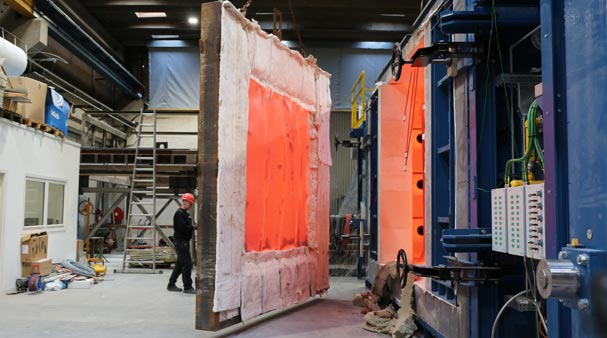

The indicative furnaces:

1,000mm (W) x 1,000mm (H) x 500mm (D)

1,000mm (W) x 1,000mm (H) x 1,000mm (D)

1,200mm (W) x 1,200mm (H) x 1,200mm (D)

1,500mm (W) x 1,500mm (H) x 1,500mm (D)

1,500mm (W) x 2,000mm (H) x 1,500mm (D)

Customized…

Features：

Steady furnace structure, the furnace is made of slotted steel, H-shape, rectangular hollow square steel, and doorway tie beams, guard plate joists, furnace bottom frame, longitudinal and horizontal tie bars and furnace body steel plates, which form a solid whole after high strength welding and can be used for a long time without deformation.

The furnace is lined with refractory bricks on the bottom and refractory fibers on the surface, providing a consistent furnace temperature with low fuel consumption.

Burners are installed on the opposite side of the furnace wall.

Each burner is supplied with an individual fuel line and airline.

Natural gas, LPG, and propane are optional for furnace fuel.

Combustion air blower to furnace burners.

Furnace safety device to detect the failure, alarm, and cut off the fuel supply.

SCADA (Supervisory Control and Data Acquisition) Furnace control system, collect the data of temperature, pressure and other data, real-time output of the furnace temperature curve through online data analysis and calculation.

Furnace chamber temperature and pressure are automatical controlled as well as manual operated.

Advantages:

Automatic and manual control

Maximum use of the research stands

The ability to quick and effective adaptation to the different types of research

Research stands with a large readable display device showing the current time, stopwatch, data number of tests

Alarm signaling

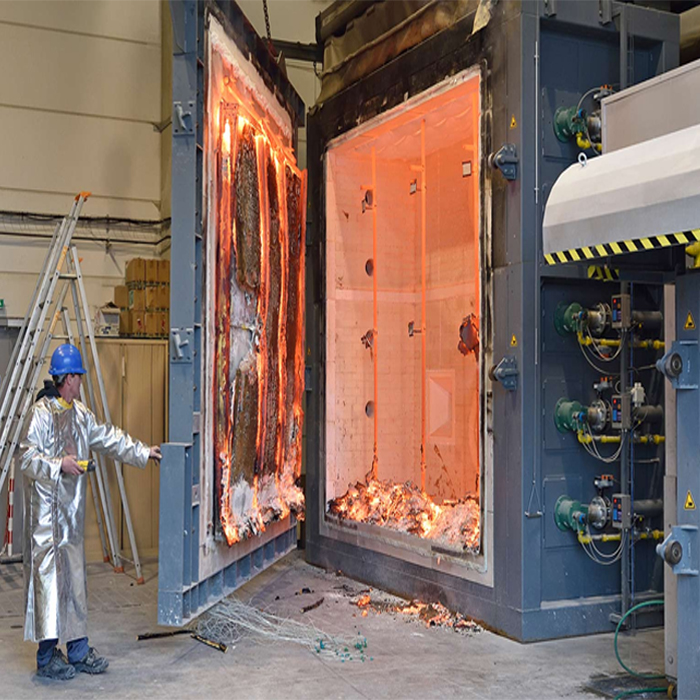

Visors for observation of the behavior of the tested item inside the test chamber

Visualisation, archiving, and reporting data system

The security system switching the heating system off
