Torque Tester G-10

The G Series Torque Tester is designed for precise measurement and verification of static and dynamic torque in laboratory, production, and quality control environments. Torque testers, also known as torque analysers, are precision instruments used to verify the torque output of tools like wrenches, electric screwdrivers, and pulse tools. They play a crucial role in quality control and calibration across various sectors, including manufacturing, assembly, and maintenance. By confirming that tools deliver the correct level of force, torque testers help maintain product integrity and comply with industry standards.

Application

Typical applications include, but are not limited to:

(1) Tightening and loosening torque measurement of bottle caps for cosmetic, pharmaceutical, and food packaging
(2) Opening and closing torque testing of valves used in automotive, fluid control, and industrial systems
(3) Rotational torque measurement of switches, knobs, and rotary controls
(4) Torque testing of gear reducers and transmission components
(5) Zoom and focus torque measurement of camera lenses and optical components
(6) Output torque testing of hand tools and powered torque tools
(7) Torque wrench performance testing
(8) Torque wrench calibration and verification in quality assurance laboratories

Standards

The G Series Torque Tester is suitable for torque testing and verification tasks in accordance with relevant international and industry standards, including:

(1) ISO 6789 — Assembly tools for screws and nuts – Hand torque tools – Requirements and test methods

(2) ISO 7500 (relevant torque verification practices)

(3) ASTM E2624 — Standard Guide for Torque Calibration and Verification

(4) JIS B 4650 — Torque measuring instruments

(5) DIN 51309 — Torque testing and calibration principles

(6) GB/T 15729 — Torque measuring instruments

Parameters

Features

 ◆ Low Center of Gravity, Compact Design Overall height is only 126 mm. The compact structure allows measurement within an A4-size footprint.

◆ High-Performance G Series with USB Data Interface The G series supports USB data transfer to a PC, enabling comprehensive data management and analysis via computer software.

◆ Easy and Convenient Operation Fixing is achieved simply by moving the clamping pins and turning the adjustment knob. By adjusting the clamping pins, objects with diameters from 10 to 190 mm can be measured. Small containers such as cosmetic and medical product bottles are also supported.

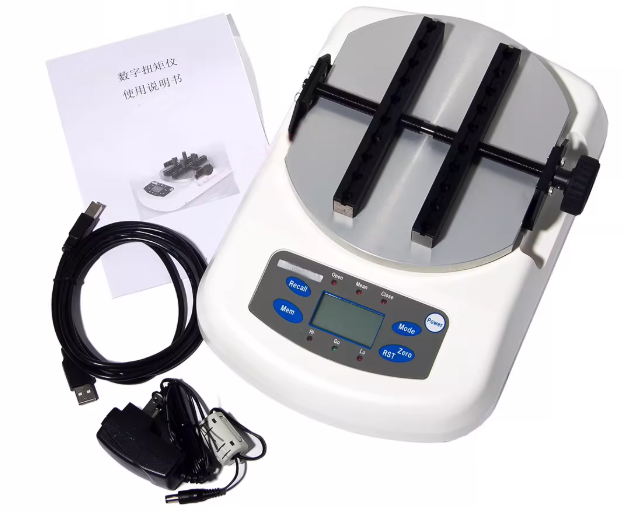

Accessories

(1) Torque tester main unit

(2) AC adapter

(3) USB data cable

(4) Operation manual
