Box Compression Tester

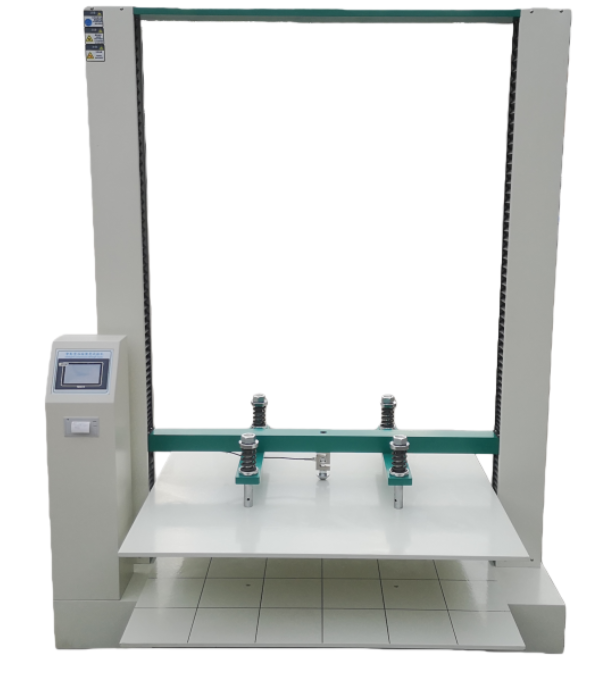

The Box Compression Strength Tester, Compression Testing Machine with  multi-function and high precision is designed to test the compressive strength  of standard size corrugated box, or packages and containers made of other  material with a compressive strength. With advanced mechanical structure of a  pair of threaded shafts &guide pillars and imported motor for control, the  testing machine has the following salient features: good parallelism, reliable  measure precision and high return speed.

The Box Compression Tester (Computer Model) is capable of various functions  for all parameters in standards, Such as parametric test, display, memory,  statistics and print function; data processing function to gain the statistical  result of all parameters directly; and automatic reset and fault diagnosis  function and easy operation.

Application

(1) Compressive strength testing of various paper tubes in the packaging,  textile, and chemical fiber industries.

(2) Evaluation of carton load-bearing capacity for shipping and storage.

(3) Quality control in production lines of paper tubes and cardboard  packaging materials.(4) Research and development of packaging materials.

Standards

(1) BB/T 0032 – Paper Tube Standard

(2) GB/T 4857.4-92 – Packaging – Transport Packaging Units – Compression Test  Method

(3) GB/T 4857.3-92 – Packaging – Transport Packaging Units – Static Load  Stack Test Method

(4) ISO 2872 – Corrugated and solid board – Determination of compressive  strength of boxes

(5) ISO 12048 – Packaging – Complete, filled transport packages – Compression  test method for rectangular packages

(6) ASTM D4169 – Performance Testing of Shipping Containers and Systems

(7) JIS Z 0212 – Testing methods for transport packaging

Parameters

Features

(1) Electromechanical integrated design with modern mechanical structure and  microcomputer control.

(2) High-precision fixed upper compression plate for accurate  measurement.

(3) Automatic return function after testing with fast up/down movement.

(4) Data storage of up to 20 test sets with statistical analysis and  printout.

(5) Two working modes:

  a. Strength Test – measures maximum compressive force and displacement.

  b. Stacking Test – simulates 12-hour or 24-hour stacking per national  standards.

(6) Multiple speed settings and automatic calculation of compressive strength  and stacking performance.

Accessories

(1) Universal quick-connect fixture

(2) Thermal printer with paper

(3) Data recording and control unit

Test Procedures

(1) Place the sample carton or paper tube in the testing fixture.

(2) Set the required test mode: Strength or Stacking.

(3) Adjust the compression speed as required.

(4) Start the test; the machine will automatically apply compression and  record the peak load.

(5) After test completion, the machine automatically returns to the initial  position and saves test data.

(6) Print or export test results for analysis.

Maintenance Information

(1) Keep compression plates and guide rails clean and free of dust.

(2) Lubricate ball screws and moving parts as per schedule.

(3) Regularly inspect electrical connections and sensor calibration.

(4) Replace thermal printer paper as required.

(5) Store in a dry, vibration-free environment to maintain accuracy.
