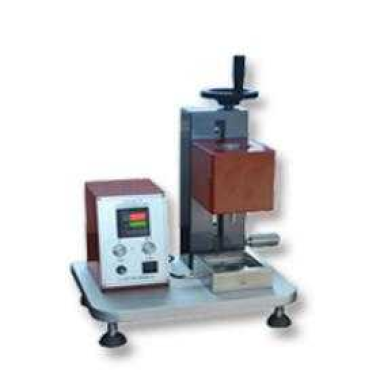

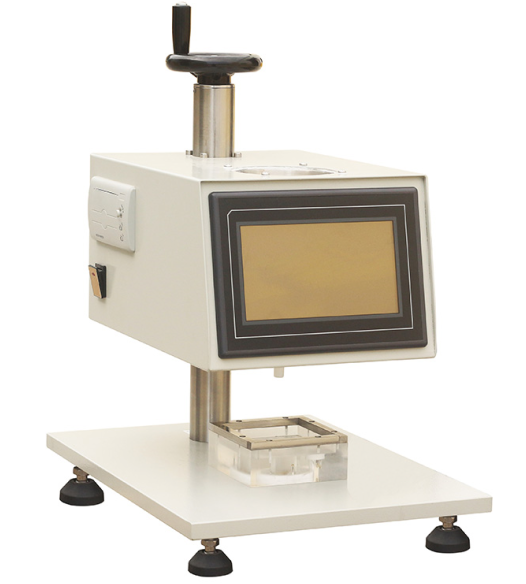

G031 Fabric Liquid Penetration Time Tester

The G031 Fabric Liquid Penetration Time Tester is designed to measure the liquid penetration performance and related parameters of woven and nonwoven fabrics. It determines the time required for liquid to penetrate through the sample under controlled conditions, providing accurate and repeatable results. The instrument is widely used in textile laboratories, quality inspection agencies, research institutes, and production facilities. It features high accuracy, stable performance, and user-friendly operation, helping to reduce manual workload and improve testing efficiency.

Application

This tester is suitable for:
(1) Nonwoven Materials: Evaluation of liquid penetration time for hygiene products such as diapers, sanitary napkins, and medical textiles.
(2) Woven Fabrics: Assessment of liquid transmission behavior in textile materials.
(3) Quality Control: Monitoring product consistency in manufacturing processes.
(4) Research & Development: Supporting material development and performance optimization.

Standards

(1) FZ/T 60017-1993 – Test method for liquid penetration of thin sanitary nonwoven fabrics
(2) GB/T 24218.8-2010 – Textiles – Nonwovens test methods – Part 8: Determination of liquid penetration time (simulated urine)
(3) GB/T 24218.13-2010 – Textiles – Nonwovens test methods – Part 13: Determination of repeated liquid penetration time
(4) GB/T 24218.14-2010 – Textiles – Nonwovens test methods – Part 14: Determination of rewet of coverstock materials
(5) EDANA 150.1-1990 – Nonwoven coverstock liquid penetration time
(6) ISO 9073-8:1995 – Textiles – Nonwovens test methods – Part 8: Liquid penetration time
(7) ISO 9073-13:2006 – Textiles – Nonwovens test methods – Part 13: Repeated liquid penetration time
(8) ISO 9073-14:2006 – Textiles – Nonwovens test methods – Part 14: Rewet determination

Parameters

Features

(1) Automatic Timing System: Timer starts automatically when liquid contacts the sample and stops after penetration, ensuring accurate measurement.
(2) Flexible Standard Compliance: Easily switch test requirements by replacing drip tubes.
(3) Durable Construction: Liquid-contact components are made of corrosion-resistant materials for long service life.
(4) Touchscreen Interface: Equipped with a touch display and virtual keypad for intuitive operation and extended lifespan without mechanical wear.
(5) Stable and Reliable Performance: Ensures consistent and repeatable test results.

Test Procedures

(1) Prepare and place the fabric sample on the penetration plate.
(2) Adjust the funnel height and select the appropriate drip tube according to the test standard.
(3) Start the test; the system automatically dispenses liquid onto the sample.
(4) The timer starts when liquid contacts the sample and stops after penetration.
(5) Record and analyze the penetration time according to relevant standards.

Maintenance Information

(1) Clean drip tubes and funnels regularly to prevent blockage.
(2) Inspect and maintain liquid-contact components to ensure corrosion resistance.
(3) Calibrate timing system periodically for accuracy.
(4) Keep the touchscreen and control system clean and dry.

Conclusion

The G031 Fabric Liquid Penetration Time Tester provides accurate and efficient evaluation of liquid penetration properties in textiles and nonwovens, supporting product quality improvement and compliance with international standards.

FAQ

(1) What is this product?
It is a testing instrument used to measure the liquid penetration time of woven and nonwoven fabrics.

(2) What is this product used for?
It is used to evaluate liquid absorption and penetration performance, especially for hygiene and medical textile products.

(3) What is the working principle of this product?
A controlled amount of liquid is applied to the sample, and the time taken for penetration is automatically measured.

(4) Why is this product important?
It ensures product performance and comfort by accurately evaluating liquid handling characteristics.

(5) What industries is this product suitable for?
Textile manufacturing, hygiene product production, medical materials, testing laboratories, and research institutions.
