Tests protective clothing fabric for liquid resistance under static pressure, quantifying its waterp
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
GB24540-2009，LFY-252

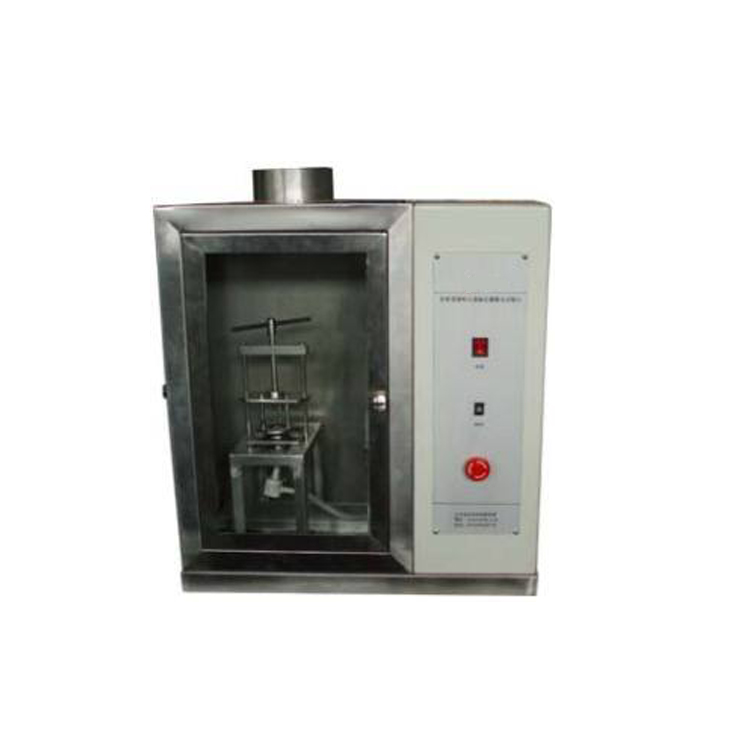

The acid-proof clothing material anti-seepage acid static acid pressure tester is used to measure the acid-base anti-seepage of breathable acid-base protective clothing materials - static acid pressure resistance and liquid static pressure resistance.
The resistance to liquid static pressure borne by the fabric is used to indicate the resistance encountered by the test liquid through the fabric. Under the atmospheric pressure of 101.325kPa, the bottom of the sample is subjected to a continuously rising liquid pressure. Until there are three leaks, and the height of the liquid column at this time is recorded, which is called the fabric resistance to liquid static pressure.
1. Test solution: 80% concentrated sulfuric acid with different concentrations of acid and alkali
2. Rising rate of acid pressure test solution: (60±3) cm/min
3. Maximum pressure: 150mm liquid column "Maximum acid pressure: greater than 150mmH2SO4 (80%)"
4. Range: 0~150mm liquid column "0~150 mmH2SO4 (80%)"
