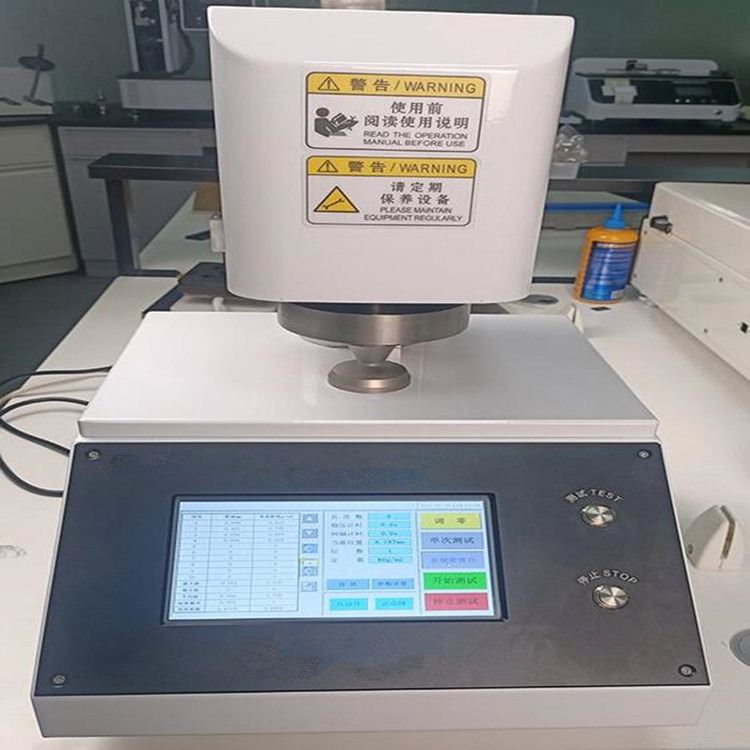

Paper thickness tester

Introduction:

Paper thickness tester is suitable for measuring the thickness of various paper (including toilet paper)， cardboard, corrugated cardboard, tobacco sheet, plastic film and other sheet materials.

Standard:

ISO534. GB/T451.3. GBT24328.2. QB/T1055

Advantages:

Measures Fundamental Property: Accurately quantifies thickness, a key characteristic for material specification and quality control.

Versatile Material Application: Suitable for a wide range of sheet materials beyond just paper and board, including films, foils, and textiles.

Standard Compliant: Designed to meet relevant national and international standards for thickness measurement.

High Accuracy and Precision: Offers high accuracy and fine resolution for reliable measurements, particularly important for thin materials.

Automated Testing: Automatic test completion enhances efficiency and reduces operator influence on results.

Data Processing and Reporting: Integrated statistical functions and printer output facilitate immediate analysis and documentation.

User-Friendly Operation: Touch screen interface simplifies setup and use.

Features:

Chinese touch screen display, friendly man-machine interface operation, automatic completion of the test, with the test data statistical processing function, micro printer output.

Parameters:

Measuring range: (0——5) mm (measuring paper, sheet)， (0——20) mm (measuring cardboard)

Accuracy: ±0.001mm or ±0.5%

Flatness of two measuring surfaces: ≤0.001mm

Test contact area: (2±0.05)cm², (10±0.2)cm²

Contact pressure (can be set arbitrarily) : (0.5-500)kPa, (0.1-100)kPa

Test speed: ≤3mm/s

Weight: About 20kg

Power supply: AC220V, 50Hz

Dimensions: 330×340×350mm
