What is the principle of a microbial barrier tester?

A microbial barrier performance tester is a device specifically designed to evaluate a material's resistance to microbial penetration. It is widely used in medical devices, packaging materials, biosafety, and other fields. Its primary function is to simulate the microbial challenge conditions found in actual use environments, testing a material's barrier performance against microorganisms over a long period of time, and providing a scientific basis for product design and quality control.

Working Principle

Microbial Challenge System:

Equipped with a microbial challenge system, it generates and controls the release and spread of microorganisms. Bacteria or fungal spores are typically used as challenge microorganisms, as these microorganisms have strong vitality and penetrating ability.

Sample Placement and Sealing:

The material sample to be tested is placed in a specific area of ​​the microbial barrier performance tester, and a seal is ensured between the sample and the microbial challenge system to prevent external contamination and microbial escape.

Test Process Control:

Through precise control procedures, the temperature, humidity, and other conditions of actual use environments are simulated, and microorganisms are continuously released within a specified timeframe.

At the same time, the instrument monitors and records microbial penetration in real time, including key parameters such as the number of penetrations and penetration time.

Data Analysis and Result Output:

After the test, the instrument processes and analyzes the collected data to calculate the material's microbial barrier performance indicators.

The results are output in the form of a report, including the number of microbial penetrations, penetration time, and other relevant data.

Industry Applications

Microbial barrier testers are essential precision testing equipment in modern medical device, pharmaceutical packaging, and sterile product manufacturing. Their core mission is to quantitatively assess the ability of a material or component to resist penetration by microorganisms (such as bacteria, molds, and their spores), thereby verifying its effectiveness and reliability as a "sterile barrier system." This verification occurs throughout the product lifecycle, from production and sterilization to transportation, storage, and end-use, and is a critical step in ensuring patient safety and product efficacy.

Medical Device and Pharmaceutical Packaging

In the medical and pharmaceutical industries, packaging is more than just a container; it actively protects the sterility of the product. The application of microbial barrier testing in this field adheres to strict and targeted international standards, depending on the packaging material.

Evaluation of Porous Packaging Materials: Materials such as medical dialysis paper and Tyvek are widely used in surgical instrument packs and dressing packs due to their excellent permeability (allowing sterilizing gases like ethylene oxide to pass through). However, these pores must also be sufficiently fine to effectively block microorganisms. By performing tests based on standards such as ASTM F1608. packaging material samples are exposed to a challenge environment containing a specific concentration of aerosolized microorganisms (such as Bacillus atrophaeus). The instrument accurately quantifies the number of viable microorganisms that pass through the material, objectively evaluating its performance as a microbial barrier and ensuring that the medical devices contained within the packaging remain sterile under specified storage and transportation conditions.

Verification of Non-Porous Packaging Materials: Non-porous materials such as plastic films and aluminum-plastic composite films used in pharmaceutical blister packs, infusion bags, and some high-end devices are theoretically completely insulated. Testing aims to verify that they are free of invisible pinholes and defects during the manufacturing and sealing processes and can withstand certain physical stresses. Following standards such as ASTM F2981. testing typically creates a pressure differential across the material sample, simulating real-world challenges. Liquid or aerosol microbial suspensions are used for challenge. This rigorous testing verifies that non-porous packaging provides reliable protection for microbially sensitive pharmaceuticals, such as injectables and biologics.

Wound Care and Dressings

One of the core functions of wound dressings is to create a solid physical barrier between the wound and the external environment, preventing the ingress of bacteria, thereby preventing infection and promoting healing. Microbial barrier testing in this field directly impacts clinical outcomes.

The tester is used to verify the bacterial barrier properties of various high-end dressings, such as hydrocolloid dressings, film dressings, foam dressings, and their backing materials. A typical application example is the testing of skin adhesives, such as Dermabond (octyl cyanoacrylate). These products form a flexible film on the skin surface when closing cuts or abrasions. Microbial barrier testing scientifically verifies that this film not only adheres to tissue but also effectively blocks the penetration of common pathogens such as Staphylococcus aureus and Escherichia coli, creating a sealed and safe healing environment for wounds.

Sterile Container Systems

In hospitals and sterile supply centers, reusable metal surgical instruments are often stored in specialized sterilization containers. These containers are not completely sealed but instead feature high-efficiency air filters or valves to allow the ingress of steam or ethylene oxide while preventing the ingress of microorganisms.

Microbial barrier testers are specifically designed to evaluate these filter and valve components. The test simulates the negative pressure created within the container during cooling, storage, and handling after the sterilization process. The instrument verifies that under these conditions, the filter media and its connection to the container can continue to serve as an effective microbial barrier, preventing the ingestion of contaminated air from outside, thereby ensuring that the surgical instruments remain sterile until the last moment before the operating table is opened.

Comprehensive Quality Control of Other Sterile Barrier Systems

In addition to the key areas mentioned above, any system claiming to possess a "sterile barrier" function must undergo this verification test. This includes, but is not limited to:

Primary packaging bags for sterile items.

Protective filters used in biological laboratories.

Vents or barrier components on certain medical devices.

Through systematic testing, manufacturers can optimize material selection, improve production processes, establish scientific quality control standards, and meet the stringent regulatory requirements of global regulatory agencies (such as the US FDA and China's National Medical Products Administration).

The application of microbial barrier testers goes far beyond simple "pass/fail" testing. They bridge the gap between materials science, microbiology, and clinical safety. By providing objective, quantitative data, they provide a crucial scientific basis for the design, development, and quality control of medical devices, pharmaceutical packaging, and various sterile products, ultimately building a solid technical barrier to the health and safety of patients worldwide.

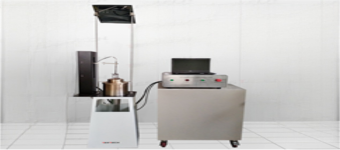

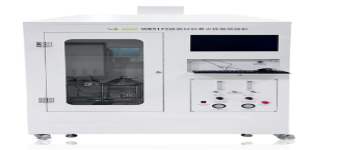

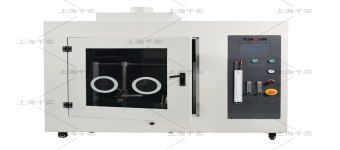

Microbial Barrier Tester

FAQ

Q: What is the method of microbial barrier testing?

Microbial barrier testing measures the ability of a porous substrate to prevent bacterial spore penetration. One standard test method, ASTM F1608. measures the "filtration" efficiency of a substrate to remove spores from an aerosol being forced through it in an air stream.

Q: What is the standard for a microbial barrier tester?

Meet the standard:

EN 15194 ISO 4210. UL 2849 ECE R50. Y/T 0471.5-2017...

For example :Microbial barrier testing according to ASTM F1608

The ASTM F1608 method is used to determine the ability of airborne bacteria to penetrate porous materials used in sterile medical device packaging. This test allows different materials to be compared to determine which provides the best protection against contamination.

A mist of bacterial spores (Bacillus atrophaeus) is sprayed onto a porous test material in an exposure chamber. Spores that pass through the material are captured on a special filter and counted. Comparing the number of spores initially sprayed with the number that pass through determines how effectively the material blocks bacteria.

The results are expressed as a "log reduction value" (LRV), which represents the material's effectiveness in preventing bacteria from passing through.
