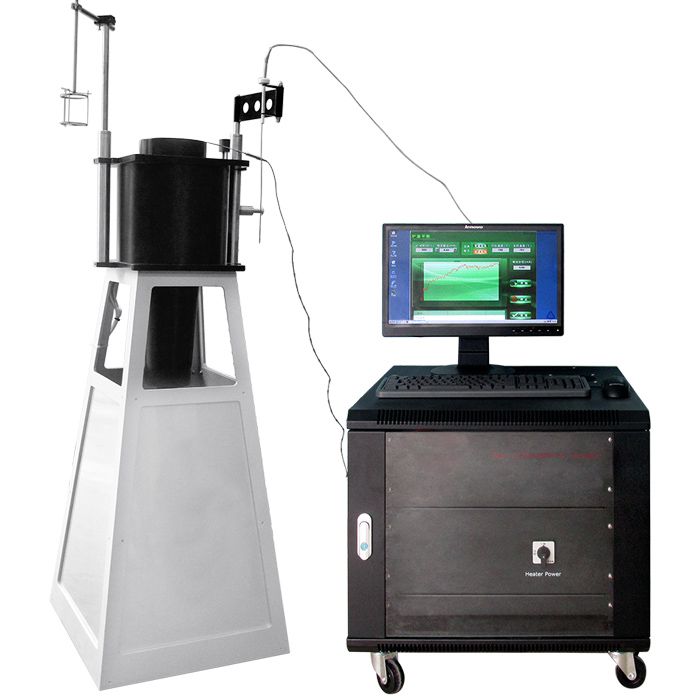

Non-Combustibility Test Machine ASTM E2652, En ISO 1182

This machine is designed and manfacture according to ISO 1182 .Furnace temperature can quickly reach temperature equilibrium into the test program; temperature curve can print free.

Application:

The building materials non-combustibility test furnace is developed in accordance with the technical specifications and requirements stipulated in the national standard GB/T5464-2010. It is suitable for testing methods used to evaluate the combustion performance of building materials under specified laboratory conditions. It is applicable to testing the combustion performance classification of fire-resistant materials according to the GB8624 combustion performance classification of building materials.

Standards:

ISO 1182: building products --- in combustible fire reaction test

BS 476-4:Fire tests on building materials and structures - Part 4: Non-combustibility test for materials

BS 476-11:Fire tests on building materials and structures - Part 11: Method for assessment of the fire hazard of building products based upon the results of tests for ignitability, flame spread, heat release and smoke production

ASTM E 136: Standard Test Method for Behavior of Materials in a Vertical Tube Furnace at 750°C

Features:

1. Intelligent test system with Patent design;

2. Stainless steel burner, beautiful and easy to clean;

3. The heating furnace size: Φ95 mm × Φ75 mm × 150 mm;

4. 3 mm × 0.2 m Ni 80% Cr 20% resistance band;

5. Air cover: Φ75 mm × 500 mm;

6. Thermocouple: insulated nickel-chromium - nickel - aluminum armored Φ1.5 mm ;

7. Equipment with the power controller;

8. The temperature balanced time at 750ºC  is about 35min~40min;

9. Thermometers range: 0 ~ 1000 ºC ± 5%;

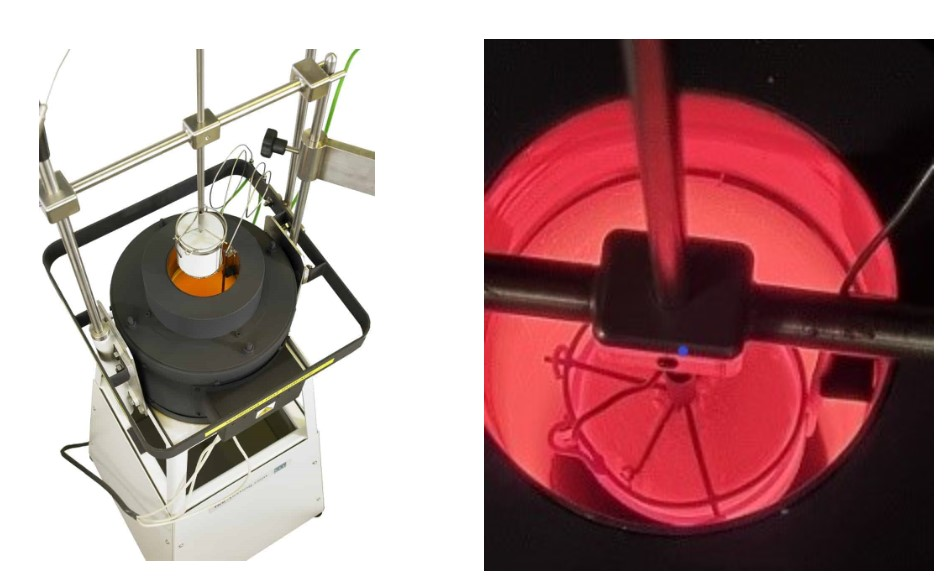

10. Equipped with mirror to see the internal of the furnace.

Control System:

1. High degree of automation, test procedure safe and reliable, easy to operate;

2. To use of high-quality strip heater,furnace temperature was raised to 900 ºC;

3. PLC control system + SSR temperature control system extending the life of furnace;

4. PLC output signal to control the heating voltage is 0-110 VAC. Eliminate the influence of voltage fluctuation on temperature;

5. Temperature control: 750 ºC±2 ºC;Resolution:0.1ºC;

6. The samplies move up-down into the furnace automatically by motor;

7. 7 "touch screen for control parameter setting and display / test data acquisition and preservation / screen monitoring / real-time temperature curve shows / historical curve and data query;

8. With an audible alarm and alarm display functions accidents;

9. To equipped with printer, to print the temperature curve;

Parameters

Accessoriess

Complete set includes:

01. European standard indoor furnishings flammability testing kit

02. No. 4 wooden spacers (10 pieces/pack)

03. No. 5 wooden spacers (10 pieces/pack)

04. No. 6 wooden spacers (10 pieces/pack)

05. No. 7 wooden spacers (10 pieces/pack)

06. Non-flame retardant polyurethane foam 450×450

07. Non-flame retardant polyurethane foam 450×300

08. Non-flame retardant polyurethane foam 450×150

09. Flame retardant polyurethane foam 450×450

10. Flame retardant polyurethane foam 450×300

11. Flame retardant polyurethane foam 450×150

12. Flame retardant polyurethane foam 450×450

13. Flame retardant polyurethane foam 450×300

14. Flame retardant polyurethane foam 450×150

15. Standard cigarettes (10 packs)

Test Procedures

1. So that the furnace temperature equilibrium, if the logger can not be calculated in real time, the final temperature should be checked whether the balance.

2. Before the test should ensure that the entire device is in good working condition, such as a steady flow clean air flow, the device can be smoothly inserted into the slide, the sample holder can be accurately located in a predetermined position in the furnace.

3. Prepared according to a predetermined and regulated by the state of the sample into the sample holder, the sample racks suspended from the support member. The sample holder into a predetermined position in the furnace, the operation time should not exceed 5s. When the sample is located in a predetermined position in the furnace, immediately start the timer. Recorded during the test furnace thermocouple temperature measurement, such as the requirement to measure the surface temperature of the sample and the center temperature, corresponding to the temperature it should also be recorded.

4. Carried 30min test, if the furnace temperature reaches the final equilibrium temperature in 30min, that is measured by a thermocouple temperature drift (linear regression) within 10min of not more than 2 ℃, you can stop the test. If unable to reach equilibrium within 30min, the test should be continued, while every 5min check whether the final temperature equilibrium, when the furnace temperature reaches a final equilibrium temperature or testing time reaches 60min end of the trial should be. Recording duration of the test, the sample holder and then remove from the heating furnace, the end of the time trial for the end time of the last 5min or 60min. Temperature should be checked after the end of the test record if the logger can not be recorded in real time, test. If it can not meet the above requirements, it should be re-tested. If an additional test using a thermocouple, the thermocouple should all have reached the final temperature equilibrium or when the test time was 60min when the end of the trial.

5. The collection and after the test specimen cracked or falling all carbides, ash and other debris, together with the sample into the drying vessel was cooled to ambient temperature, weigh the residual mass of the sample. The quality of each sample were recorded before and after the test and observing the combustion behavior recorded during the test specimen. Sustained fire occurrence and duration records, accurate to the second. Sample shows a continuing 5s or longer continuous flame on the surface it should be regarded as sustained fire.

6. The following furnace thermocouple to measure the temperature, in degrees Celsius, the initial furnace temperature T1, average temperature last 10min predetermined temperature balance of the furnace; furnace maximum temperature Tm, the maximum temperature throughout the test discrete value; the final furnace temperature Tf ,. The temperature during the test last 1min average.

Fourth, the end of the trial, finishing the test furnace wipe clean for the next use.
