Vertical flame test chamber

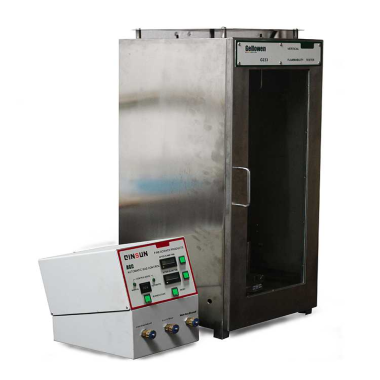

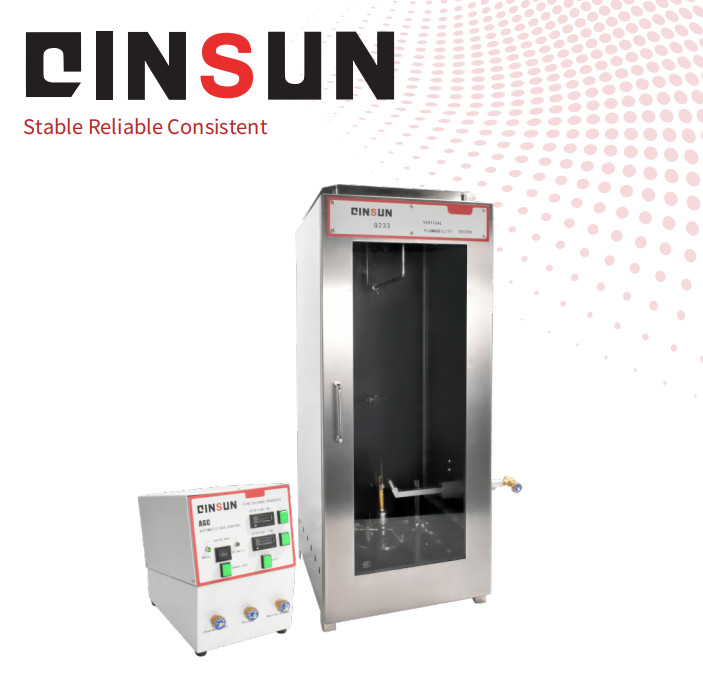

The Vertical Flame Test Chamber is designed to measure the vertical flame spread of textiles, fabrics, and resilient filling materials. It is widely used for children's sleepwear, upholstery, household fabrics, and other materials requiring fire safety assessment. The chamber provides precise, controlled flame exposure, ensuring compliance with international and national flammability standards.

Application:

The vertical burning of textiles is suitable for all types of fabrics and their products. Test method applicable to the burning performance of the bottom edge of the vertical textile specified in GB5455-2014 standard.

Standards

(1) ASTM D6413 – Standard Test Method for Flame Resistance of Textiles (Vertical Test)
(2) CALIF TB117 – California Technical Bulletin 117 for upholstered furniture
(3) DOC-FF 3/71 – US Department of Commerce flammability test
(4) 16 CFR Parts 1615/1616 – US flammability standards for children’s sleepwear
(5) FTMS 191-5903 – US military textile flammability test
(6) CPAI 84 – Sleepwear flammability standard
(7) FAR 25.853 – Federal Aviation Regulation for aircraft materials
(8) GB/T 5455 – China flammability test for textiles
(9) NFPA 701 (small scale) – Flame propagation testing for textiles
(10) CAN/ULC S109 – Small flame test for Canadian standards
(11) UL 214 – Vertical flame resistance of textiles
(12) CA Title 19 – California fire safety standard

Parameter:

Features:

Gas pipeline system special designed, low space occupied, and convenience to move;

Exhaust vents at the bottom and top of test chamber ensure good ventilation and steady flame;

LED displayer shows the igniting time, afterflame time and afterglow time, with high working efficient and the data more accuracy;

A stainless steel construction, large glass-viewing window;

Excellent reliability and minimum maintenance;

Purpose-designed test chamber.

Accessories:

Standard accessories:

1Set Tearing weights

1pc Sample holder

1pc Flame measuring scale

1pc Power line

Optional accessories:

Optional Φ 11mm Nozzle

Optional Φ10mm Nozzle

Optional CFR1615,1616 holder and tear weights

Optional ASTM D6413 holder and tearing weights

Vertical Flammability Test (V and 5V Levels)：

The vertical flammability test evaluates a material’s ability to self-extinguish when exposed to flame in a vertical orientation. There are two main classifications:

1. V-level (50W) Classification: In this test, a 50W flame is applied to the bottom of the sample for 10 seconds, and the time it takes for the flame to extinguish is measured. Materials classified as V-0, V-1, or V-2 must meet specific self-extinguishing criteria. V-0 is the highest rating, indicating that the material stops burning within 10 seconds and does not drip flaming particles.

2. 5V-level (500W) Classification: This test is more stringent and applies a 500W flame to the material for 5 seconds. To pass the 5V test, materials must not burn for more than 60 seconds after the flame is removed, and they should not produce flaming droplets.

Conclusion

The Vertical Flame Test Chamber provides accurate, repeatable assessment of vertical flame spread for textiles and upholstered materials. Its design ensures compliance with global standards, protecting manufacturers, consumers, and regulatory compliance requirements.

FAQ

(1) What is this product?
A testing chamber for measuring the vertical flame spread of textiles, fabrics, and filling materials.

(2) What is this product used for?
To evaluate fire resistance and self-extinguishing behavior of materials under vertical flame exposure.

(3) What is the working principle of this product?
The sample is vertically clamped and exposed to a controlled flame; afterflame and afterglow times are measured to classify material performance.

(4) Why is this product important?
It ensures materials meet fire safety standards, minimizing hazards in textiles, clothing, and upholstered furniture.

(5) Which industries is this product suitable for?
Textile manufacturing, furniture and upholstery, household appliances, aviation, and consumer safety testing.
