Air permeability testing is crucial for measuring how well air can flow through fabrics and materials. This testing helps determine whether a material is suitable for a specific application, such as clothing, filters, or industrial applications.
Whether you work in a textile mill, a research laboratory, or a quality control department, understanding air permeability testers is key to your success. These instruments measure the flow of air through fabric samples under controlled pressure.
The results help manufacturers produce better products, researchers develop new materials, and quality control teams ensure product consistency.
air permeability is a fundamental property that measures the amount of air that can pass through a material. This determines whether a fabric is suitable for outdoor clothing, filters, or industrial applications.
air permeability refers to the rate at which air can flow through a material under a specific pressure differential. Simply put, some fabrics allow air to flow freely (such as mosquito nets), while others completely block air (such as raincoats). This difference in air flow is what we call air permeability.
This measurement shows how much air can pass through a specific area of a material over a specific period of time under controlled pressure. Scientists and manufacturers measure this property to understand a material's performance in real-world applications.
Fabric air permeability refers to the ability of air to pass through a fabric when a pressure differential exists across its two sides. This refers to the volume of air that flows through a unit area of fabric per unit time under a specified pressure differential across the fabric's two sides. The unit is commonly expressed in mm/s. Because a pressure differential is essential for air movement, air flow can only occur within the fabric when a certain pressure differential is maintained across the two sides.
air permeability influences many aspects of a material's performance. In clothing, it determines its air permeability and comfort. Fabrics with high air permeability allow air to circulate freely, keeping the wearer cool and comfortable. Fabrics with low air permeability, while providing windproofing, can make the wearer feel stuffy if not designed properly.
For industrial applications, air permeability is crucial for filters; they must allow air to pass while blocking particulate matter. A proper balance ensures effective filtration without excessively restricting airflow.
Several factors influence how air moves through a material:
Fabric structure: This plays the biggest role. Tightly woven fabrics are less breathable than loosely woven fabrics. The spaces between the yarns create pathways for air to flow.
Fiber type: This influences permeability through its surface properties and the interactions between the fibers. Natural fibers behave differently from synthetic fibers.
Yarn count and density: These determine the amount of open space within the fabric structure. The higher the yarn count, the denser the fabric, and the lower the air permeability.
Finishing: Treatments such as coatings or chemical treatments can significantly alter a material's air permeability. Water-repellent coatings reduce airflow, while certain treatments promote airflow.
Fabric thickness: This influences air permeability, but the relationship isn't always straightforward. Sometimes, thicker fabrics are more breathable due to their structure.
Understanding these factors helps manufacturers control air permeability during production and helps users select the appropriate material for their needs.
An air permeability tester operates by creating a known pressure difference between the two surfaces of a test specimen.
The testing system uses a calibrated pump or fan to generate positive or negative pressure on one side of the sample and atmospheric pressure on the other side.
Under this specific pressure differential, the volume of air passing through the material per unit time is the material's air permeability characteristic.
The measurement process involves the coordinated operation of several key components. The pressure control system maintains a stable pressure differential across the sample.
A flow measurement sensor detects and quantifies the volume of air flowing through the sample. Temperature and humidity sensors provide environmental compensation to ensure accurate results under varying conditions.
A fabric air permeability tester is required. This is a specialized instrument for testing fabric air permeability. Internationally popular air permeability testers use three flow measurement units: orifice plate, circular nozzle, and flow meter. The first two are commonly used in China. These methods are specified in GB/T2624 and ISO5167. The flow meter method is not widely used due to its limited testing range. The air permeability meter uses a high-precision pressure sensor to measure the pressure differential across the sample. A microcontroller calculates the flow rate and displays the air permeability and volume.
Due to differences in testing standards and methods, the units of test data for different materials vary significantly. For example, the ZZ test results for textiles are air permeability (mm/s), while the ZZ test results for leather are air permeability (ml/cm²-h). With dedicated operating software, the same air permeability meter can convert these various test data.

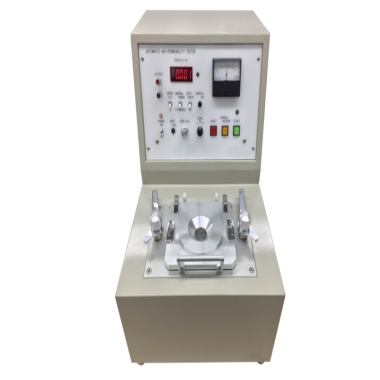

The STD-F8 Fabric Air Permeability Tester is an advanced device designed for efficient and accurate material permeability assessment. It can quickly measure the air permeability and air permeability of a wide range of samples, easily handling a wide range of applications, from highly breathable materials (such as stockings) to low-permeability materials (such as synthetic leather).
Efficient and Accurate Measurement: The instrument utilizes a constant pressure air source method, ensuring highly accurate and reliable test results. Compared to conventional measurement methods, this device achieves precise measurements even under minimal ventilation conditions (simulating the ventilation conditions experienced when garments are actually worn). It is particularly adept at measuring ventilation resistance, with excellent data repeatability.
Simple and Fast Operation: The sample clamping design is extremely user-friendly, allowing the sample to be secured in seconds using a handle. The entire measurement process is seamless, significantly improving testing efficiency and effectively saving both labor and time.
Wide Applicability: The standard configuration supports sample sizes ranging from 50×50 mm to 100×100 mm. A variety of optional accessories are available, including test heads with different diameters (20 πcm² and 0.2 πcm²) and specialized fixtures for samples up to 40 mm thick. This easily meets the testing needs of a wide range of materials, from lightweight to thick, greatly expanding its application range.
Comprehensive Compliance: The instrument strictly adheres to multiple international and national standards, including ISO 9237. GB/T 5453. ASTM D737. DIN 53887. and AFNOR G07-111. This ensures the global validity and credibility of test data, making it an ideal tool for quality control and R&D validation.
This fabric air permeability tester combines high accuracy, high efficiency, strong versatility, and high compliance standards, providing a comprehensive and reliable solution for evaluating the air permeability of materials such as textiles, leather, nonwovens, and films. It is a powerful tool for manufacturers and testing laboratories to improve product quality and competitiveness.
ASTM D737 is the US standard for testing the air permeability of textiles. It specifies test conditions, including a pressure differential of 125 Pa, a test area of 38.3 cm², and sample preparation procedures. It emphasizes measurement accuracy and provides specific test procedures for different types of fabrics.
ISO 9237 is the international standard for testing the air permeability of textiles. This standard is more flexible than ASTM D737. allowing for different pressure levels (100 Pa or 200 Pa) and test area options. ISO 9237 includes uncertainty analysis and international comparability provisions.
GB/T 5453 is a Chinese national standard that follows ISO 9237 with some local modifications. This standard is mandatory for textiles sold in China and is increasingly important to global manufacturers.
Medical textile standards such as ASTM F2101 impose more stringent requirements on surgical drapes, gowns, and other medical textiles. These standards typically require testing at multiple pressure levels and assess bioburden resistance.
Filtration standards such as ASHRAE 52.2 and EN 779 cover air filtration applications. These standards specify testing at multiple flow rates and combine particle efficiency measurements with air permeability testing.
Automotive standards cover cabin air filters, engine air filters, and interior materials. These specialized standards often require testing at elevated temperatures or under specific challenge aerosols.
Measurement traceability to national standards ensures accurate results and supports laboratory accreditation. This traceability requires annual calibration and a certificate from an accredited calibration laboratory.
Reference standards provide convenient traceability verification between formal calibrations. These standards include perforated metal sheets with known flow properties or certified fabric samples with established permeability values.
Quality control procedures should include regular verification using check standards, system stability control charts, and participation in inter-laboratory comparison programs.
Air permeability testing is critical to modern textile and material development, quality control, and research.
The right equipment will help you develop better products, ensure consistency, and meet international standards.
Whichever instrument you choose, investing in quality equipment will pay off in accuracy, productivity, and long-term cost savings.
When selecting equipment, consider your testing needs, budget, and future expansion.
