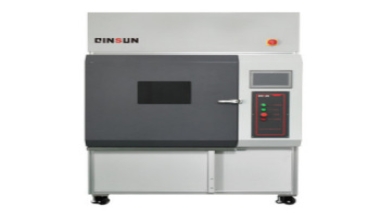

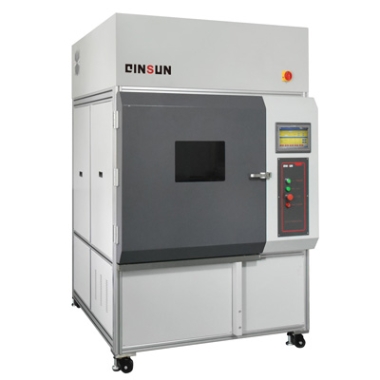

Water-cooled Light & Weather Fastness Tester

Water-cooled Light & Weather Fastness Tester Test for color fastness to sunlight of material

SI4000 water cooled sunlight fastness tester -The color and properties change of textile dyes can be tested by using argon arc lamp to simulate and control the most ideal natural climate and daylight experiment conditions. The aging resistance of materials can also be tested, and the service life of products can be accurately tested on the basis of good repeatability and reproducibility.

introduction

1.The instrument simulates natural climate and artificial daylight by changing temperature, humidity and spraying, and is used for testing the change of color and performance of textiles and dyes.Reliable simulation of full spectrum sunlight, testing the aging resistance of materials. SI series is water-cooled insolation testing machine, with light energy loop control, irradiation energy monitoring, humidity loop control, blackboard temperature loop control, multi-point energy monitoring, reliable ionless water system, different filter combination.

2. The test environment provided by 6500w xenon lamp and ultrasonic humidifier is used to carry out simulation tests under different solar spectra and various climatic conditions, so as to achieve the stability of the test process and high repeatability of test results in a short time.

Standards compliant

AATCC TM16.3  Colorfastness to Light: Xenon-Arc

AATCC TM169  Weather Resistance of Textiles: Xenon Lamp Exposure

AATCC TM16E  Colorfastness to Light

ASTM C1257  Standard Test Method for Accelerated Weathering of Solvent-Release-Type Sealants

ASTM C1442  Standard Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus

ASTM C1501  Standard Test Method for Color Stability of Building Construction Sealants as Determined by Laboratory Accelerated Weathering Procedures

ASTM C1519  Standard Test Method for Evaluating Durability of Building Construction Sealants by Laboratory Accelerated Weathering Procedures

ASTM C732  Standard Test Method for Aging Effects of Artificial Weathering on Latex Sealants

ASTM C734  Standard Test Method for Low-Temperature Flexibility of Latex Sealants After Artificial Weathering

ASTM C793  Standard Test Method for Effects of Accelerated Weathering on Elastomeric Joint Sealants

ASTM D1148  Standard Test Method for Rubber Deterioration?Discoloration from Ultraviolet (UV) or UV/Visible Radiation and Heat Exposure of Light-Colored Surfaces

ASTM D1670  Standard Test Method for Failure End Point in Accelerated and Outdoor Weathering of Bituminous Materials

ASTM D2565  Standard Practice for Xenon Arc Exposure of Plastics Intended for Outdoor Applications

ASTM D3424  Standard Test Methods for Evaluating the Relative Lightfastness and Weatherability of Printed Matter

ASTM D3451  Standard Guide for Testing Coating Powders and Powder Coatings

ASTM D4101  Standard Specification for Polypropylene Injection and Extrusion Materials

ASTM D4303  Standard Test Methods for Lightfastness of Pigments Used in Artists' Paints

ASTM D4355  Standard Test Method for Deterioration of Geotextiles from Exposure to Ultraviolet Light and Water (Xenon-Arc Type Apparatus)

ASTM D4434  Standard Specification for Poly(Vinyl Chloride) Sheet Roofing

ASTM D4459  Standard Practice for Xenon-Arc Exposure of Plastics Intended for Indoor Applications

ASTM D4637  Standard Specification for EPDM Sheet Used in Single-Ply Roof Membrane

ASTM D4798  Standard Test Method for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Xenon-Arc Method)

ASTM D4811  Standard Specification for Nonvulcanized (Uncured) Rubber Sheet Used as Roof Flashing

ASTM D5010  Standard Guide for Testing Printing Inks and Related Materials

ASTM D5019  Standard Specification for Reinforced CSM (Chlorosulfonated Polyethylene) Sheet Used in Single-Ply Roof Membrane

ASTM D5071  Standard Practice for Exposure of Photodegradable Plastics in a Xenon Arc Apparatus

ASTM D5383  Standard Practice for Visual Determination of the Lightfastness of Art Materials by Art Technologists

ASTM D5398  Standard Practice for Visual Evaluation of the Lightfastness of Art Materials by the User

ASTM D5819  Standard Guide for Selecting Test Methods for Experimental Evaluation of Geosynthetic Durability

ASTM D6083  Standard Specification for Liquid Applied Acrylic Coating Used in Roofing

ASTM D6551  Standard Practice for Accelerated Weathering of Pressure-Sensitive Tapes by Xenon-Arc Exposure Apparatus

ASTM D6577  Standard Guide for Testing Industrial Protective Coatings

ASTM D6662  Standard Specification for Polyolefin-Based Plastic Lumber Decking Boards

ASTM D6695  Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings

ASTM D6878  Standard Specification for Thermoplastic Polyolefin Based Sheet Roofing

ASTM D750  Standard Test Method for Rubber Deterioration Using Artificial Weathering Apparatus

ASTM D7869  Standard Practice for Xenon Arc Exposure Test with Enhanced Light and Water Exposure for Transportation Coatings

ASTM D904  Standard Practice for Exposure of Adhesive Specimens to Artificial Light

ASTM F1164  Standard Test Method for Evaluation of Transparent Plastics Exposed to Accelerated Weathering Combined with Biaxial Stress

ASTM F1515  Standard Test Method for Measuring Light Stability of Resilient Flooring by Color Change

ASTM F2366  Standard Practice for Determining the Relative Lightfastness of Ink Jet Prints Exposed to Window Filtered Daylight Using a Xenon-Arc Light Apparatus

ASTM G151  Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources

ASTM G155  Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials

FLTM BO 116-01  Resistance to interior weathering

GB/T 10485  Road vehicles- Lighting and light-signaling devices- Environmental endurance

GB/T 14522  Accelerated weathering test method for plastics, coatings and rubber materials used for machinery industrial products

GB/T 16259  Test method for accelerated weathering of building materials

GB/T 16422  Plastics -- Methods of exposure to laboratory light sources -Part 2: Xenon-arc lamps

GB/T 16991  Textiles--Test for color fastness--Color fastness and ageing to artificial light at high temperatures: Xenon-arc

GB/T 1865  Paints and varnishes--Artificial weathering and exposure to artificial radiation?Exposure to filtered xenon- arc radiation

GB/T 18833  Retro-reflective sheeting for road traffic signs

GB/T 29061  Performance films for glass in buildings

GB/T 32088  Accelerated weathering test methods of automotive nonmetallic components and materials using a xenon-arc apparatus

GB/T 3511  Rubber, vulcanized- Test method for resistance to artificial weathering (xenon-arc)

GB/T 5137  Automotive safety glass test method

GB/T 6151  Textiles-Tests for color fastness-General principle of testing

GB/T 8427  Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test

GB/T 8430  Textiles - Tests for color fastness to artificial weathering - Xenon-arc fading lamp test

GM 9125P  Procedures for Laboratory Accelerated Exposure of Automotive Materials

GME 60292  Designation of Colour Fastness and Resistance to Artificial Light

GMW 14162  Colorfastness to Artificial Weathering

GMW 14170  Coating Requirements for Elastomeric Seals

GMW 14650  Performance Requirements for Exterior Plastic Parts

GMW 3414  Test Method for Artificial Weathering of Automotive Interior Trim Materials

Hyundai MS 210-05  Molded Plastic Parts - Interior Use

Hyundai MS 300-32  Standard Test Method - Woven, Knit

IEC 60068-2-5  Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering

IEC 61345  UV test for photovoltaic (PV) modules

ISO 105-B02  Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test

ISO 105-B04  Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test

ISO 105-B06  Textiles - Tests for colour fastness - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test

ISO 105-B07  Textiles - Tests for Colour Fastness - Part B07: Colour Fastness to Light of Textiles Wetted with Artificial Perspiration

ISO 105-B10  new standardTextiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation

ISO 11341  Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation

ISO 12040  Graphic technology - Prints and printing inks - Assessment of light fastness using filtered xenon arc light

ISO 16474-1  Paints and varnishes - Methods of exposure to laboratory light sources - Part 1: General guidance

ISO 16474-2  Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps

ISO 18909  Photography - Processed photographic colour films and paper prints - Methods for measuring image stability

ISO 18930  Imaging materials - Pictorial colour reflection prints - Methods for evaluating image stability under outdoor conditions

ISO 18937  Imaging materials - Photographic reflection prints - Methods for measuring indoor light stability

ISO 29664  Plastics - Artificial Weathering Including Acidic Deposition

ISO 3917  Road vehicles - Safety glazing materials - Test methods for resistance to radiation, high temperature, humidity, fire and simulated weathering

ISO 4892-1  Plastics - Methods of exposure to laboratory light sources - Part 1: General guidance

ISO 4892-2  Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources

JASO M346  Light-exposure test method by xenon-arc lamp for automotive interior part

JASO M351  Automotive parts - Accelerated weathering testing method by xenon-arc lamp for exterior parts

JIS B 7754  Light-exposure and light-and-water-exposure apparatus(xenon arc lamp type)

JIS D 0205  Test Method of Weatherability for Automotive Parts

MIL-STD 810F  Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.4: Solar radiation (Sunshine)

MIL-STD 810G  Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.5: Solar radiation (Sunshine)

Peugeot Citroen (PSA) D27 1389  Paint Coatings Rubbers and Plastics - Artificial Ageing by Weather-Ometer

Peugeot Citroen (PSA) D47 1431  Materials and Parts in the Passenger Compartment Appearance Behaviour to Artificial Light at High and Mean Temperatures

Renault D27 1911  Rubber and Plastic Paint Coatings - Artificial Ageing by Weather Ometer

Renault D47 1431  Materials and Passenger Compartment Parts Behaviour of the Appearance to Artificial Light at High and Medium Temperatures

SAE J1885  Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Water Cooled Xenon-Arc Apparatus

SAE J1960  Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Water-Cooled Xenon Arc Apparatus

SAE J2412  Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus

SAE J2413  Protocol To Verify Performance of New Xenon Arc Test Apparatus

SAE J2527  Performance Based Standard for Accelerated Exposure of Automotive Exterior Materials Using A Controlled Irradiance Xenon-Arc Apparatus

VDA 621-429  Tests for automotive coatings - Weathering test for colour fastness

VDA 621-430  Tests for automotive coatings - Test for resistance to cracking of 2 layer metallic clear coats

VDA 75202  Automotive interior materials - Colorfastness and ageing test against light at high temperatures: Xenon arc

VW PV 1303  Non-metallic materials - Lightfastness test for interior parts

VW PV 1306  Exposure Test for Determining the Tackiness of Polypropylene Parts

VW PV 3929  Non-Metallic Materials - Weather Ageing in Dry, Hot Climate

VW PV 3930  Non-Metallic Materials - Weathering in Moist, Hot Climate

GB/T 2424.14-1995 Environmental Tests for Electrical and Electronic Products Part 2: Test Methods - Guidelines for Solar Radiation Tests

GB/T 8427-2008 Color Fastness and Color Fastness to Artificial Light Tests of Textiles: Xenon Arc

GB/T 8430-1998 Color Fastness and Color Fastness to Artificial Weather Tests of Textiles:Xenon Arc

GB/T 2423.24-1995 Environmental Tests for Electrical and Electronic Products Part 2: Tests Simulation of Solar Radiation on the Ground

GB/T 16422.2-1999- Test Method of Exposure for Light Sources in Plastics Laboratory - Part 2: Xenon Arc Lamps

GB/T 18652009 Artificial Climate Aging of Paints and Varnishes and Xenon Arc Radiation Filtered by Artificial Radiation Exposure

GB/T 12831-1991 Test Method for Aging of Vulcanized Rubber in Artificial Climate (Xenon Lamp)

GB/T 5137.31996 Test Method for Radiation, High Temperature, Moisture, Combustion and Simulated Climate Resistance of Automotive Safety Glass

GB/T 162591996Test Method of Accelerated Color Aging of Colored Building Materials under Artificial Climate

ASTMG155. ISO10SB02/B04 Design and Manufacture of Relevant Standards

Major Features

Intelligent touch screen control panel

Microcomputer control system, more efficient and more reliable, programmable 7 inch color LCD touch screen, control, detection, calculation, data display and other functions.

powerful software function

Enhanced control system can handle complex custom procedures and simple pre-programming test, simple operation page icon is clear and easy to understand;Irradiance, temperature and humidity are adjustable.

Multidirectional protection design

Instrument with irradiance monitoring, lamp power monitoring, water quality monitoring, temperature monitoring, water level to limit, lack of protection, water flow monitoring, dry burning protection, leakage protection

large test area

Imported xenon lamp, new water-cooled xenon lamp cooling system, good cooling effect, low cooling water consumption, large experimental box, can test up to 65 samples at a time, the sample rack can be rotated, improve the exposure consistency of all

Irradiance closed-loop monitoring and automatic regulation

The instrument can meet a variety of band light source testing, can be regularly through the irradiance calibration device automatic calibration, irradiance calibration device through the certification of the authority of the metering institutions.

Field Application

SI4000 water cooled sunlight fastness tester is widely used in plastics, paint coating, ink, packaging, automotive materials, photochemical materials, pigment dyes and textiles and other industries.

It is applicable to the performance verification of new products, quality control of the production department, and the of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervisiondepartment, etc.

Technical Parameters

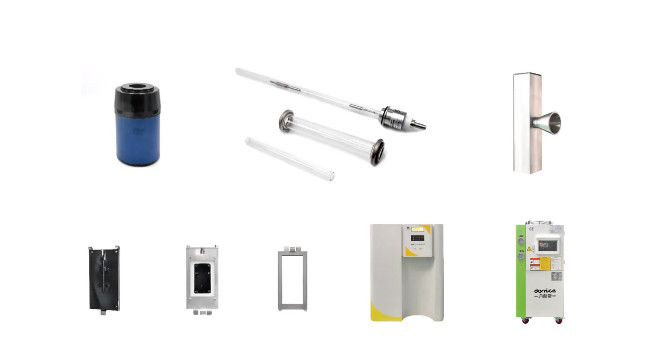

Our xenon lamp weathering machine can use Atlas ci4000 lamp tubes, which have the same performance and spectral range as Atlas xenon lamp weathering machines, and meet all the testing standards of Atlas similar models. It is the most perfect alternative to Atlas xenon lamp weathering machines. At the same time, the company provides complete machine installation and after-sales service.

Our xenon lamp weathering tester can replace the Atlas CI4000 xenon lamp weathering tester of the same model. It can be installed with the original Atlas lamp tube, and the spectrum and performance are exactly the same as the Atlas xenon lamp weathering tester, making it a perfect replacement for the Atlas xenon lamp weathering tester.

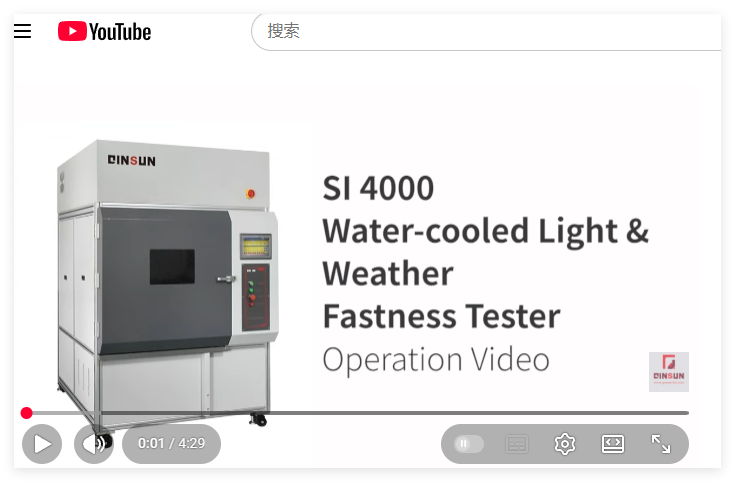

YouTube video introduction ： https://www.youtube.com/watch?v=DdNAsBuaeIQ&t=2s

Other xenon lamp aging testers of the same type are recommended:

1、Air-cooled Xenon Lamp Aging Tester

2、Desktop xenon lamp aging tester

3、UV Lamp Aging Test Tester
