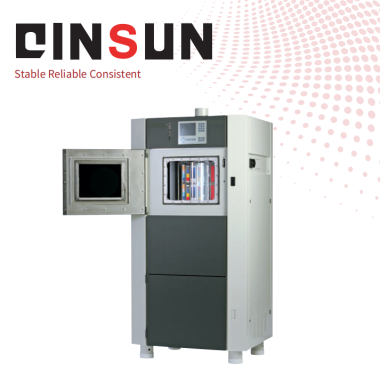

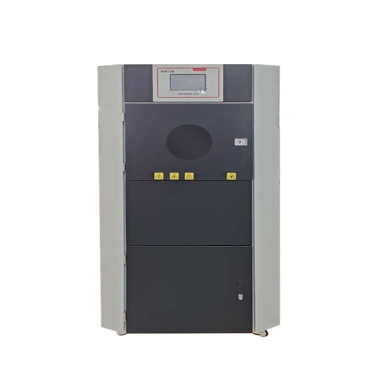

The air-cooled xenon lamp aging tester is a device that uses an air-cooled system to dissipate heat
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Recommended related products:
Sunlight Color Fastness Tester： Tabletop Lightfastness Tester (SunMaster)
Light Fastness Testing Instrument: Lightfastness Tester Si3000 (Fade-Ometer）
xenon arc weatherometer: Xenon Arc Weather Ometer Si4000
Accelerated Weathering Tester: UV Accelerated Weathering Tester (UVtest)
Application:
Qinsun si220 is a highly economic textile color lightfastness tester that can test up to 250 samples simultaneously. It complies to industry standards ISO 105- B02, AATCC TM16 (option 3), and Marks & Spencer C9, C9A.
This light fastness tester is also apply to light color fastness, anti-climate color fastness, light & perspiration color fastness and light aging tests of paint, dye, coating, rubber, plastic, wood floor, paper and other materials, it have anti-climate functions of exposing to the rain, revolution and mist spraying.
Standard Compliance:
AATCC TM16-2004：Colorfastness to Light
AATCC TM16.3：Colorfastness to Light
AATCC TM169：Weather Resistance of Textiles: Xenon Lamp Exposure
ASTM G155：Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials
ISO 4892-2：Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources
ISO 16474-2：Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps
ISO 105-B02：Textiles - Tests for colour fastness - Part B02: Colour fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04;Textiles - Tests for colour fastness - Part B04: Colour fastness to weathering: Xenon arc test
ISO 105-B10:Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation
M&S C9:Colorfastness to Light
M&S C9A:Colorfastness to wet light in the presence of alkaline or other chemical residues
For more relevant testing standards, please consult our professional engineers.
Energy-Efficient Air Cooling System
Eliminates the need for water chillers, reducing energy consumption by up to 40% compared to traditional water-cooled models.
Low-noise operation (<60 dB) ensures a quiet testing environment.
Cost-Effective Maintenance
No water pipes, filters, or coolant replacements required. Simplified design minimizes downtime and maintenance costs.
Rapid Thermal Cycling
Achieve temperature shifts from -20°C to 80°C in <10 minutes, accelerating test cycles without compromising accuracy.
Advanced Spectral Control
Precision filters mimic natural sunlight (UV, visible, and IR spectra) for realistic aging simulation.
User-Centric Design
10.4” touchscreen with intuitive interface, multi-language support, and remote monitoring via Wi-Fi/Ethernet.
Dual-Mode Cooling Technology
Combines forced-air convection with a high-efficiency heat sink to stabilize lamp temperature during prolonged tests.
Intelligent Irradiance Control
Closed-loop feedback system maintains ±0.02 W/m² irradiance accuracy (300–400 nm range).
Programmable Climate Control
Independent settings for temperature (-20°C to 100°C), humidity (10%–95% RH), and rainfall simulation (0–50 cycles/hour).
Safety First
Overheat protection, emergency stop, and UV-shielding acrylic door ensure operator safety.
Modular Expandability
Add-on modules for ozone control, salt spray corrosion, and mechanical stress testing.
Standard Kit:
1 × Air-Cooled Xenon Lamp (6500h lifespan)
2 × Adjustable Sample Racks (Max. 10 kg load)
1 × Calibrated Radiometer
1 × USB Data Logger (16GB)
1 × UV-Resistant Acrylic Viewing Window
Optional Add-Ons:
Humidity Control Module (-20°C to 80°C, 10%–95% RH)
Remote Monitoring Software (IoT-enabled)
Multi-Language Interface Pack (10+ Languages)
Spare Lamp Kit (2x Xenon Lamps + Filters)
| Specification | Details |
|---|---|
| Xenon Lamp Power | 2.2 kW (Air-Cooled, 6500h lifespan) |
| Test Chamber Size | 700 × 500 × 500 mm (W×D×H) |
| Temperature Range | -20°C to 100°C (±2°C accuracy) |
| Humidity Range | 10%–95% RH (±3% accuracy) |
| Irradiance Range | 30–120 W/m² (300–400 nm, adjustable) |
| Test Cycles | 1–9999 hours (programmable intervals) |
| Power Supply | 220V/50Hz/60Hz, 20A (Single-phase) |
| Dimensions (W×D×H) | 1200 × 800 × 1800 mm |
| Weight | 350 kg (Net) |
Our Qinsun Si 220 weathering tester can completely replace the Atlas Xenotest 220/220+ xenon lamp weathering tester, with reliable product quality, stable performance and accurate test data;
