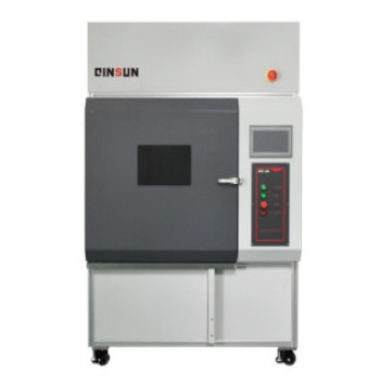

Desktop Xenon lamp aging test chamber

The Xenon lamp aging test chamber is a photoaging tester for large-capacity textile testing. With additional sample light frame, temperature sensor and easy to aging filter. 220 can test 38 samples at the same time, with 150S + double capacity. Large-capacity test box combined with the efficient use of hydropower to make it the most economical air-cooled tester.

Applications:

Weather-Ometer and Fade-Ometer with their advanced digital control systems, represent monumental achievements in applying digital and optical technologies in easy-to-use laboratory weathering instruments. The Series is approved by many OEMs in the textiles, paints & coatings and plastics industries as the exclusive platform to deliver accurate, reproducible and repeatable results for predicting service life. The Series has been certified CE, UL, CSA, ISO and EN compliant.

Standards:

AATCC 16-2004：Color Fastness to Light

AATCC TM169：Weather Resistance of Textiles: Xenon Lamp Exposure

ISO 105-B04：Textiles – Tests for Colour Fastness – Part B04: Colour Fastness to Artificial Weathering: Xenon Arc Fading Lamp Test

M & S C9：Marks & Spencer C9

M & S C9A：Marks & Spencer C9A

GB / T 8427：Textiles – Tests for Colour Fastness – Colour Fastness to Artificial Light: Xenon Arc

Features:

◆ Xenon Lamp Cooling System-The Series is equipped with a new,ground-breaking xenon lamp cooling system that dramatically reduces the amount of cooling water used.

◆ Rotating Sample Rack-Rotating rack delivers the best exposure uniformity

◆ Control system - Enhanced control system can handle complex custom programs and simple preprogrammed test, and simple operation page icon is clear and easy to understand ; Irradiation, temperature, humidity programmable step by step change, to meet the various user test requirements.

◆ Intelligent and friendly operating system - intuitive LCD touch interface, full-featured, a variety of languages can be selected; water purity indicator can monitor the input water quality; SmartLight MonitorTM ensures that the lamp is installed correctly.

◆ Irradiance closed-loop monitoring and automatic adjustment, can be calibrated by the irradiance calibration device on a regular basis. Radiation calibration device should be CNAS / A2LA / JAB and other international mutual recognition agency certificate. The calibration mechanism of the calibration device shall be certified by ISO 17025.

Parameters:

Accessories:

1.XenoCal irradiance calibration device for independent irradiance calibration and measurement at the sample plane

2.Auxiliary filter lantern for meeting special test requirements

3.Specimen Holders available to accommodate many sample types

4.LiquiAirTM self-contained xenon lamp cooling system (top or wall mount available)

Test Procedures:

I. Preparation Stage

Add Water

Fill the water tank with deionized water or purified water to ensure test accuracy and stable equipment operation.

Check Equipment

Confirm whether the test chamber is air-cooled or water-cooled. For water-cooled chambers, check the chiller's water flow and water supply.

Check the power cord and terminals for secure connection, checking for aging or damage.

Place Samples

Number the samples one by one and place them on the test rack.

For rotating frame test chambers, clamp the samples onto the rotating frame; for flat-panel chambers, adjust the shelf height to maintain the standard distance from the lamp tube.

II. Setting Parameters

Connect Power

Turn on the power switch. The indicator light will illuminate, indicating normal power supply.

Set Temperature and Humidity

Adjust the temperature and humidity parameters to the desired values using the "∨" or "∧" keys on the touchscreen or control panel.

Set Time

Set the total test duration and illumination duration according to the test requirements using the time display. Use the "Up/Down" keys to adjust and the middle key to confirm.

Other parameters (optional) Set parameters such as rain and air exchange rate as needed, for example, adjust the ventilation volume by rotating the top air valve and air inlet valve.

III. Start the Test

Lamp Preparation** Turn on the "Xenon Lamp Preparation" switch to ensure the xenon lamp can be lit normally.

Ignite the Xenon Lamp** Press the "Lamp" switch to light the xenon lamp; to simulate light changes, turn on the "Light" switch.

Start the Test** After confirming the parameters are correct, click the "Start" button. The test chamber will run according to the set conditions.

IV. Observation and Recording

Observation Inside the Chamber** Observe the sample status through the viewing window. The window filter protects your eyes, but avoid looking directly at the light source.

Record Data** Record the temperature, humidity, light intensity, and changes in the sample's appearance and performance during the test.

V. End and Cleanup

Shut Down the Equipment** After the test, the test chamber will automatically stop, turn off the xenon lamp and power switch, and disconnect the power supply.

Remove the Sample** Open the chamber door and remove the sample for subsequent testing and analysis.

Cleaning and Maintenance: Clean any residue inside the tank and keep it dry; if the tank is to be out of use for an extended period, drain the water tank, ventilate and dry it before closing the door.
