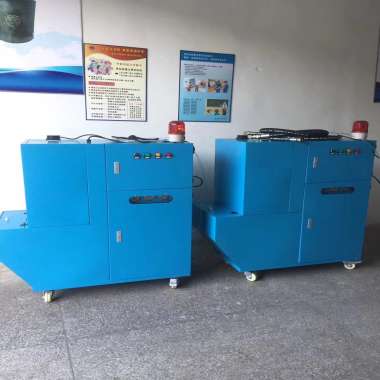

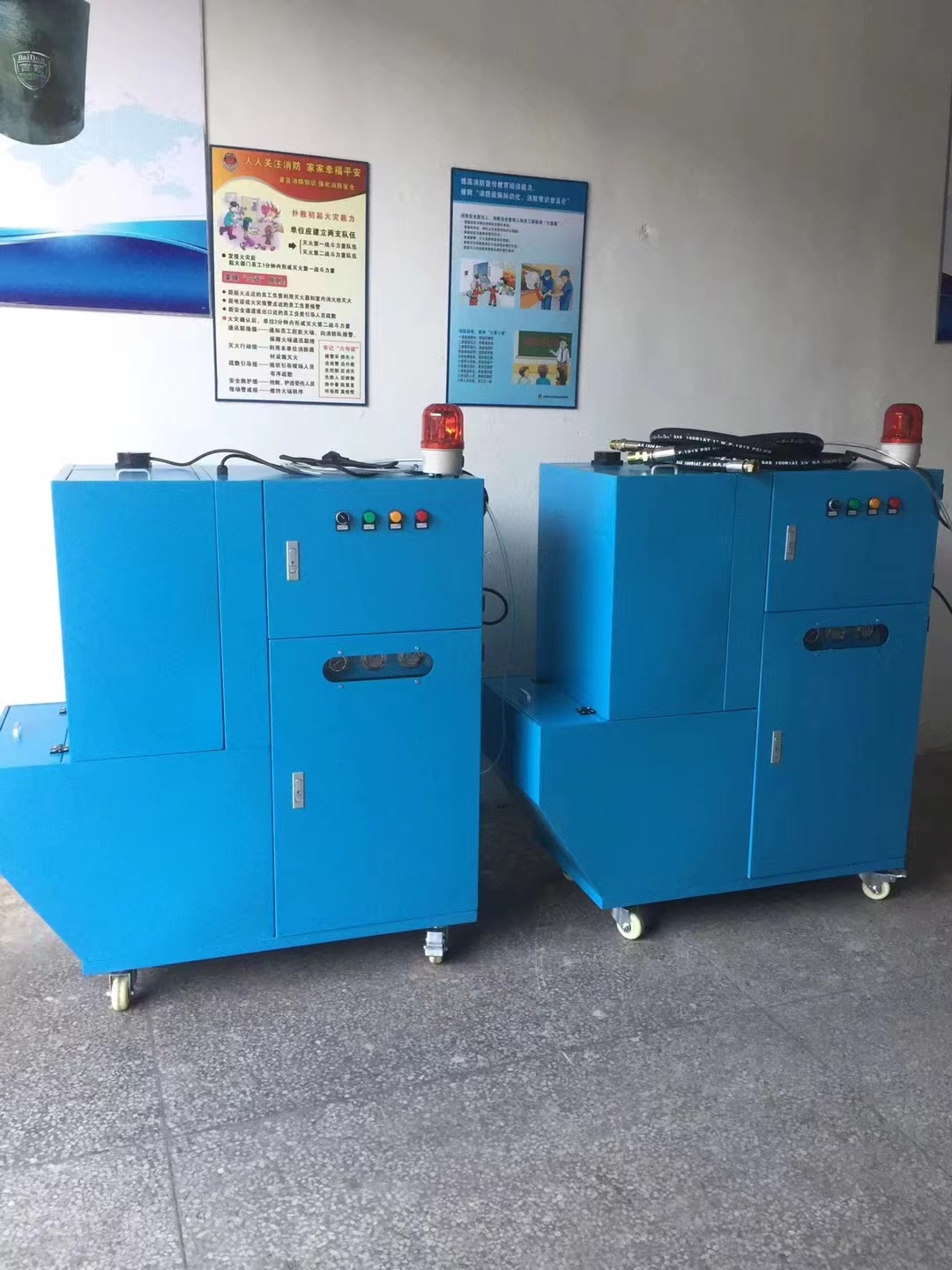

Mold Release Agent Proportioner

Die casting mold release agent proportioning machine

1. Effectively save the consumption of mold release agent, reduce the cost for customers.

2. It is easy to use and saves manual dilution and dosing for customers.

3. This product has automatic alarm device, in the proportioning room of the liquid reaches the set position, the automatic proportioning device will automatically start, add material.

4. The ratio of proportioning can be set at will.

Performance characteristics

1. the main accessories and electrical components are imported, low failure rate, long service life

2. Adopting automated proportional valve to control the ratio of chemicals and water, which can automatically adjust the humidity with the size of flow. It ensures the accuracy and stability of the proportion of the mixture, and the adjustable range of dilution is 50-500 times optional.

3. It can be used as general agent mixing and special agent mixing.

4. stainless steel mixing tank, intelligent liquid level detection system, automatic alarm when the liquid level of mold release agent is lower than the set value, more humanized and safer.

5. Adopting bubble type automatic stirring to make the mixing liquid mix evenly.

6. adopts imported pneumatic diaphragm pump, automatic constant pressure output mixing liquid.

Function

1. when the mixing liquid is at the lower limit, the proportional valve and water valve will open automatically and start to replenish the mixing liquid until the level of the mixing liquid returns to the upper limit.

2. When the original liquid is exhausted, the yellow indicator light is on, the warning light is on, and the proportional valve and water valve open automatically. Normal operation can not be resumed until the original liquid is replenished.
