Testing StandardsANSI/BIFMA X5.1-2017 11;12SpecificationCylinder Stock250mmHorizontal Forc
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
ANSI/BIFMA X5.1-2017 11;12
| Cylinder Stock | 250mm |
| Horizontal Force | 20N |
| The engine power | About 20W |
| Loading Position | 60mm away from the front of center of the seat surface |
| Seat Compression plate | Diameter 200mm,arc surface300mm |
| Machine Dimension | 1350 mmx1000mmx1850mm (L * W * H) |
| Test Area | 780mm*740mm(L*W) |
| Main test items | Office chair forward and backward stability test |
| Loading Weight | Forward stability: European standard 60kg, American standard 61kg; |
| Rear stability weight:130kg |

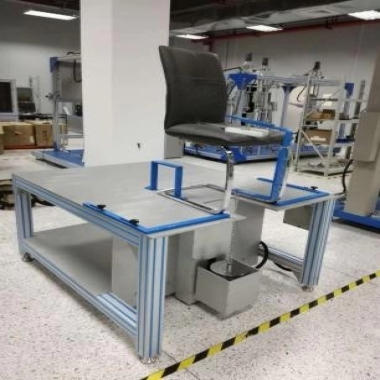

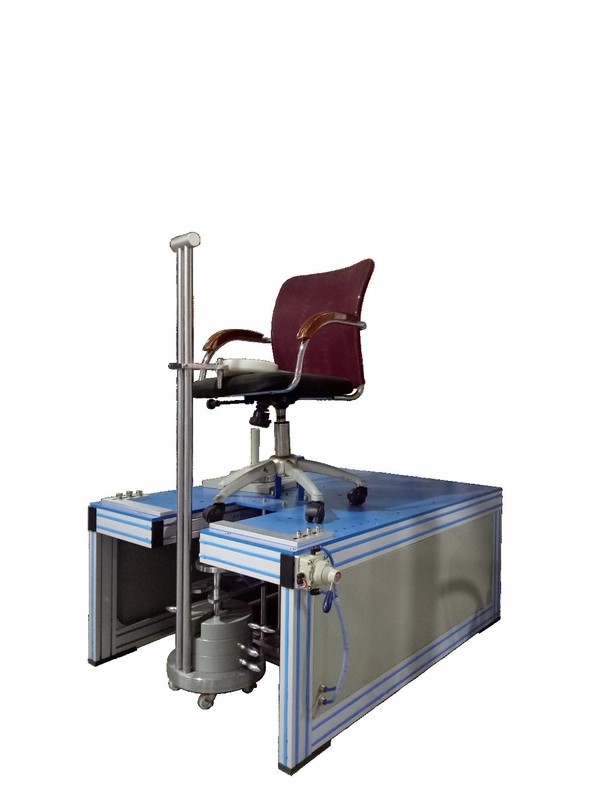

The purpose of these tester is to evaluate the front and rear stability of chairs.
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
