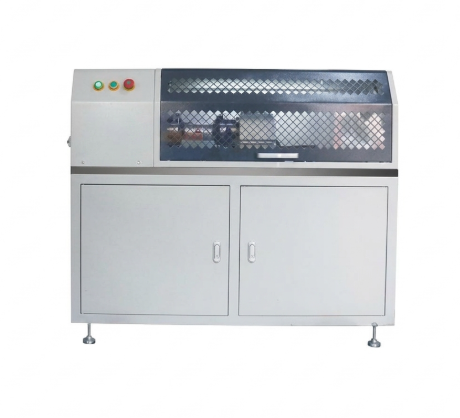

The Fully Automatic Torque Testing Machine is mainly used to evaluate the torsional strength, torque resistance, stiffness, fatigue durability, and torsional angle of various materials and components. It is suitable for metal and non-metal materials, automotive parts, rubber parts, bushings, shafts, tools, springs, wires, fasteners, welded parts, connectors, and other products. The machine can generate detailed A4 test curves, while test reports can be stored, copied, and edited. Standard models are generally available from stock.
The machine is suitable for torsional performance testing of:
(1) Metal and non-metal materials
(2) Automotive components and rubber parts
(3) Bushings and various shafts
(4) Drive shafts, axle shafts, half shafts, rotating shafts, torque shafts, and camshafts
(5) Axles and universal shafts
(6) Tools and springs
(7) Wires and fasteners
(8) Welded parts and connectors
GB/T 2611 – General Technical Requirements for Testing Machines
| Parameter | Specification |
|---|---|
| Test Torque | 1, 50, 100, 1000, 2000, 5000 Nm; 10000–50000 Nm customizable |
| Testing Machine Grade | Class 0.5 / Class 1 |
| Torque Measurement Range | 1%FS–100%FS |
| Torque Resolution | 0.001–0.01 N·m |
| Torque Loading Direction | Forward and reverse |
| Torsional Speed Control Range | 0.1°–720°/min, customizable |
| Torque Resolution | 1/±300000 |
| Angular Measurement Range | 0°–±365° |
| Test Stroke | 300–3000 mm, customizable |
| Repeatability Error | <0.5% |
| Torque Indication Error | <±0.5% / <±1% |
| Angular Indication Error | <±0.5% |
| Loading Method | Fully automatic |
| Torsion Fixtures | Customizable |
| Power Supply | 220V, 50Hz |
| Equipment Weight | Approx. 200 kg |
| Appearance | Complies with GB/T 2611 |
| Completeness | Complies with relevant standard requirements |
| Protection | Overload protection |
(1) Fully Automatic Testing – Automatically controls the loading and testing process.
(2) Wide Application Range – Suitable for materials, automotive components, shafts, fasteners, welded parts, and other products.
(3) Curve Generation – Provides detailed test curves for evaluating torsional performance.
(4) Test Report Management – Supports test report storage, copying, and editing.
(5) Customizable Fixtures – Fixtures can be configured according to different specimen structures and testing requirements.
(6) Overload Protection – Helps protect the testing machine during operation.
