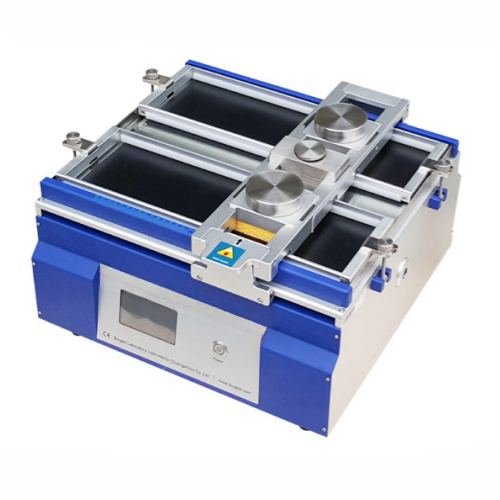

Multifunctional Washability Tester

The Multifunctional Washability Tester is a versatile abrasion testing instrument designed to evaluate the wear resistance of coatings, paints, and surfaces. By changing different friction heads, it meets all linear reciprocating abrasion test standards, including wet washability, sponge abrasion, stain resistance, solvent wipe resistance (alcohol, MEK), scouring pad resistance, and dry rubber abrasion. The instrument features full touchscreen operation, allowing operators to set test parameters directly and monitor the testing process in real time, ensuring convenience and ease of use.

Application

(1) Architectural coatings manufacturers – evaluate paint durability and washability.
(2) Quality control laboratories – ensure compliance with national and international coating standards.
(3) Research and development – test new coatings, varnishes, and decorative materials.
(4) Industrial product testing – assess stain resistance and abrasion performance of surfaces.
(5) Educational and certification institutions – training and demonstration of coating durability testing.

Standards

(1) GB/T 9266 – Determination of Washability of Coatings
(2) GB/T 9780 – Test Method for Stain Resistance of Coatings
(3) GB/T 23989 – Determination of Solvent Resistance of Coatings
(4) GB/T 31410 – Evaluation of Wet Scrub and Cleanability of Paints and Varnishes
(5) GB/T 1770 – Determination of Sanding Properties of Paint and Putty Films
(6) GB/T 7706 – Relief Decorative Printing
(7) ISO 11998 – Determination of Wet Scrub and Cleanability of Paints and Varnishes
(8) ASTM D 2486 – Test Method for Washability of Wall Paints
(9) ASTM D 3450 – Standard Test Method for Washability of Interior Wall Coatings
(10) ASTM D 4213 – Standard Test Method for Abrasion Loss of Coatings
(11) ASTM D 4828 – Standard Test Method for Washability of Organic Coatings
(12) ASTM D 7835-19 – Mechanical Friction Method for Solvent Resistance of Organic Coatings
(13) DIN EN 13300 – Paints and Varnishes – Water-based Coatings for Interior Walls and Ceilings

Parameters

Features

(1) Dual working channels, each with independent wash medium containers, allowing simultaneous dry and wet friction tests or different media tests.
(2) Stepless adjustable friction speed and stroke to accommodate various test requirements.
(3) Push-rod type friction arms ensure stable and uniform operation for reliable results.
(4) Wash medium flow is adjustable and precisely controlled via peristaltic pumps.
(5) Quick and convenient installation of test panels and interchangeable friction heads.
(6) Main frame and components made of aluminum alloy, ensuring durability and aesthetic design.
(7) Compatible with 110V/220V and 50Hz/60Hz power supply.

Accessories

(1) Interchangeable friction heads for various test standards.
(2) Wash medium containers (500 ml × 2).
(3) Touchscreen control panel with software interface.
(4) Sample holders for test panels.
(5) Instruction manual and calibration guide.

Test Procedures

(1) Install the test panel in the sample holder.
(2) Select the desired friction head and set the wash medium container as required.
(3) Set operating parameters: speed, stroke, number of cycles, and wash medium flow.
(4) Start the test via the touchscreen interface.
(5) Observe the operation and monitor the parameters throughout the test.
(6) Upon completion, remove the test panel and record the results according to the relevant standard.

Maintenance Information

(1) Clean the friction heads and wash medium containers after each test to prevent residue accumulation.
(2) Periodically check the peristaltic pumps and tubing for wear or blockages.
(3) Inspect mechanical components for wear or damage.
(4) Calibrate the speed and stroke mechanisms regularly to maintain accuracy.
(5) Store the instrument in a dry, ventilated environment and avoid exposure to corrosive chemicals.

Conclusion

The Multifunctional Washability Tester provides accurate and reliable abrasion and washability testing for coatings, paints, and other surfaces. Its dual-channel design, adjustable parameters, and touchscreen operation make it ideal for production, quality control, and R&D, ensuring compliance with national and international standards.

FAQ

(1) What is this product?
It is an abrasion and washability testing instrument for coatings and painted surfaces.

(2) What is this product used for?
It evaluates surface durability, stain resistance, wet/dry washability, and solvent resistance of coatings.

(3) What is the working principle of this product?
A friction head applies controlled linear reciprocating motion to a coated sample under specific speed, stroke, and wash medium conditions to simulate wear and cleaning processes.

(4) Why is this product important?
It ensures coatings and surfaces meet durability and cleanability standards, supporting product quality and compliance.

(5) What industries is this product suitable for?
Coating manufacturers, interior and exterior paint production, quality control laboratories, R&D institutions, and surface material testing organizations.
