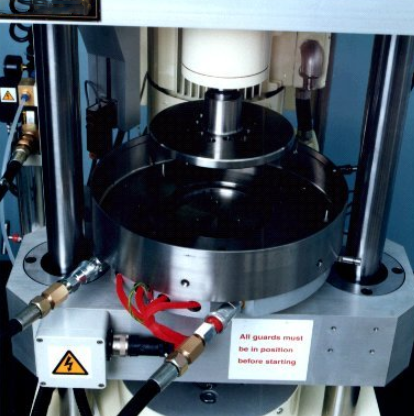

The Automated Clutch Friction Test Machine is a laboratory test system designed to evaluate friction, wear behavior, and thermal performance of wet clutch friction components under controlled load, speed, and lubrication conditions. The machine operates using a single original-manufactured friction pair, allowing detailed analysis of friction characteristics that cannot be obtained from full clutch pack or small-scale specimen testing.
The system supports precise speed control, closed-loop load application, temperature regulation, and automated data acquisition, making it suitable for standardized clutch friction research and comparative performance evaluation.
The Automated Clutch Friction Test Machine is used for the following applications and components:
Wet clutch friction plate friction coefficient and torque characterization
Wear and durability evaluation of clutch friction materials
Engagement and disengagement behavior analysis under cyclic loading
Testing of small-scale friction components such as thrust washers
Friction performance assessment of limited-slip differential components
Evaluation of synchronizer and torque converter friction elements
Lubricant and friction material development and validation
Thermal behavior and heat dissipation studies of friction interfaces
Research, development, and quality control in automotive and transmission industries
GB/T 13986 — Determination of Friction Characteristics of Automotive Wet Clutches
JASO M349 — Test Method for Wet Clutch Performance
ISO 6312 — Automotive Clutch Friction Performance Testing
SAE J2491 — Clutch Friction and Wear Test Method
ASTM D3703 — Determination of Friction Properties of Friction Materials
| Item | Technical Parameters |
|---|---|
| Friction pair size | Mean friction radius 35–125 mm |
| Maximum specimen diameter | 286 mm |
| Small specimen friction radius | 15 mm |
| Speed control ratio | 100:1 |
| Drive motor | AC motor, 4 kW, encoder feedback |
| Load range (low load) | 50 – 1,000 N |
| Load range (high load) | 250 – 10,000 N |
| Load actuation | Pneumatic bellows, closed-loop control |
| Torque measurement | Strain gauge torque transducer |
| Maximum torque | 180 Nm |
| Torque arm radius | 187 mm |
| Heating method | Electrical resistance heating |
| Heating power | 3 kW |
| Temperature range | 40 – 200 °C |
| Temperature sensor | Type K thermocouple |
| Cooling method | Circulating heat transfer fluid |
| Cooling flow rate | Up to 4 L/min |
| Controlled parameters | Speed, load, temperature, test duration |
| Measured parameters | Speed, load, friction torque, temperature, friction coefficient, time |
| Power supply | 380/415 V, three phase, 50/60 Hz |
| Compressed air | 4 cfm @ 8 bar |
| Cooling water | 10 L/min (typical) |
| Machine dimensions | 600 × 800 × 1,000 mm |
| Machine weight | 400 kg |
(1) Single friction pair test configuration enabling detailed friction characterization
(2) Wide speed control range with stable operation down to zero speed
(3) Closed-loop pneumatic load application with force feedback
(4) Modular clamping system accommodating different clutch plate diameters and spline types
(5) Integrated heating and cooling for controlled thermal test conditions
(6) Accurate friction torque measurement independent of load application
(7) Automated test sequencing and continuous data recording
(8) Safety protection including mechanical overload limitation and software alarms
Operate the CLUTCH TESTING MACHINE by mounting single or dual clutch setups and configuring test parameters through the digital touchscreen. Designed for evaluating torque, endurance, and performance, it supports both routine assessments and advanced analyses. Astounding adaptability ensures usage across automotive R&D labs, industrial manufacturing, and quality control divisions, extending its applicability to multi-plate clutch types and varied specimen sizes.
(1) Modular clutch plate clamping system for different diameters and spline geometries
(2) Pneumatic load application assembly with force transducer
(3) Temperature sensors for lubricant and specimen surface monitoring
(4) Heat transfer fluid circulation module for cooling
(5) Electrical resistance heating elements
(6) Safety guarding and mechanical overload protection components
(7) PC-based control and data acquisition system
(1) Install the friction components using the appropriate modular clamps
(2) Fill the test bath with the specified volume of lubricant
(3) Set test parameters including speed profile, load level, temperature, and duration
(4) Activate heating or cooling to reach the target test temperature
(5) Apply load gradually using the pneumatic loading system
(6) Start the test sequence and record friction torque, speed, temperature, and load
(7) Monitor test conditions and stop the test if alarm thresholds are exceeded
(8) After completion, unload the specimen and perform wear inspection and data analysis
Regularly inspect pneumatic components, seals, and load actuators for leaks or wear.
Clean the test bath, clamps, and lubrication passages after each test series.
Verify calibration of torque, load, and temperature sensors at scheduled intervals.
Ensure electrical connections, safety guards, and emergency stop functions operate correctly.
Disconnect electrical, pneumatic, and fluid supplies before performing maintenance.
The Automated Clutch Friction Test Machine provides a controlled and repeatable platform for evaluating friction, wear, and thermal behavior of wet clutch components using original-manufactured friction pairs. By combining precise speed control, closed-loop loading, and temperature regulation, the system supports standardized testing, material development, and performance comparison across a wide range of automotive friction applications.
Q: How do I operate the CLUTCH TESTING MACHINE effectively?
A: Begin by securely mounting the clutch specimen, setting your desired test parameters via the intuitive digital touchscreen, and selecting applicable cycles. The semi-automatic system and PLC control streamline operation for accuracy and safety.
Q: What clutch types and sizes are compatible with the machine?
A: The machine supports single, double, and multi-plate clutches with diameters ranging from 150 mm to 300 mm, accommodating a variety of automotive clutch testing requirements.
Q: Where can this machine be used most effectively?
A: This model excels in automotive research and development centers, industrial manufacturing units, and quality assurance laboratories that demand precise clutch performance and durability evaluation.
Q: What is the process for logging and exporting test data?
A: Test data is logged automatically throughout each run and can be printed directly via the integrated printer or exported to external systems using USB or RS232 interfaces for further analysis.
Q: What are the main benefits of using this equipment for clutch testing?
A: Its high accuracy, programmable cycles, rapid response, and comprehensive safety measures ensure reliable results, boosting overall productivity and quality in automotive testing and manufacturing.
