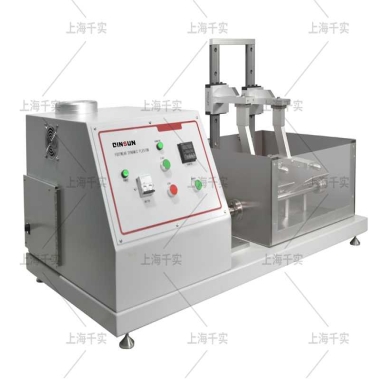

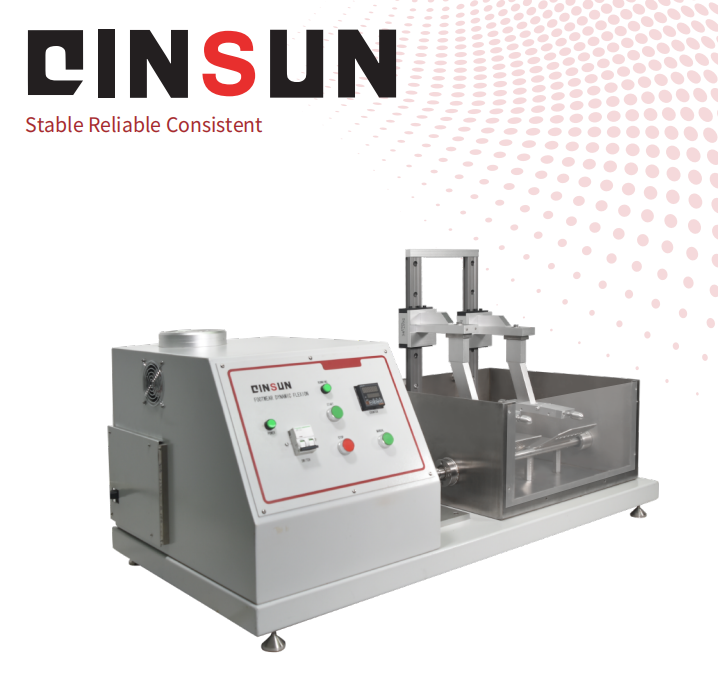

Shoe Sole Bending Tester
Applications：The Footwear Flection Tester is designed to assess the flexing endurance of overall fo
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Content
Application
- Footwear Manufacturing: Predicts degumming, cracking, or sole separation in sports shoes, casual shoes, and work boots.
- Quality Control: Validates compliance with international footwear safety standards.
- Research & Development: Assesses material performance and design improvements for sole structures.
- Testing Laboratories: Provides data for Satra-certified footwear performance reports.
Standard
- SATRA TM92: Flexing Resistance of Footwear Soles
- SATRA TM77: Water Penetration Resistance for Footwear
Product Advantages
- Realistic Bending Simulation: Up to 50° flexion angle mimics natural foot movement.
- Automatic Cycle Control: Preset 1–999,999 cycles with auto-stop and inspection prompts.
- Dual-Station Testing: Simultaneously tests two samples for efficiency.
- Adjustable Testing Conditions: Dry/wet methods and variable angles (10°–45°).
- Safety First: Hinged protective cover with safety interlocks prevents accidental contact.
- Corrosion-Resistant Build: Stainless steel fixtures ensure long-term reliability.
Product Features
- Precision Flexing Mechanism: Curved rod fixation for heel-to-toe bending motion.
- Five Interchangeable Toe Clamps: Accommodates diverse shoe sizes (0.5–20 cm adjustable).
- Water Immersion Option: Extendable water tank for high-boot testing (water depth up to metal ring).
- Digital Counter: Tracks cycles and triggers auto-stop at preset values.
- Easy Sample Handling: Quick-release clamps for rapid setup.
- Mirror Observation System: Top-mounted mirror enables real-time wear monitoring.
Technical Parameters
| Parameter | Specification |
|---|
| Test Mode | Automatic (PLC) |
| Test Speed | 140 ±10 cycles/minute |
| Workstations | 2 (Independent) |
| Bending Angle Range | 10°, 15°, 20°, 25°, 30°, 45° (Adjustable) |
| Fixture Material | Stainless Steel (Corrosion-Resistant) |
| Clamp Adjustment Range | 0.5 cm – 20 cm (Customizable) |
| Test Methods | Dry / Wet (Water Immersion) |
| Power Supply | AC 220V ±10%, 50Hz |
| Dimensions (L×W×H) | 850 mm × 600 mm × 900 mm |
| Net Weight | 55 kg |
| Safety Cover | Hinged Protective Cover with Sensor Interlock |
