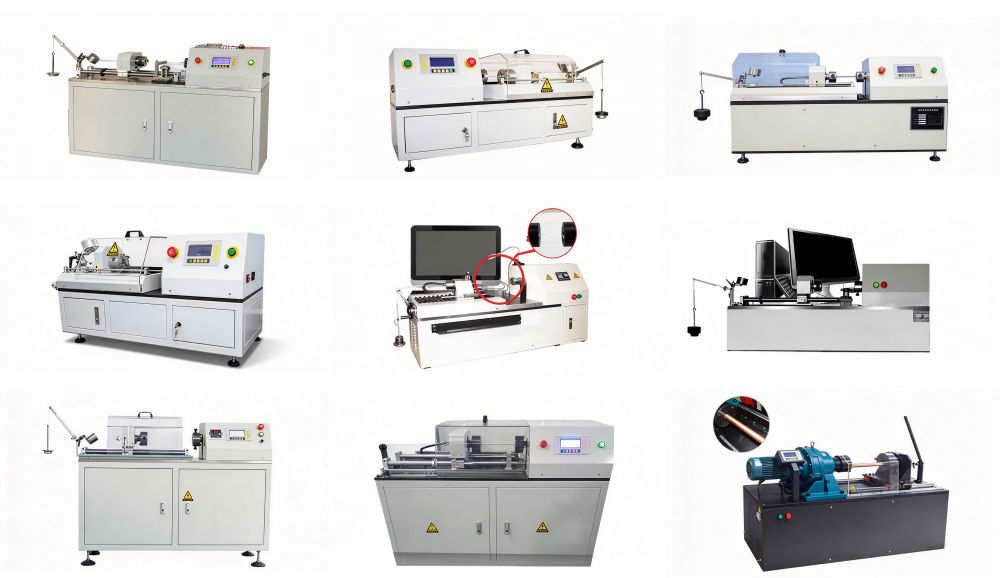

The Metal Wire Torsion Testing Machine is designed to determine the ability of metal wires—with diameters ranging from 0.05 to 30 mm—to withstand plastic deformation during simple or reverse torsion, and to reveal surface or internal defects in the wires.
Simple Torsion: The specimen is twisted until a specified number of rotations is reached or until it fractures; this can be used for either compliance testing or destructive testing.
Reverse Torsion: The specimen is twisted for a specified number of rotations, then rotated in the opposite direction for the same number of rotations, or until it fractures.

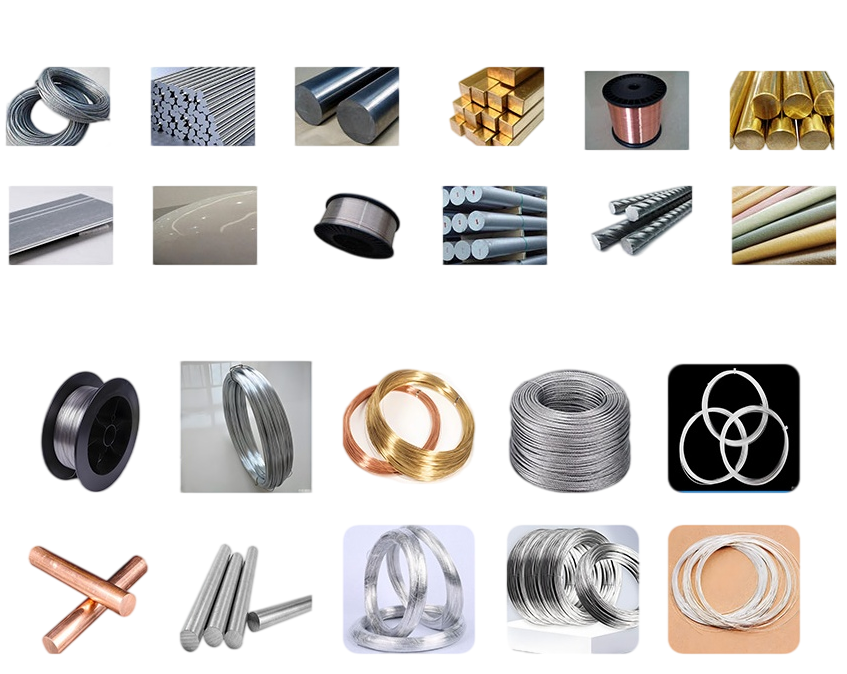

Ferrous metal wires/rods: steel wire, steel rods, steel reinforcing bars (rebar), etc.;
Copper-based metal wires/rods: copper wire, copper rods, copper alloys, etc.;
Aluminum-based metal wires/rods: aluminum wire, aluminum rods, aluminum alloys, etc.;
Other wire/rod-like materials: various metal rods, fiberglass-reinforced plastic (FRP), microfiber strands, alloy steel, etc.
ISO 7800 Metallic materials - Wire - Simple torsion test
ISO 9649 Metallic materials - Wire - Reverse torsion test
ISO 7802 Metallic materials - Wire - Wrapping test
GB/T 239.1 Metallic materials—Wire—Part1：Simple torsion test
GB/T 239.2 Metallic materials—Wire—Part 2: Reverse torsion test
GB/T 4909.4 Test methods for bare wires - Part 4: Torsion test
GB/T 2976 Metallic materials - Wire - Wrapping test
| Model | STD-1 | STD-3 | STD-6 | STD-10 | STD-20 | STD-30 | Note |
| Clampable metal wire diameter | Φ0.05mm-Φ0.5mm or Φ0.1mm-Φ1mm | Φ0.1mm-Φ3mm | Φ1mm-Φ6mm | Φ1mm-Φ10mm | Φ10mm-Φ20mm | Φ10mm-Φ30mm | Customizable |
| Gauge length between grips | 550mm (customizable) | 550mm (customizable) | 550mm (customizable) | 550mm (customizable) | 550mm (customizable) | 550mm (customizable) | |
| Max counter capacity | 999.9 | 999.9 | 999.9 | 999.9 | 999.9 | 999.9 | |
| Speed error | <±5% | <±5% | <±5% | <±5% | <±5% | <±5% | |
| Minimum reading of turns | 0.1 turn | 0.1 turn | 0.1 turn | 0.1 turn | 0.1 turn | 0.1 turn | |
| Torsion Speed | 0.25, 0.5, 1, 1.5, 2, 3, 5 r/s | 0.25, 0.5, 1, 1.5, 2, 3, 5 r/s | 0.25, 0.5, 1, 1.5, 2, 3 r/s | 0.25, 0.5, 1, 1.5, 2 r/s | 2-6 r/min | 2-6 r/min | |
| Jaw hardness (HRC) | 55~65 | 55~65 | 55~65 | 55~65 | 55~65 | 55HRC or >20HRC of sample | |
| Guide rail parallelism (mm) | <0.2 | <0.2 | <0.2 | <0.2 | <0.2 | <0.2 | |
| Jaw coaxiality | <Φ0.4 | <Φ0.4 | <Φ0.4 | <Φ0.4 | <Φ0.4 | <Φ0.4 | |
| Approx. weight of test bench | 60KG | 80KG | 200KG | 220KG | 220KG | 800KG | |
| Power supply | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz | |
| Clamping range | 10-30mm | ||||||
| Jaw / fixture outer diameter | 180mm |
Electromagnetic Wire Torsion Testing Machine is specifically designed for conducting torsion tests on materials such as metallic electromagnetic wires and enameled wires. It is suitable for a wide range of sectors, including metrology and quality inspection, metallurgy, automotive, aerospace, nuclear industry, defense, and construction materials. Furthermore, it is particularly well-suited for teaching material torsion in science and engineering universities, as well as for supporting scientific research in the field of material torsion.
