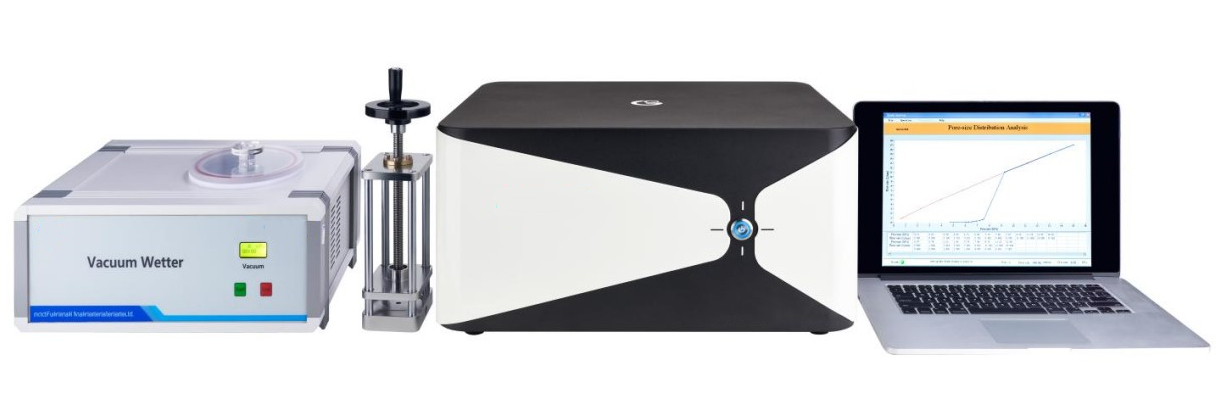

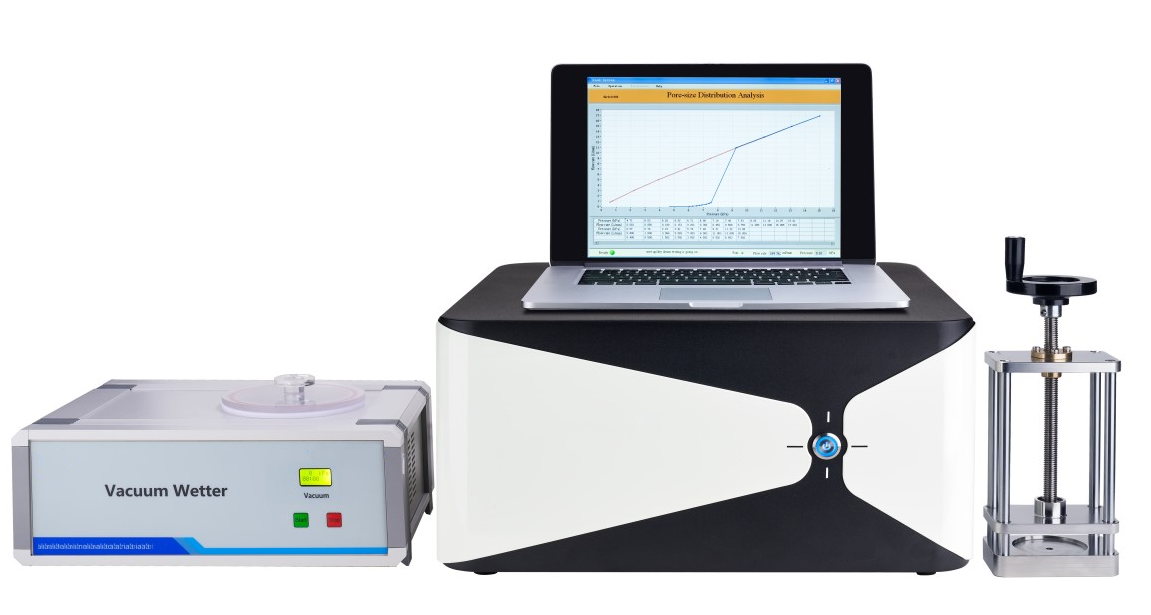

Full-automatic Filter Membrane Pore Size Analyzer

The membrane pore size analyzer precisely measures parameters such as bubble point pressure, maximum pore size, mean pore size, most probable pore size, and gas permeability for various microfiltration membrane materials. It visually presents pore size distribution via charts, detects sample defects, and estimates filtration precision.

Applications

It can determine the pore size distribution of a wide range of filtration materials—including filter paper, fuel cell carbon paper, metal felt, metal mesh, porous ceramics, polymer membranes, non-woven fabrics, asbestos cloth, and sintered glass—with fully automated testing and data acquisition.

Test Methods

Bubble pressure method (also known as the capillary flow method or gas-liquid displacement method), liquid-liquid displacement method.

Standards

ASTM F316 Standard Test Methods for Pore Size Characteristics of Membrane Filters by Bubble Point and Mean Flow Pore Test

ASTM D6767 Standard Test Method for Pore Size Characteristics of Geotextiles by Capillary Flow Test

GB/T 32361 Test methods for pore size properties of membrane filters—Bubble point and mean flow pore test

Technical Parameters

Instrument Functions

1. Bubble point pressure testing

2. Gas flux testing and gas permeability testing

3. Pore throat size testing (maximum, average, and most probable)

4. Pore orifice size testing (maximum, average, and most probable)

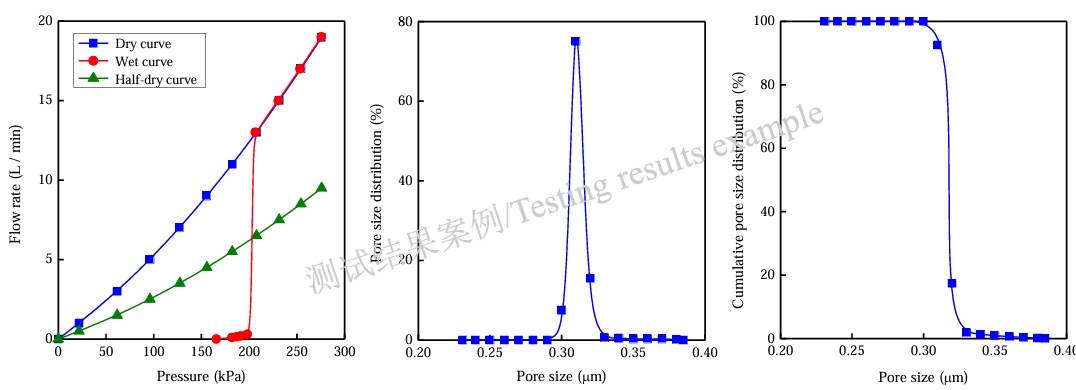

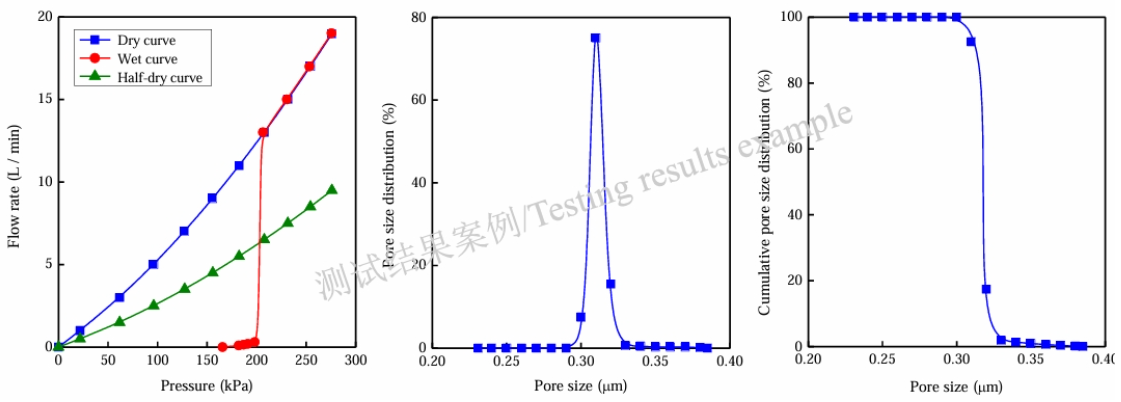

5. Pore size distribution testing

Instrument Features

1. Capable of measuring both "pore throat" sizes and surface "pore opening" sizes

2. Bilingual (Chinese/English) interface; fully automated computer control and analysis system

3. Comprehensive data processing software

4. Independently developed video analysis system for pore distribution

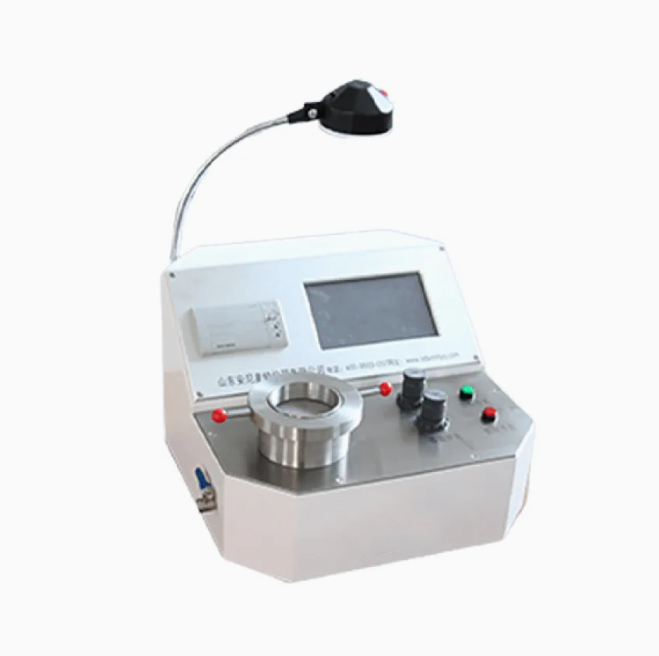

Related Product：Membrane Pore Analysis Tester
