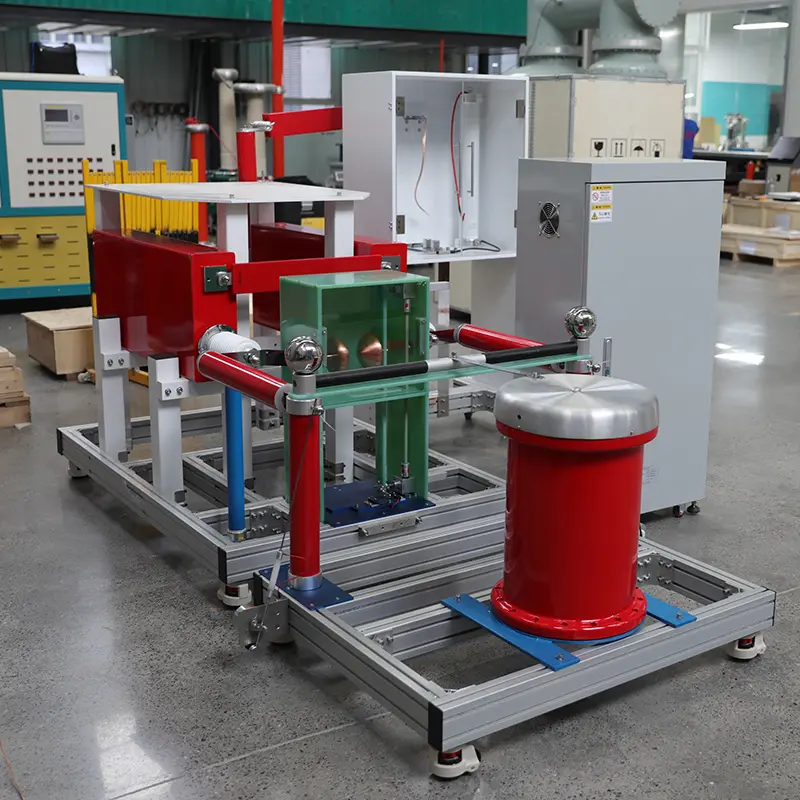

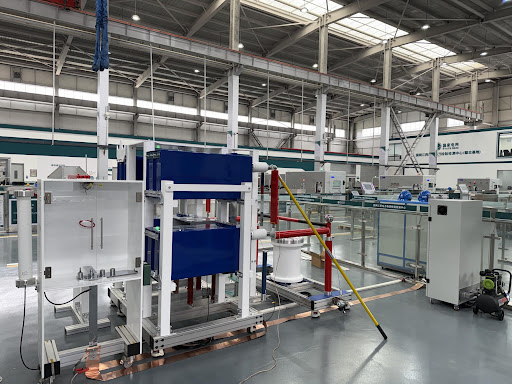

8/20 & 10/350 Impulse Current Test System

ICTS 8/20&10/350 Impulse Current Test System is a special test machines, it can output 8/20μs, 10/350μs current wave. The test system is used for carrying VPR Test， Residual Voltage Test, ClassⅠ and Class Ⅱ Classification Test, Operating Duty Test and so on.

Application

SPD, varistors, GDT;

Lightning rod;

Lightning protection system components;

Other lightning protection devices.

Standards

The test system contends the requirements of IEC 61643, UL 1449 and IEC 61160 standards.

GB11032-2000

IEC 61643-1:1998

GB18802.1-2002

IEC 61643-1-1998

Technical Parameters

Features

Easy operation with the automatic control based on PLC module;

Reliable and precise triggering unit by pulse amplifier;

Automatical polarity change;

Liquid insulation in the impulse capacitors is made of castor oil which offers optimal environmental compatibility (no PCB’s). The impulse capacitors have very low inductance, high quality and long service life.

Protective earthing system, earthing rod and emergency button, gate interlock for personnel and equipment safety;

Maintenance Information

Impulse Current Test System (ICTS) maintenance requires routine cleaning, inspections, component-specific checks, and annual calibrations to ensure high-voltage testing accuracy and operator safety. Routine upkeep prevents internal arcing, extends capacitor life

FAQ

1.What is this product?

You are using an 8/20 & 10/350 Impulse Current Test System, a testing device designed to generate standardized impulse current waveforms for evaluating the surge current withstand capability and lightning protection performance of electrical and electronic products.

2.What is this product used for?

You can assess the resistance, durability, and operational reliability of components, surge protective devices, and electrical systems under simulated lightning current and transient overcurrent conditions using both 8/20 μs and 10/350 μs waveforms.

3.Why is this product important?

It allows you to reproduce realistic lightning and surge environments in a controlled laboratory setting, helping verify product safety, compliance with international standards, and long-term performance before field deployment.

4.What industries is this product suitable for?

You can use it in surge protection device manufacturing, electrical equipment production, power systems, telecommunications, automotive electronics, renewable energy, research laboratories, and quality assurance testing.

5.What types of this product are available?

You can choose standard 8/20 and combined 8/20 & 10/350 impulse current systems with different current capacities, programmable control functions, multiple source impedance options, and customized configurations to meet various testing standards and application requirements.
