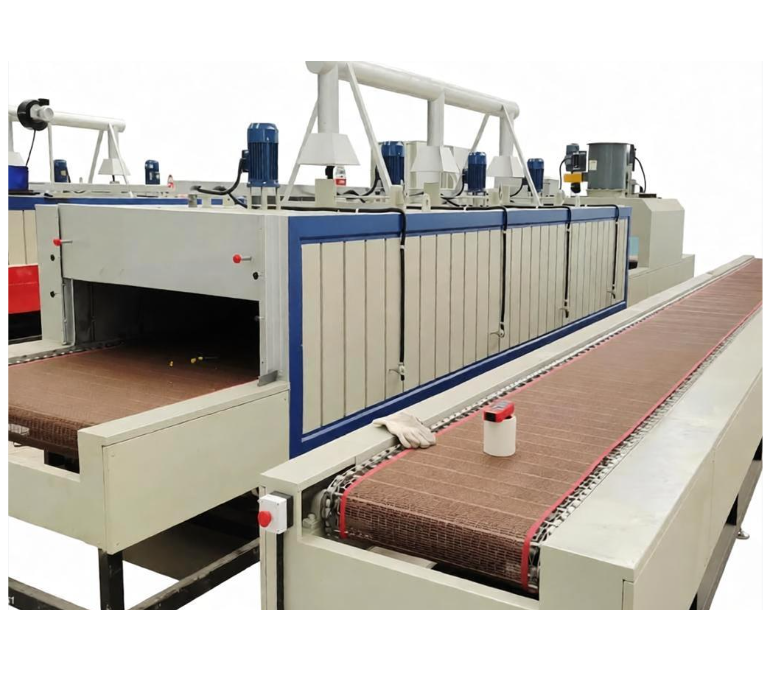

Graphite Plate Bonding Adhesive Drying and Curing Furnace

The graphite plate bonding adhesive drying and curing furnace is an industrial-grade heat treatment equipment specially designed for graphite heat exchangers, graphite bipolar plates, and double-sided bonded graphite components.Through precise temperature control and a uniform hot air circulation system, this equipment accelerates the solvent evaporation of bonding adhesives (such as epoxy resin adhesive and phenolic resin adhesive) and promotes molecular cross-linking curing, ensuring high-strength bonding performance and excellent sealing performance between graphite plates.

Product Applications

Graphite Equipment Manufacturing:

Used for bonding and curing large graphite blocks and plates, such as graphite heat exchangers and graphite absorbers.

New Energy Fuel Cells:

Used for precision and rapid curing of adhesive materials for graphite bipolar plates in hydrogen fuel cells.

Electronic Thermal Management:

Used for drying after bonding high thermal conductivity graphite sheets, thermal conductive graphite films, and metal substrates.

Chemical Anti-Corrosion Equipment:

Used for adhesive curing of anti-corrosion graphite linings and graphite pipe fitting connections.

Product Parameters

Product Features

Precise Temperature Control:

Microcomputer PID precision adjustment prevents adhesive failure or graphite plate cracking caused by local overheating.

High Temperature Uniformity:

Advanced air duct design ensures extremely small temperature differences at all positions inside the furnace, enabling simultaneous curing of large-area graphite plates.

Safe Exhaust System:

Equipped with a low-noise high-temperature resistant exhaust fan to timely discharge volatile organic gases generated during the curing process.

High-Efficiency Thermal Insulation:

Uses high-density aluminum silicate fiber insulation layer. The surface temperature of the furnace body remains close to room temperature, saving energy and reducing power consumption.

Intelligent Program Control:

Supports multi-stage heating, heat preservation, and cooling curve settings, perfectly matching the curing processes of various adhesives.

FAQ

Q1: Can this curing furnace meet the curing requirements of different brands of graphite adhesives, such as high-temperature modified phenolic adhesives and epoxy adhesives?

A1: Yes. The equipment adopts a PLC intelligent control system and supports storage of multiple sets of "heating–holding–cooling" curves. Users can freely set process parameters according to the requirements of different adhesive manufacturers.

Q2: How can the equipment ensure uniform heating when large-area or large-volume graphite plates are cured inside the furnace?

A2: The equipment adopts a powerful multi-blade centrifugal fan combined with a unique left-right/up-down circulating air duct design. The hot air forms a uniform convection airflow inside the furnace, ensuring that the bonding surfaces of every graphite plate are heated simultaneously.

Q3: How are volatile harmful gases generated during adhesive curing treated?

A3: Automatic/manual adjustable exhaust outlets are designed on the top or rear of the furnace and equipped with exhaust fans. The waste gases released during the curing process can be collected and discharged centrally, and the system can be connected to the factory environmental protection exhaust gas treatment system.

Q4: Graphite plates are heavy and fragile. What designs are provided for loading, unloading, and load-bearing capacity?

A4: The furnace bottom can be equipped with heavy-duty rails and loading carts, making it convenient for forklifts or lifting equipment to load and unload materials. The internal stainless steel shelves adopt reinforced structural designs. The load-bearing capacity of each layer and the entire structure can be customized according to the weight of the customer's graphite plates.

Q5: What safety protection measures are available to prevent operator burns or equipment damage?

A5: The equipment is equipped with an independent over-temperature protector (automatic heating cutoff during over-temperature conditions), anti-burn insulation design for the outer shell, fan interlock protection (heating cannot start when the fan is not operating), audible and visual alarms, and safety door locks, providing comprehensive protection for both operators and equipment.
