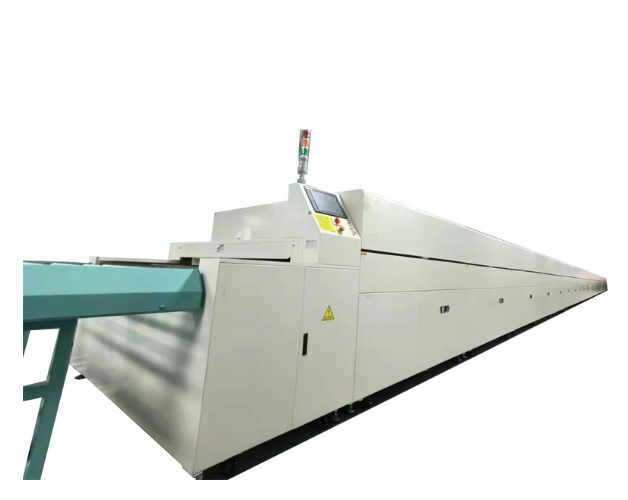

Clean Tunnel Oven G-C168

The Clean Tunnel Oven G-C168 is designed for continuous drying and curing processes requiring a clean production environment. The oven adopts a stainless steel internal structure, clean air circulation design, precise temperature control system, and continuous conveyor operation to ensure stable heating performance and product quality.

With a multi-zone heating structure and Class cleanroom compatibility, this tunnel oven is widely used in electronic components, precision parts, optical products, and other industries requiring low-particle contamination during thermal processing.

Application

The Clean Tunnel Oven G-C168 is suitable for continuous drying, curing, baking, and heat treatment processes in clean production environments.

Typical applications include:

Electronic industry: PCB boards, electronic components, semiconductor-related parts, LCD components, and precision electronic products.

Optoelectronic industry: Optical components, display parts, and precision optical materials.

New energy industry: Battery-related components and precision parts requiring controlled heating environments.

Industrial manufacturing: Adhesive curing, coating drying, ink drying, and material heat treatment.

Cleanroom production: Products requiring low dust generation and stable temperature processing.

Product Parameters

Features

(1) Clean Production Design

The inner chamber is fully argon arc welded, and stainless steel screws are used to reduce particle generation and improve cleanliness.

(2) Stable Continuous Conveying

The conveyor system ensures smooth product transportation without vibration, jamming, contamination, or surface damage.

(3) Multi-Zone Temperature Control

Eight independent heating sections provide stable temperature management for different process requirements.

(4) High Temperature Uniformity

The optimized air circulation structure provides uniform hot air distribution and maintains temperature uniformity within ±3℃.

(5) Energy-Efficient Insulation Structure

The 128K high-density insulation material reduces heat loss and improves energy efficiency.

(6) Intelligent Control System

Equipped with Siemens PLC and touchscreen control, supporting process monitoring and MES integration.

(7) Flexible Conveyor Configuration

The conveyor belt width and specifications can be customized according to customer product requirements.

FAQ

(1) What products can be processed by the Clean Tunnel Oven G-C168?

The Clean Tunnel Oven G-C168 is mainly used for electronic components, precision parts, optical products, and cleanroom manufacturing processes. It can perform continuous drying, curing, coating baking, adhesive curing, and other thermal treatment applications.

(2) How does the G-C168 tunnel oven maintain a clean processing environment?

The oven adopts stainless steel internal construction, fully welded inner chamber design, low-particle conveyor structure, and optimized airflow circulation to reduce dust generation and maintain a cleaner heating environment.

(3) Can the conveyor speed and oven size be customized?

Yes. The conveyor speed, heating zone length, conveyor width, and overall equipment dimensions can be customized according to production capacity, product size, and customer process requirements.

(4) What temperature control system is used in this tunnel oven?

The G-C168 uses an OMRON PID temperature control system combined with SSR solid-state output control. A six-channel temperature recorder monitors temperature changes in each zone and supports USB data export.

(5) Can the Clean Tunnel Oven G-C168 connect with factory automation systems?

Yes. The equipment is equipped with a Siemens PLC control system and Siemens touchscreen interface, and it can be integrated with MES systems for production data management and process monitoring.
