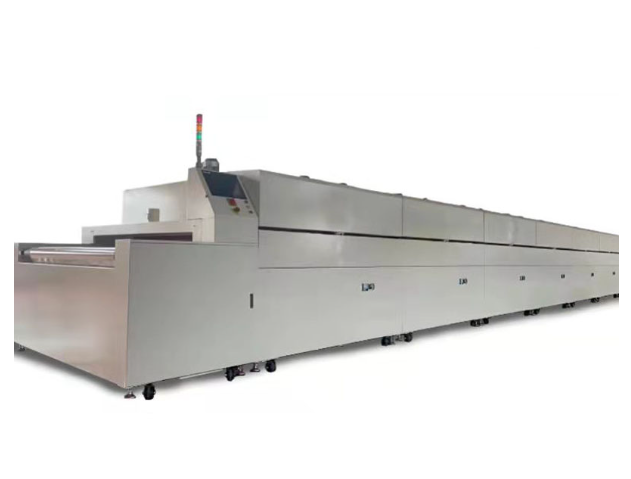

Clean Tunnel Oven G-C1620

The Clean Tunnel Oven G-C1620 is a large-scale continuous conveyor heating system designed for clean production environments requiring long heating zones, stable temperature control, and low particle generation. The equipment adopts a PET-FILM & COVERLEN conveyor belt structure, multi-zone heating design, and vertical hot air circulation system to achieve uniform heating performance during continuous production.

The G-C1620 is equipped with an OMRON PID temperature control system, Siemens PLC control system, touchscreen operation interface, and six-channel temperature recording system. It provides accurate process control and supports MES system integration for automated production management.

Application

The Clean Tunnel Oven G-C1620 is suitable for continuous drying, curing, and thermal processing applications in industries with strict cleanliness requirements, including:

3C electronics manufacturing: drying and curing of electronic components, housings, and precision parts.

PCB industry: adhesive curing, ink drying, and electronic material baking.

LCD and semiconductor-related manufacturing: clean heating and drying processes.

Medical and precision products: thermal treatment requiring low contamination environments.

Industrial automation production lines: continuous heating and curing processes for large-volume production.

Product Parameters

Features

(1) Long Heating Zone Design

The G-C1620 adopts a 20-zone heating structure with a total heating length of 40000mm, suitable for continuous production requiring long thermal processing time.

(2) Clean Production Structure

The inner chamber adopts full argon arc welding, and stainless steel components are used to reduce particle generation during operation.

(3) Stable Conveyor Performance

The PET-FILM & COVERLEN conveyor belt provides excellent temperature resistance and wear resistance, ensuring smooth transportation without product damage.

(4) Uniform Temperature Distribution

The optimized hot air circulation system and multi-zone temperature control ensure stable heating performance throughout the tunnel oven.

(5) Advanced Temperature Management

The OMRON PID temperature controller and six-channel recording system provide real-time monitoring and accurate process control.

(6) Automation Integration Capability

The Siemens PLC control system and touchscreen interface support MES connection for intelligent production line integration.

(7) Energy-Saving Insulation Design

The 128K high-density insulation material effectively reduces heat loss and maintains a lower external surface temperature.

FAQ

(1) What is the application range of the Clean Tunnel Oven G-C1620?

The G-C1620 is designed for continuous drying, curing, and heating processes in clean manufacturing environments, especially for electronics, PCB, precision components, and other industries requiring stable thermal processing.

(2) What is the maximum heating length of the G-C1620 tunnel oven?

The G-C1620 adopts a 20-zone heating structure, with each heating zone measuring 2000mm and a total heating length of 40000mm, suitable for large-scale continuous production.

(3) How does the G-C1620 maintain cleanliness during operation?

The tunnel oven uses a stainless steel internal structure, argon arc welding process, low-friction conveyor support, and particle reduction design to improve cleanliness during heating.

(4) Can the conveyor belt width and heating configuration be customized?

Yes. Conveyor width, heating zone quantity, tunnel length, and other configurations can be customized according to product size, production capacity, and process requirements.

(5) Can the G-C1620 be integrated into an automated factory system?

Yes. The equipment is equipped with a Siemens PLC control system and touchscreen interface and can connect with MES systems for production monitoring and data management.
