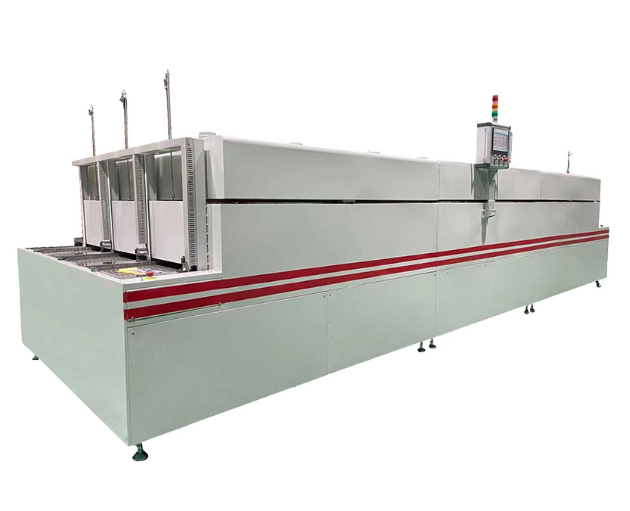

Clean Tunnel Oven G-C153

The Clean Tunnel Oven G-C153 is a continuous conveyor-type drying and curing oven designed for clean production environments. The equipment adopts a three-row parallel conveyor structure with independent control, providing flexible production operation for different product processing requirements.

With a stainless steel inner chamber, optimized hot air circulation system, and precise PID temperature control, the G-C153 ensures stable temperature uniformity and low-particle processing performance. It is suitable for industries requiring clean heating processes, including electronics, precision components, and optical products.

Application

The Clean Tunnel Oven G-C153 is widely used for continuous drying, curing, and heat treatment processes in clean manufacturing environments.

Typical applications include:

Electronic components: PCB components, electronic assemblies, precision electronic parts, and semiconductor-related products.

Optoelectronic products: LCD components, optical parts, and precision display components.

Industrial manufacturing: Adhesive curing, coating drying, ink drying, and material heat treatment.

Precision manufacturing: Products requiring stable temperature control and clean processing conditions.

Cleanroom production: Thermal processing applications requiring reduced dust contamination.

Product Parameters

Features

(1) Independent Three-Row Conveyor Control

The G-C153 adopts a parallel three-row conveyor structure, allowing each conveying line to be controlled independently for flexible production management.

(2) Stable Continuous Conveying

The optimized conveyor structure ensures smooth product movement without vibration, jamming, contamination, or surface damage.

(3) Uniform Heating Performance

The special airflow design provides stable hot air circulation and maintains temperature uniformity within ±3℃.

(4) Clean Processing Structure

The inner chamber is fully argon arc welded, and stainless steel screws are used to reduce particle generation during operation.

(5) Efficient Heat Insulation

The 128K high-density insulation system minimizes heat loss and improves energy efficiency.

(6) Precise Temperature Control

The OMRON PID control system combined with SSR output provides accurate temperature regulation and stable operation.

(7) Intelligent Production Management

Equipped with Siemens PLC and touchscreen control, the oven supports MES system integration for automated production management.

(8) Customized Conveyor Solutions

The conveyor structure and specifications can be adjusted according to different product sizes and production requirements.

FAQ

(1) What is the main application of the Clean Tunnel Oven G-C153?

The Clean Tunnel Oven G-C153 is mainly used for continuous drying, curing, and heating processes in clean production environments. It is suitable for electronic components, precision parts, optical products, coating curing, and adhesive drying applications.

(2) What are the advantages of the three-row conveyor design?

The three-row parallel conveyor system allows each conveyor line to operate independently, improving production flexibility. It is suitable for processing multiple products or different production requirements within the same heating process.

(3) How does the G-C153 maintain temperature uniformity?

The oven uses a top-down hot air circulation structure and PID temperature control system. The airflow design helps maintain stable heat distribution, with temperature uniformity controlled within ±3℃.

(4) Is the conveyor system customizable for different products?

Yes. The conveyor structure, belt specifications, and transportation configuration can be customized according to product dimensions, loading methods, and production capacity requirements.

(5) Can the Clean Tunnel Oven G-C153 be integrated into an automated production line?

Yes. The equipment uses a Siemens PLC control system and Siemens touchscreen interface, with support for MES system connection to achieve production monitoring and data management.
