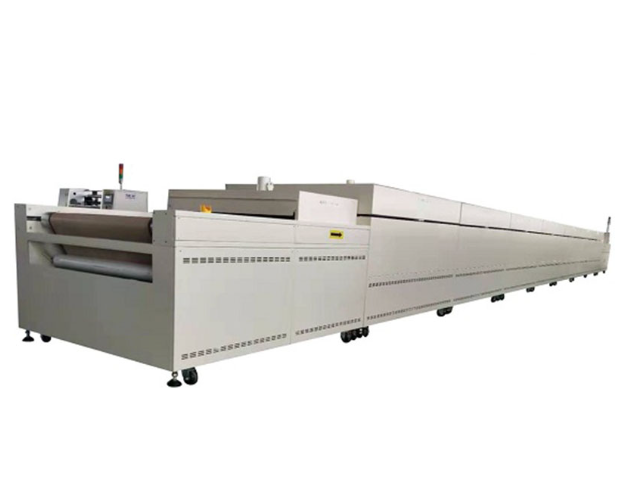

Clean Tunnel Oven G-C106

The Clean Tunnel Oven G-C106 is a continuous conveyor-type drying and curing oven designed for clean production environments. It adopts a multi-zone heating structure, clean airflow circulation design, and precision temperature control system to provide stable thermal processing performance.

The equipment is equipped with a PET-FILM & COVERLEN conveyor belt, Siemens PLC control system, and optimized hot air circulation structure, ensuring smooth product transportation, uniform heating, and reduced particle contamination. It is suitable for cleanroom production processes in electronics, precision manufacturing, and related industries.

Application

The Clean Tunnel Oven G-C106 is widely used for continuous drying, curing, and heat treatment processes requiring a clean environment.

Typical applications include:

Electronic industry: PCB components, electronic assemblies, semiconductor-related parts, and precision electronic products.

Optoelectronic industry: LCD components, optical products, display modules, and precision parts.

New energy industry: Battery-related components and heat treatment processes.

Industrial manufacturing: Adhesive curing, coating baking, ink drying, and material aging treatment.

Cleanroom production: Thermal processes requiring low dust generation and stable temperature control.

Product Parameters

Features

(1) Cleanroom-Compatible Structure

The inner chamber adopts full argon arc welding, with stainless steel screws used throughout the equipment to reduce particle generation.

(2) Large Heating Capacity Design

The G-C106 uses six heating zones with a total heating length of 12000mm, suitable for continuous production requirements.

(3) Stable Conveyor Operation

The conveyor system ensures smooth product transportation without vibration, jamming, contamination, or surface damage.

(4) Uniform Temperature Distribution

The optimized airflow design provides downward hot air circulation, improving heating consistency throughout the oven chamber.

(5) Precise Temperature Control

The OMRON PID temperature controller combined with SSR output provides accurate temperature regulation and stable operation.

(6) Energy-Saving Insulation System

The 128K high-density aluminum silicate insulation material effectively reduces heat loss and improves energy efficiency.

(7) Intelligent Control Capability

Equipped with Siemens PLC and touchscreen operation, the oven supports MES system integration for automated production management.

(8) Flexible Conveyor Configuration

The conveyor belt width, structure, and production parameters can be customized according to different product requirements.

FAQ

(1) What industries use the Clean Tunnel Oven G-C106?

The Clean Tunnel Oven G-C106 is mainly used in electronics, optoelectronics, precision manufacturing, and cleanroom industries. It is suitable for drying, curing, coating baking, adhesive curing, and other continuous heating processes requiring stable temperature and low contamination.

(2) How does the G-C106 reduce dust contamination during operation?

The oven uses a stainless steel inner chamber with full argon arc welding, low-friction conveyor support rollers, and a clean airflow structure to reduce particle generation and maintain a cleaner processing environment.

(3) What is the temperature range of the Clean Tunnel Oven G-C106?

The standard temperature range is 40℃ to 200℃, with normal operating temperatures below 160℃. The temperature uniformity can reach within ±3℃ under stable operating conditions.

(4) Can the conveyor system be customized for different products?

Yes. The conveyor belt material, width, speed, and transportation structure can be customized according to product size, production capacity, and process requirements.

(5) Can the G-C106 tunnel oven be connected to an automated factory system?

Yes. The equipment adopts Siemens PLC and Siemens touchscreen control, and it can be connected with MES systems for production monitoring, process management, and data collection.
