The Clean Tunnel Oven G-C5000 is a high-performance continuous drying and curing system specially de
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

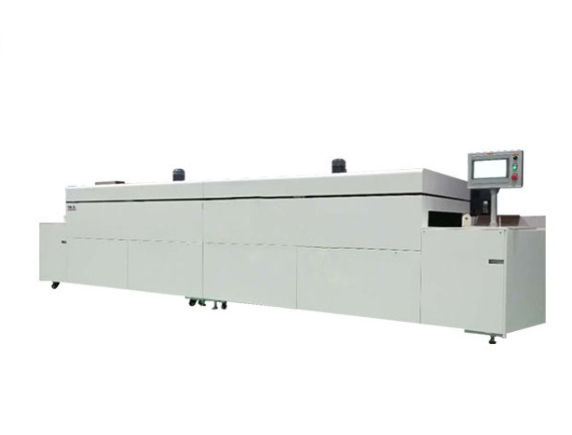

The Clean Tunnel Oven G-C5000 is a high-performance continuous drying and curing system specially designed for 3C electronic products after dispensing and adhesive coating processes. The equipment provides a clean Class 1000 production environment, precise temperature control, and stable conveyor transportation to ensure reliable drying quality and reduce defects during electronic component manufacturing.
The tunnel oven adopts a three-lane independent conveyor structure, multi-zone temperature control, HEPA filtration airflow design, and intelligent PLC touch screen operation. It is suitable for precision electronic products that require dust control, uniform heating, and automated continuous production.
The Clean Tunnel Oven G-C5000 is widely used for drying and curing processes in precision manufacturing industries, including:
3C Electronics Industry
Mobile phone housings
Electronic product shells
Precision plastic components
Electronic assemblies
Adhesive and Dispensing Applications
Glue dispensing curing
Adhesive drying
Electronic encapsulation processes
Protective coating curing
Other Precision Manufacturing
Wire harness components
Control modules
Electronic accessories
Precision industrial parts
Standards & Clean Requirements
FED-STD-209E Cleanroom Classification Standard
GB/T 25915 Cleanroom and Associated Controlled Environment
GB/T 11158 Technical Conditions for Temperature Test Chambers
GB 2423 Environmental Testing Standards for Electrical and Electronic Products
(Applicable standards depend on customer production requirements and validation conditions.)
| Item | Specification |
|---|---|
| Model | G-C5000 / FJCO-5000 |
| Equipment Type | Clean Tunnel Oven |
| Power Supply | AC380V 3Ø 50Hz |
| Conveyor Structure | Three independent conveyor lanes |
| Conveyor Speed | 0–0.5m/min adjustable |
| Conveyor Width | 1600mm |
| Conveyor Height | 800±40mm |
| Heating Zone Length | 6 meters |
| Temperature Range | +50℃ to +150℃ |
| Standard Working Temperature | 150℃ |
| Temperature Control Zones | 3 independent zones |
| Temperature Uniformity | ≤±5℃ |
| Temperature Accuracy | ±1℃ |
| Clean Level | Class 1000 |
| Temperature Controller | OMRON PID Controller |
| Heating Control | SSR Solid State Relay Output |
| Temperature Sensor | Armored K-type Thermocouple |
| Temperature Monitoring | Six-channel temperature recorder |
| Airflow Design | Horizontal airflow with HEPA filtration |
| Inner Chamber Material | SUS304 Stainless Steel |
| Outer Chamber Material | SS441 Carbon Steel |
| Insulation Material | 128K High Density Insulation Board |
| Control System | Touch Screen Control |
| Safety System | Emergency stop, over-temperature, overload, leakage protection |
(1) Class 1000 Clean Production Environment
The Clean Tunnel Oven G-C5000 adopts a clean chamber structure and HEPA filtration airflow design to minimize particle contamination during the drying process.
(2) Three Independent Conveyor Channels
The oven is equipped with three independent conveyor lanes. Each lane can operate separately to improve production flexibility and efficiency.
(3) Stable Temperature Control
The heating area is divided into three independent temperature zones. OMRON PID controllers provide accurate temperature regulation and stable curing performance.
(4) Uniform Air Circulation Design
The horizontal airflow structure provides balanced air distribution and helps achieve consistent drying results across products.
(5) Automatic Lifting Cover Structure
The heating section cover adopts electric cylinder lifting, making equipment maintenance and cleaning more convenient.
(6) Product Protection During Conveying
The conveyor chain includes side guards with a height of 25mm to prevent wire harnesses or products from shifting or becoming stuck.
(7) Energy-Saving Insulation Design
The 128K high-density insulation material reduces heat loss and improves energy efficiency during continuous operation.
(8) Intelligent Temperature Monitoring
The six-channel temperature recorder monitors real-time temperature conditions inside the oven and provides process traceability.
(1) What is the Clean Tunnel Oven G-C5000 mainly used for?
The Clean Tunnel Oven G-C5000 is mainly used for drying and curing electronic products after dispensing, adhesive coating, and assembly processes. It is widely applied in 3C electronics manufacturing where clean production and stable heating are required.
(2) What clean level can the G-C5000 tunnel oven achieve?
The Clean Tunnel Oven G-C5000 is designed for Class 1000 clean production environments and uses clean airflow technology to reduce dust contamination during electronic product drying processes.
(3) How does the tunnel oven ensure temperature uniformity?
The equipment uses three independent heating zones with OMRON PID temperature controllers and real-time temperature monitoring through a six-channel recorder to maintain stable heating performance.
(4) Can the conveyor system be customized for different products?
Yes. The Clean Tunnel Oven G-C5000 can be customized according to product size, conveyor width, production speed, and curing process requirements.
(5) What products are suitable for this clean tunnel oven?
The Clean Tunnel Oven G-C5000 is suitable for electronic housings, PCB-related components, wire harness assemblies, adhesive-coated parts, and other precision products requiring clean drying.
