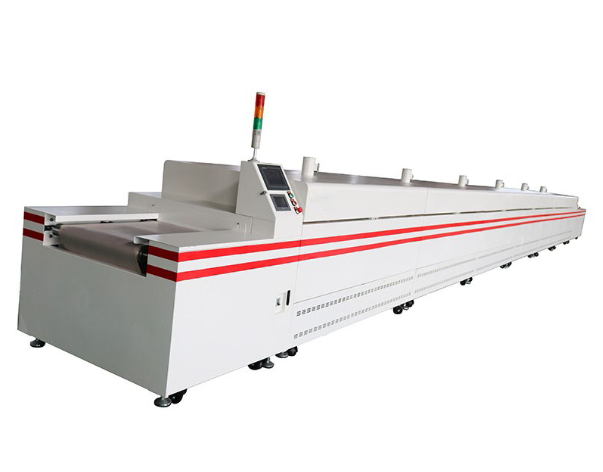

The Clean Tunnel Oven is designed for high-precision drying and curing processes that require a clean production environment and stable temperature control. Featuring a continuous conveyor structure, uniform hot air circulation, and Class cleanroom compatible design, this tunnel oven effectively prevents contamination, overheating, yellowing, and surface defects during the baking process.
The Clean Tunnel Oven is widely used in 3C electronics, optical components, PCB, LCD, TP, semiconductor-related industries, and other applications requiring clean and reliable thermal processing. The equipment can be customized according to production requirements, including conveyor width, heating zones, temperature range, and clean level.
The Clean Tunnel Oven is suitable for continuous drying, curing, and heat treatment processes, including:
3C Electronics Industry
Mobile phone housings
Electronic components
Precision plastic parts
Protective covers
PCB and Semiconductor Applications
PCB coating drying
Adhesive curing
Electronic material baking
Semiconductor auxiliary processes
Optical and Display Industry
LCD components
Touch panels
Optical films
Precision plastic substrates
Other Applications
Ink drying
Glue curing
Surface coating baking
Heat aging treatment
| Item | Specification |
|---|---|
| Equipment Name | Clean Tunnel Oven |
| Power Supply | AC380V 3Φ 50Hz 78KVA |
| CDA Supply | 16L/min, 5.0–7.0 kg/cm² |
| Exhaust Capacity | Max. 10.0 m³/min |
| Exhaust Pipe | Ø100mm × 6 pcs |
| Conveyor Speed | 0.3–3.0 m/min adjustable |
| Standard Working Speed | Approx. 1.0 m/min |
| Conveyor Material | PET-FILM & COVERLENS |
| Conveyor Color | Milky white high temperature resistant material |
| Working Width | 1200mm |
| Temperature Range | 0–220℃ adjustable |
| Temperature Uniformity | ≤±5℃ |
| Internal Chamber Material | SUS430 stainless steel plate, 1.2mm |
| Insulation Material | 128K high-density aluminum silicate ceramic fiber |
| Heating Method | Medium-wave quartz electric heating tube |
| Temperature Controller | OMRON PID temperature controller |
| Temperature Accuracy | ±0.3% FS |
| Temperature Monitoring | 6-channel temperature recorder |
| Conveyor Belt Width | 600mm Teflon belt |
| External Surface Temperature | ≤45℃ |
| Control System | HMI temperature setting and monitoring |
| Safety Protection | Over-temperature, overload, phase sequence, emergency stop protection |
(1) Clean Production Environment
The internal chamber adopts stainless steel structure with full argon arc welding to reduce dust generation and improve cleanliness.
(2) Uniform Temperature Distribution
Special air circulation design ensures stable hot air flow and temperature uniformity throughout the tunnel.
(3) High Precision Temperature Control
Equipped with OMRON PID temperature control system and SSR solid-state relay for accurate heating control.
(4) Reliable Continuous Conveying System
The conveyor system provides smooth product transportation without vibration, jamming, scratches, or product damage.
(5) Surface Protection Design
The conveyor structure prevents product contamination, edge damage, and surface defects during transportation.
(6) Improved Product Yield
The drying process prevents bubbles, over-baking, yellowing, and white spots after heating.
(7) Energy Saving Insulation Design
128K high-density ceramic fiber insulation effectively reduces heat loss and improves energy efficiency.
(8) Clean Conveyor Design
The conveyor is supported by small rollers to reduce friction and particle generation.
(9) Dust Removal and Static Elimination System
The inlet is equipped with adhesive dust removal rollers, while the outlet includes an ionizing static eliminator to reduce electrostatic issues.
(1) What industries use the Clean Tunnel Oven?
The Clean Tunnel Oven is mainly used in 3C electronics, PCB, LCD, TP, semiconductor, and precision component industries. It is suitable for processes requiring clean environments, stable heating, and continuous production.
(2) How does the Clean Tunnel Oven prevent product defects?
The Clean Tunnel Oven uses uniform hot air circulation and accurate temperature control to reduce defects such as bubbles, overheating, yellowing, and white spots during drying and curing.
(3) Can the Clean Tunnel Oven be customized for different production lines?
Yes. The Clean Tunnel Oven can be customized according to product size, conveyor width, heating length, temperature range, clean level, and production process requirements.
(4) What temperature control system is used in this tunnel oven?
The Clean Tunnel Oven uses an OMRON PID temperature controller combined with SSR solid-state relay control to achieve accurate and stable temperature management.
(5) How does the Clean Tunnel Oven maintain cleanliness during operation?
The equipment uses stainless steel internal construction, dust removal rollers, low-friction conveyor support design, and static elimination systems to reduce contamination during production.
