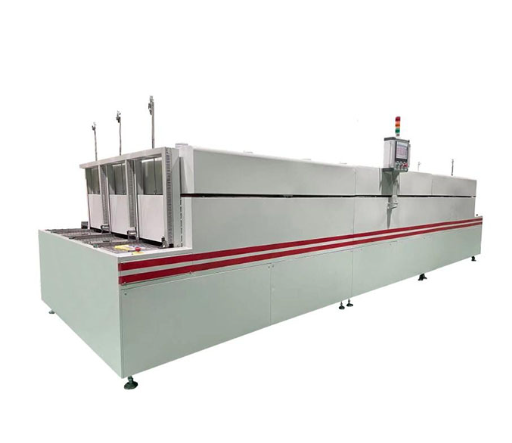

Coating & Potting Tunnel Oven G-CH153S

The Coating & Potting Tunnel Oven G-CH153S is specially designed for curing processes after coating and potting applications in the electronics industry. The oven provides precise low-temperature control, stable conveyor operation, and independent multi-channel transportation to ensure uniform curing quality and improve production efficiency.

Equipped with a Siemens PLC + HMI control system, OMRON PID temperature controllers, and three independent conveyor lanes, the Coating & Potting Tunnel Oven enables flexible production management for different product models and curing requirements. It is widely used for electronic components, wire harnesses, control modules, and other products requiring reliable coating or potting curing processes.

Application

The Coating & Potting Tunnel Oven is suitable for low-temperature drying and curing applications, including:

Electronic Components

PCB assemblies

Electronic control modules

Sensors

Power supply components

Coating Processes

Protective coating curing

Conformal coating drying

Insulation coating baking

Potting Applications

Silicone potting curing

Epoxy resin curing

Electronic encapsulation processes

Other Precision Industries

Wire harness assemblies

Automotive electronic components

Industrial control products

Technical Specifications

Features

(1) Designed for Coating and Potting Processes

Specially developed for electronic products after coating and potting, providing stable curing conditions and reducing defects caused by uneven heating.

(2) Precise Low Temperature Control

The oven maintains stable working temperatures between 45℃ and 50℃, suitable for sensitive electronic materials.

(3) Three Independent Conveyor Channels

Three conveyor lanes operate independently, allowing flexible production scheduling and improved production efficiency.

(4) Uniform Temperature Distribution

Three heating zones are independently controlled by OMRON PID temperature controllers, achieving temperature uniformity within ±2℃.

(5) Intelligent PLC Control System

The Siemens PLC and HMI system provide automatic operation, manual adjustment, and cleaning modes for different production requirements.

(6) Automatic Product Tracking Function

The HMI displays real-time product quantity in each lane, helping operators monitor production status.

(7) Flexible Conveyor Speed Adjustment

Each conveyor lane supports independent frequency conversion speed control from 0–6.0m/min.

(8) Safety and Easy Maintenance Design

The lifting doors, openable side panels, and rotary control screen provide convenient operation and maintenance.

FAQ

(1) What is the Coating & Potting Tunnel Oven G-CH153S used for?

The Coating & Potting Tunnel Oven G-CH153S is mainly used for curing electronic products after coating and potting processes, including conformal coating, silicone potting, epoxy curing, and electronic component protection applications.

(2) What temperature range does this tunnel oven support?

The Coating & Potting Tunnel Oven is designed for low-temperature curing processes. The working temperature can remain stable at 45–50℃, with adjustable settings from 40℃ to 80℃.

(3) How does the oven ensure uniform curing quality?

The tunnel oven uses three independent heating zones with OMRON PID temperature control and six-point temperature monitoring to maintain temperature uniformity within ±2℃.

(4) Can the conveyor system handle different production requirements?

Yes. The Coating & Potting Tunnel Oven features three independent conveyor lanes, and each lane can be separately controlled with adjustable speed from 0–6.0m/min.

(5) What control system is used for this coating curing oven?

The equipment uses Siemens PLC and HMI control technology with automatic, manual, and cleaning modes, allowing operators to easily manage production and monitor product movement.
