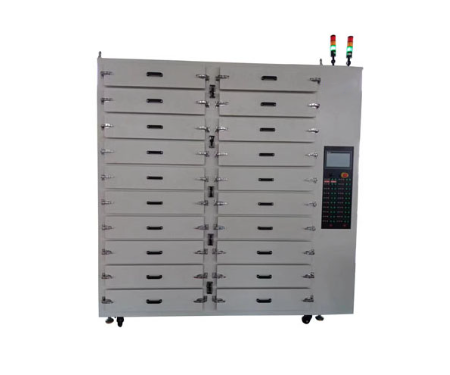

The IR drawer-type oven is a high-cleanliness infrared heating system designed for precision drying
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The IR drawer-type oven is a high-cleanliness infrared heating system designed for precision drying and thermal processing. It combines medium-wave infrared heating with hot air circulation, ensuring fast heating response and uniform temperature distribution. The equipment is widely used in cleanroom production environments, offering stable performance, high efficiency, and reliable automation control.
Drying and curing after dispensing processes
Electronic components and PCB processing
Optical and LCD module manufacturing
Semiconductor and IC packaging
Precision components requiring clean heating environments
| Parameter | Specification |
|---|---|
| Power Supply | AC380V, 3 Phase, 50Hz |
| Total Length | 6000 mm |
| Heating Zone Length | 5000 mm |
| Temperature Range | 40°C – 350°C (Typical ≤180°C) |
| Temperature Uniformity | ±3°C (excluding inlet/outlet) |
| Conveyor Speed | 0.3 – 2.0 m/min (adjustable) |
| Typical Speed | 0.8 m/min |
| Conveyor Type | SUS stainless steel mesh belt / PTFE belt |
| Belt Width | 1010 mm |
| Heating Method | Medium-wave quartz IR heaters |
| Exhaust Volume | Max. 10.0 m³/min |
| Exhaust Pipe | Ø80 mm × 6 |
| Exhaust Temperature | ≤150°C |
| Vacuum Requirement | Vacuum within 10 seconds |
| Temperature Control Accuracy | ±0.3% FS |
| Control System | Siemens PLC + Touchscreen |
| Temperature Monitoring | 6-point recorder with USB data export |
| Surface Temperature | ≤45°C (except inlet/outlet & exhaust areas) |
| Cleanliness Level | Class 100 |
Infrared + Hot Air Heating: Combines IR radiation with forced convection for fast and uniform heating
High Cleanliness Design: Full argon arc welded SUS304 chamber reduces particle generation
Stable Conveyor System: Roller-supported mesh belt prevents vibration, scratching, and jamming
Efficient Heating Elements: Medium-wave quartz tubes ensure rapid temperature rise and stable drying
Precision Temperature Control: OMRON controller with PID + SSR ensures high accuracy
Advanced Automation: Siemens PLC and HMI support MES integration and data management
Real-time Monitoring: Multi-point temperature recording with USB data export
Optimized Airflow System: Top-down airflow design ensures uniform temperature distribution
Energy-saving Insulation: High-density ceramic fiber insulation minimizes heat loss
Convenient Maintenance: Electric cylinder lifts the top cover for easy access
1. What is the advantage of IR heating in this oven?
Infrared heating provides faster heat transfer and improves drying efficiency, especially for coated or adhesive materials.
2. Is this oven suitable for cleanroom environments?
Yes, it meets Class 100 cleanliness standards with low particle generation design.
3. How is temperature uniformity ensured?
Through a combination of optimized airflow design and multi-point temperature monitoring.
4. Can the conveyor system prevent product damage?
Yes, the PTFE or stainless steel mesh belt with roller support prevents scratches and ensures smooth transport.
5. Is the system customizable?
Yes, parameters such as conveyor type, heating zones, and control system can be tailored to specific production requirements.
