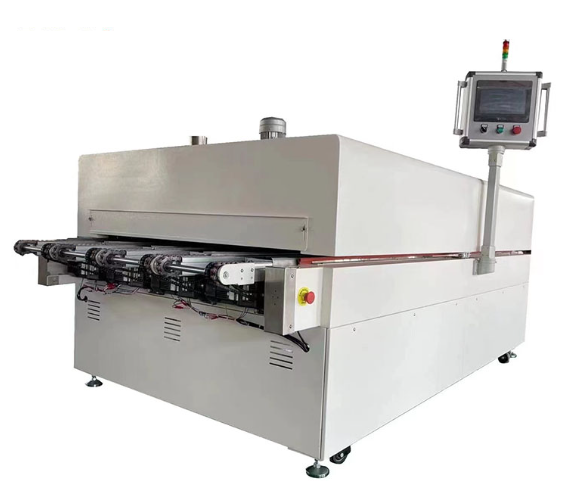

Dual-Lane Tunnel Oven

The dual-lane tunnel oven is a continuous drying and curing system designed for high-efficiency production after dispensing processes. It is developed in accordance with GB2423.2-1989 and GB/T11158-1988 standards. The system integrates heating, airflow, filtration, and conveying, providing stable temperature control, clean processing conditions, and increased throughput through multi-lane operation.

Applications

Drying after dispensing for 3C electronic housings

LCD module processing

CMOS IC packaging processes

Medical and laboratory applications

General adhesive curing and low-temperature baking processes

Technical Specifications

Features

Dual-Lane Design: Increases production capacity while maintaining consistent process conditions

Cleanroom Compatibility: Class 1000 design with particle filtration system

High Temperature Accuracy: Precise PID control ensures ±1°C accuracy

Uniform Heating: Optimized horizontal airflow ensures even temperature distribution

Flexible Conveyor Configuration: Multi-lane tracks customizable based on fixture size

Robust Structure: SUS304 stainless steel inner chamber with full welding reduces contamination

Energy-efficient Insulation: High-density insulation minimizes heat loss

Advanced Monitoring System: Real-time temperature recording with data printing capability

User-friendly Operation: Touchscreen control system with intuitive interface

Comprehensive Safety Protection: Includes emergency stop, over-temperature, overload, short circuit, and leakage protection

FAQ

1. What is the advantage of a dual-lane oven?

It allows simultaneous processing of multiple product streams, significantly improving production efficiency without increasing floor space.

2. Can the number of lanes be customized?

Yes, the conveyor system can be designed with multiple lanes based on product size and fixture requirements.

3. How is cleanliness maintained?

The oven uses a sealed structure with particle filtration, meeting Class 1000 cleanroom standards.

4. What type of products is it suitable for?

It is suitable for electronic components, LCD modules, IC packaging, and adhesive curing processes.

5. What safety features are included?

The system includes emergency stop, over-temperature protection, power failure alarm, phase sequence protection, overload, short circuit, leakage protection, and interlock safety system.
