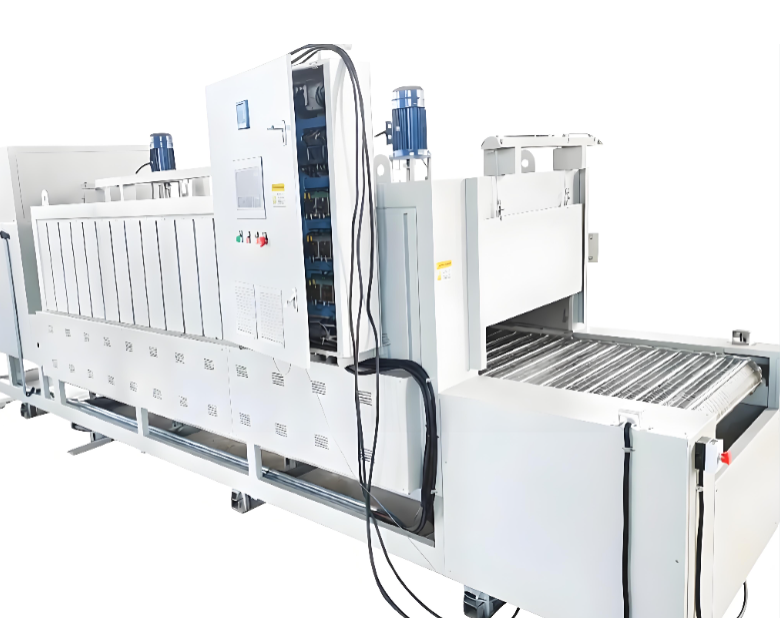

Automotive Radiator Moisture Drying Tunnel Oven

The Automotive Radiator Moisture Drying Tunnel Oven is a high-efficiency industrial heating system specially designed for the continuous evaporation and drying of residual moisture from automotive radiators, including radiators, condensers, intercoolers, and other heat exchanger components, after cleaning or brazing processes.By using continuous conveying and controlled heating technology, the equipment efficiently removes surface and internal moisture, improving product quality and production efficiency.

Application Fields

1. Pre-Brazing Drying Process

Used to remove residual moisture from radiator cores after:

Component assembly

Cleaning processes

to prevent defects such as pores or poor brazing quality caused by water vapor during brazing.

2. Drying After Finished Product Inspection

Used after air-tightness or water leakage testing to quickly remove surface moisture and prevent oxidation or corrosion of radiator components.

3. Pre-Coating Surface Treatment

Used for dehydration and drying before spraying processes to improve coating adhesion and ensure better surface treatment quality.

Applicable Standards

JB/T 10294

General Technical Conditions for Industrial Drying Ovens

Specifies general technical requirements for industrial drying furnace design and manufacturing.

GB 5226.1

Electrical Safety of Machinery — Electrical Equipment of Machines — Part 1: General Requirements

Regulates electrical safety requirements for industrial equipment.

GB 15630

Emission Standard of Air Pollutants for Industrial Furnaces and Kilns

Defines environmental protection requirements for industrial furnace exhaust emissions.

QC/T 468

Automotive Radiator Industry Manufacturing and Inspection Standards

Provides technical reference requirements for automotive radiator production and quality inspection.

Equipment Features

1. Continuous Production Operation

The equipment adopts:

Stainless steel mesh belt conveying

Chain conveyor systems

and can be directly integrated with automated production lines, providing high production efficiency and stable continuous operation.

2. Precise Temperature Control

The tunnel oven adopts:

Multi-zone independent temperature control

Hot air circulation heating technology

to achieve uniform temperature distribution throughout the furnace chamber and ensure consistent drying results.

3. Energy-Efficient Operation

The equipment uses:

High-density thermal insulation materials

Heat recovery systems for exhaust air

to reduce heat loss, improve thermal efficiency, and lower operating costs.

4. Powerful Dehumidification Performance

Equipped with a strong moisture exhaust system, the equipment can quickly remove humid air generated during the drying process, accelerating water evaporation and improving drying efficiency.

FAQ

Q1: What heating methods are commonly used in this tunnel oven?

A:The equipment usually adopts:

Electric heating (infrared heating or electric heating tubes)

Gas heating (natural gas or LPG)

The heated air is circulated through high-pressure fans to form forced convection, allowing moisture inside complex radiator fins and structures to evaporate quickly.

Q2: What is the typical drying temperature setting?

A:Depending on the process stage, the drying temperature is generally set between 100°C and 180°C.

Pre-brazing drying: Usually uses a relatively higher temperature to ensure complete moisture removal.

Post-water-testing drying: Usually uses a lower temperature to protect sealing components and prevent damage.

The final setting depends on radiator material, structure, and process requirements.

Q3: Why use a tunnel oven instead of a conventional drying oven for radiator drying?

A:Automotive radiator production requires high-volume and efficient manufacturing processes.

A tunnel oven provides:

Continuous loading and unloading

Automated production line integration

Higher production efficiency

while traditional batch ovens require manual loading and unloading, making them unsuitable for large-scale automotive component production.

Q4: How does the equipment ensure that water trapped inside deep radiator fins is completely removed?

A:In addition to high-uniformity hot air circulation, the equipment is often equipped with:

High-pressure air knives at the inlet or outlet section

The air knives first remove most surface water through physical airflow, and the radiator then enters the heating zone for final drying, ensuring effective moisture removal without dead zones.

Q5: What materials are commonly used for the conveyor system?

A:Common conveyor materials include:

Stainless Steel Mesh Belt (such as SUS304)

High temperature resistance

Corrosion resistance

Suitable for standard radiator components

PTFE (Teflon) Mesh Belt

Non-stick surface

Suitable for applications requiring gentle material handling

For heavier radiator assemblies, the equipment may adopt:

Chain conveyors

Roller conveyor systems

to provide higher load capacity and minimize deformation during continuous operation.

The Automotive Radiator Moisture Drying Tunnel Oven provides an efficient and reliable drying solution for automotive heat exchanger manufacturers. With advantages including continuous operation, precise temperature control, strong dehumidification capability, energy-saving design, and automated production compatibility, it is widely used in radiator manufacturing, brazing preparation, inspection drying, and surface treatment processes.
