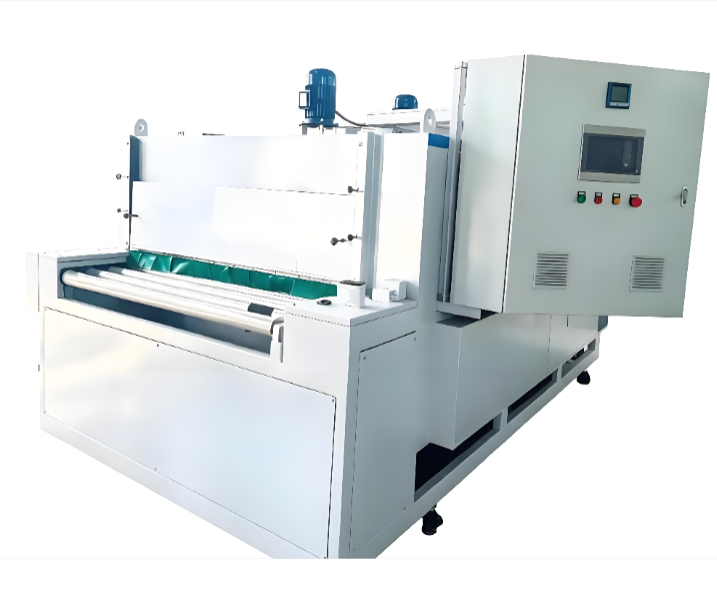

Glass Baking Tunnel Oven

The Glass Baking Tunnel Oven is a high-efficiency industrial furnace that continuously transports glass materials into the heating zone through a conveyor system for thermal processing. Its main structure includes a continuous conveying system, multi-zone precise temperature control system, and hot air circulation system.It is widely used for glass screen-printing ink curing, tempering preheating, coating drying, and electronic glass packaging processes.

Application Fields

1. Automotive and Architectural Glass

Used for drying and curing:

Screen-printing inks

Conductive silver pastes

Functional coatings on automotive and architectural glass

2. Electronic and Display Glass

Used for:

Adhesive curing on mobile phone panels and touch screens

Moisture removal baking of ITO glass surfaces

Thermal processing of display glass components

3. Household and Decorative Glass

Used for continuous sintering and curing of:

Painted patterns and decals on glass products

Coatings and pigments sprayed on glass bottles

Applicable Standards

Safety and Electrical Standards

Complies with industrial machinery electrical safety requirements, including:

GB 5226.1 — Electrical Safety of Machinery — Electrical Equipment of Machines — Part 1: General Requirements

IEC 60204-1 — Safety of Machinery — Electrical Equipment of Machines

Environmental Protection and Energy Consumption Standards

Exhaust emissions shall comply with national standards for atmospheric pollutant emissions from industrial furnaces and kilns.

The external surface temperature rise of the furnace body shall comply with national occupational health and industrial facility design requirements.

Industry Requirements

Follows process specifications for different industries, such as:

Electronic component manufacturing

Automotive glass production

Heat treatment process verification under ISO 9001 quality management systems

Equipment Features

1. Efficient Continuous Production

The equipment adopts a conveyor-based continuous feeding system, making it suitable for large-scale production and automated assembly line operations.

2. Uniform and Stable Temperature Control

The system adopts multi-zone independent PID temperature control combined with forced hot air circulation to ensure stable furnace temperature and minimize temperature deviations.

3. Energy Saving and Environmental Protection

Equipped with:

High-efficiency thermal insulation layers

Exhaust extraction and purification systems

to improve heat utilization efficiency and reduce energy consumption and environmental impact.

4. High Automation Level

The equipment can be seamlessly integrated with upstream and downstream robots or production lines, while providing real-time monitoring and recording of temperature curves for process traceability.

FAQ

Q1: What is the maximum working temperature of a glass baking tunnel oven?

A:The working temperature of standard glass baking tunnel ovens is generally between 80°C and 300°C. Special high-temperature sintering models can be customized to reach temperatures above 600°C.

Q2: How does the equipment ensure temperature uniformity inside the oven?

A:The equipment uses upper and lower or side hot air convection circulation systems, combined with multi-zone independent temperature control and optimized airflow guide hole designs, to achieve uniform heat distribution throughout the furnace chamber.

Q3: What conveyor belt materials are available?

A:Common conveyor options include:

Stainless steel mesh belt — Suitable for high-temperature applications and strong load requirements

PTFE (Teflon) mesh belt — Provides excellent non-stick performance and chemical resistance

Graphite plate conveyor — Suitable for special high-temperature glass processing applications

The selection depends on the glass size, weight, production requirements, and processing temperature.

Q4: How are exhaust gases generated during baking treated?

A:The top of the furnace is equipped with exhaust ducts, which can be connected to factory exhaust treatment systems, such as:

RTO (Regenerative Thermal Oxidizer) systems

Activated carbon adsorption units

The exhaust gases are purified before being discharged to meet environmental protection requirements.

Q5: What maintenance is required for daily operation of the equipment?

A:Daily maintenance includes:

Regularly cleaning impurities and residues inside the furnace

Checking the condition of heating tubes and the sensitivity of thermocouples

Lubricating transmission bearings

Calibrating and verifying temperature control curves

Regular maintenance ensures stable heating performance, accurate temperature control, and longer equipment service life.

The Glass Baking Tunnel Oven provides a reliable and precise thermal processing solution for modern glass manufacturing industries. With advantages including continuous operation, accurate temperature control, uniform heating, energy efficiency, and automation compatibility, it is widely applied in automotive glass, architectural glass, electronic displays, and decorative glass production.
