Electronic Product Heating Tunnel Oven

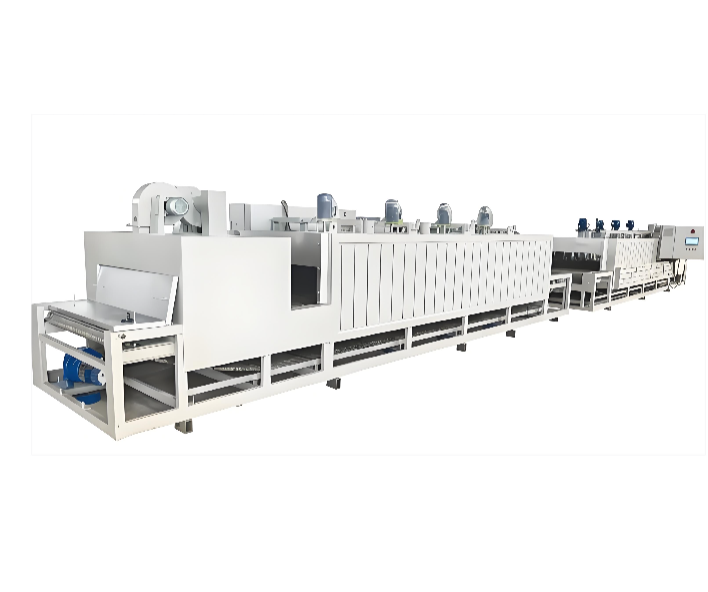

The Electronic Product Heating Tunnel Oven is an automated industrial production system that continuously transports electronic components through controlled temperature zones via a conveyor system. It uses hot air circulation, infrared heating, or far infrared radiation heating technologies to perform batch drying, curing, annealing, and reflow heating processes.The core structure of the equipment consists of a continuous conveying system, multiple precision temperature control zones, and a powerful hot air circulation system, ensuring stable and uniform thermal processing for electronic products.

Equipment Applications

1. Adhesive Curing

Used for thermal curing of adhesives such as UV glue and epoxy resin on electronic components including:

Mobile phone housings

Sensors

Precision electronic parts

2. PCB Drying

Used for moisture removal after printed circuit board (PCB) cleaning and curing of solder mask inks.

3. Battery Processing

Used for thermal pressing, drying, and shaping of:

Lithium battery electrode sheets

Insulating adhesive tapes

4. Coating Annealing

Used for continuous leveling and heat treatment of protective coatings and insulating varnishes on electronic components.

Applicable Standards

Electrical Safety

Complies with IEC 60204-1 — Safety of Machinery — Electrical Equipment of Machines

Industry Standards

Complies with IPC-HDBK-830 — Guidelines for the Use of Conformal Coatings for Electronic Assemblies

Meets relevant electronic manufacturing requirements for cleanliness and temperature uniformity.

Quality Management

Complies with ISO 9001 Quality Management System requirements and CE certification requirements.

Main Features

1. High-Efficiency Continuous Production

Designed for integration with automated production lines, significantly improving the production efficiency of large-volume electronic product manufacturing.

2. Precise Temperature Control

Adopts multi-zone independent PID temperature control, ensuring uniform furnace temperature and preventing local overheating that may damage sensitive electronic components.

3. Energy Saving and Environmental Protection

Uses high-efficiency thermal insulation materials and hot air internal circulation technology to reduce heat loss and improve energy utilization efficiency.

4. Intelligent Safety Protection

Equipped with multiple safety functions, including:

Over-temperature alarm

Leakage protection

Motor overload protection

Cooling system

to ensure stable and safe equipment operation.

FAQ

Q1: What is the maximum temperature of the tunnel oven?

A:The temperature range of standard electronic-grade tunnel ovens is generally from room temperature to 300°C. For special high-temperature processes, customized models can reach temperatures above 500°C.

Q2: How does the equipment ensure temperature uniformity inside the oven?

A:The equipment uses forced hot air circulation fans to create three-dimensional turbulent airflow inside the heating chamber, ensuring uniform heat distribution. The temperature difference between horizontal and vertical directions can generally be controlled within ±2°C to ±5°C.

Q3: What types of conveyor belts are available? Which one is commonly used?

A:Common conveyor belt options include:

Stainless steel mesh belt — Suitable for high-temperature applications and heavier products

PTFE (Teflon) mesh belt — Provides excellent non-stick performance and temperature resistance

Silicone conveyor belt — Suitable for products requiring gentle transport and surface protection

The selection depends mainly on product weight, processing temperature, and production requirements.

Q4: Does the equipment support dust-free and oxygen-free environments?

A:Yes. For advanced applications such as semiconductor and optical electronics manufacturing, the tunnel oven can be equipped with:

HEPA high-efficiency filtration systems

Nitrogen (N₂) atmosphere protection systems

to prevent oxidation and meet high cleanliness production requirements.

Q5: What maintenance is required during daily operation?

A:Regular maintenance includes:

Cleaning residual materials from the conveyor belt

Checking the operating condition of heating tubes

Calibrating thermocouple temperature sensors in each heating zone

Keeping the fan air inlet clean and unobstructed

Regular maintenance helps ensure stable heating performance and extends equipment service life.

The Electronic Product Heating Tunnel Oven provides an efficient, precise, and reliable thermal processing solution for modern electronic manufacturing industries. With advantages such as multi-zone temperature control, uniform heating, intelligent safety protection, and continuous automated operation, it is widely used in PCB manufacturing, battery production, semiconductor components, and electronic assembly industries.
