Brand:QINSUN
Model:G-RF070

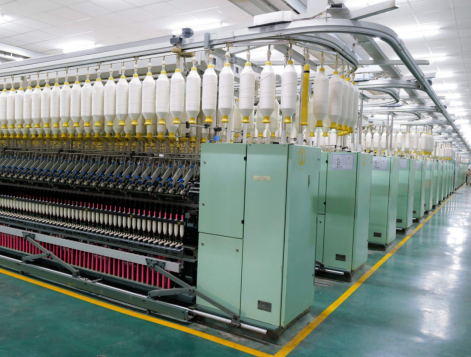

The ring frame is the core yarn-forming equipment in the spinning process of the textile industry. It is used to further draft, twist and wind roving into yarn, and finally produce finished yarn that can be used for weaving, knitting and other purposes.
Item | Specification |
Spindle Gauge | 70 mm. |
Spindle No | 96 |
Spindle type - spring type | Standard spindle with knee braking system Ring diameter: 38mm, 42mm, 45mm (12 spindles for each ring diameter) Flange 3.2 mm |
Tube length | 200 mm |
Spun yarn count | 6~100 Ne |
Draft Ratio | Total draft 10 ~ 50 times, Rear Zone Draft 1.6 ~ 1.53 times |
Draft range | 8-80 |
Twist range | 300~1600T/M |
Spindle speed range | 12000 ~ 20000 rpm |
Twist | Z or S |
Suitable fiber | Cotton, Cotton type chemical fiber and medium synthetic fiber up to 65mm or their blends. |
Pressure arm | Spring loaded drafting arrangement with 3 rows of rollers with cradle for short and medium staple fibers. |
Roving bobbin diameter | 180 mm and lift 205mm creel of 6 rows (single) with roving holder peg, break & roving guide bar |
Operating system | PLC with latest configuration. |
Ring cup, Drafting bottom roller, Spindle and Traveler | must be rust proof. |
Accessories for Ring Spinning Machine
Projects | Quantity |
Essential spare parts and catalogue book | |
No. of Ring bobbin | 200 |
No. of Simplex bobbin | 200 |
Draft changeable gears | (Step-2) 8-50 |
Break draft changeable gears | 1.16-2.0 (Step 0.05) |
Twist changeable gears | 300-1600 T/M |
Ring Traveler | For
16s, 20s, 26s, 30s, 40s, 50s, 60s, 80s, |
Catalogue & operation manual |
One year warranty
