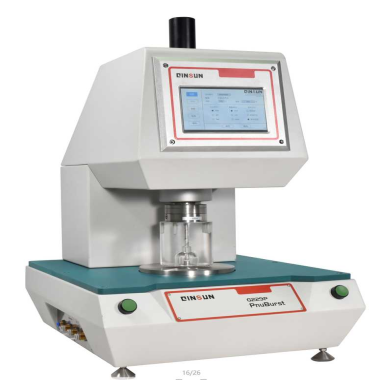

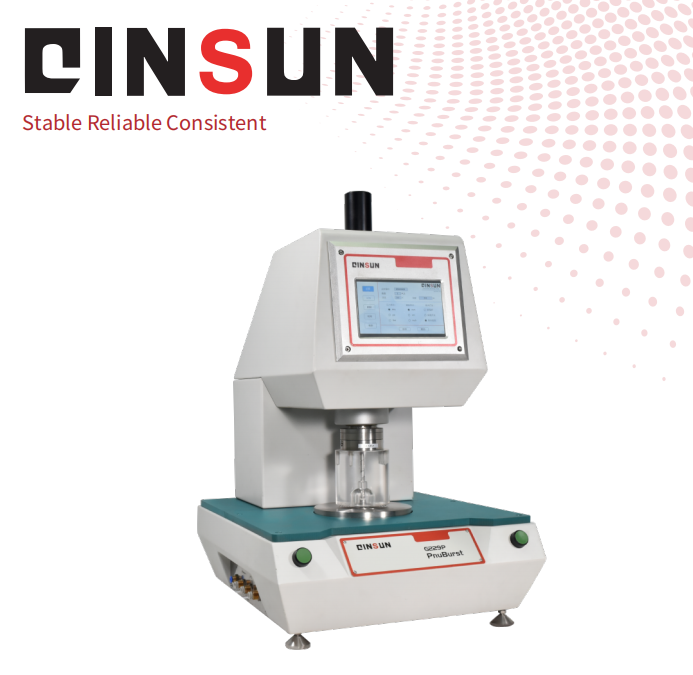

Precision Mullen G229P Pneumatic Bursting Strength Tester.
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The G229P Pneumatic Fabric Bursting Strength Tester is used to measure the bursting strength and height of various materials, including textiles (woven, knitted, nonwoven), paper or board, nonwoven fabrics, paper sheets, plastics, cardboard, packaging materials, films or sheets, and medical products. It is an essential instrument for testing the bursting resistance of paper, corrugated boards, and textiles.

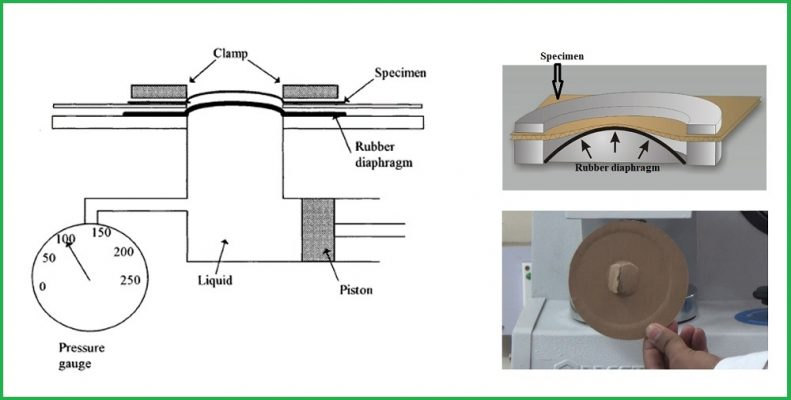

ASTM D3786: Hydraulic bursting strength test method for textiles (Diaphragm method).
ISO 13938-2: Textile bursting characteristics – Air pressure method for bursting strength and expansion.
IWS TM 29: International Wool Bureau Standard for fabric bursting resistance.
EDANA 80.4.2002: Recommended test method for non-woven fabric bursting strength.
NEXT 22: Determination of fabric bursting properties.
GB/T 7742.1: Chinese National Standard for textile bursting strength (Equivalent to ISO 13938-2).
Precision & Speed: Utilizes pneumatic blasting technology to deliver rapid, accurate measurements of bursting strength, height, and force under uniform stress.Dual Control Modes: Combines manual and automatic operation via intelligent algorithms, ensuring flexibility for diverse testing needs.
User-Centric Design: Features a color LCD touchscreen with intuitive software for real-time data display, analysis, and report generation.
Multi-Industry Applicability: Ideal for textiles, leather, paper, non-wovens, and other materials requiring bursting resistance evaluation.
Safety & Compliance: Built-in multi-directional safety protections and adherence to global standards reduce operational risks.
High-Pressure Capacity: Maximum pneumatic pressure of 1.5MPa accommodates demanding testing requirements.
Pneumatic Blasting Principle: Generates controlled air pressure to simulate real-world stress conditions, ensuring reliable and repeatable results.
Smart Touch Control: Color LCD interface with dual-button start and foot-switch compatibility for ergonomic operation.
Comprehensive Software: Integrates data acquisition, storage, analysis, and printing functions. Supports export of test reports in multiple formats.
Adjustable Pressure Range: Wide pressure adaptability (0–1.5MPa) suits various material thicknesses and strengths.
Safety Mechanisms: Emergency stop, overload protection, and automatic pressure release prevent equipment damage and operator injury.
Compact & Durable: Robust construction with minimal footprint (450mm × 350mm × 500mm) ensures long-term reliability.
| Parameter | Specification |
|---|---|
| Max. Bursting Force | 1.50 MPa |
| Test Modes | Manual / Automatic / Optional (Dual-Button + Foot Switch) |
| Accuracy | ±0.2% F.S. |
| Bursting Surface Diameter | 30 mm / 30.5 mm / 31 mm / 35.7 mm / 79.8 mm / 112.8 mm (Optional) |
| Bursting Membrane Size | 155.8 mm |
| Pressurization Method | Pneumatic Air Pressure |
| Pressurization Rate | 1–100 kPa/min (Adjustable) |
| Sample Fixing | Pneumatic Clamp |
| Output Forms | Printout / Display / Real-Time Graphic Display / Online Communication |
| Report Format | Bursting Strength, Film Pressure, Bursting Height, Bursting Time, Statistical Analysis |
| Bursting Height Accuracy | 70 ±1% |
| Power Supply | AC 220V ±10%, 50Hz (Customizable 110V/60Hz) |
| Dimensions | 800mm × 700mm × 1100mm |
| Net Weight | 115 kg |
| Software Features | Real-Time Data Acquisition, Statistical Analysis, Exportable Reports (PDF/Excel) |
| Safety Protections | Emergency Stop, Overload Protection, Auto Pressure Release |
Recommended cardboard bursting strength tester

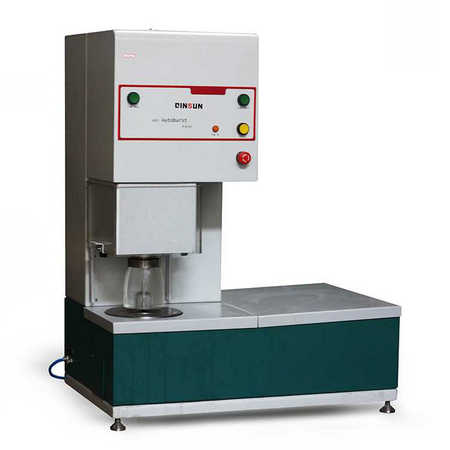

1、Cardboard/Paper Burst Strength Tester
