Bursting strength testing machine

Introduction

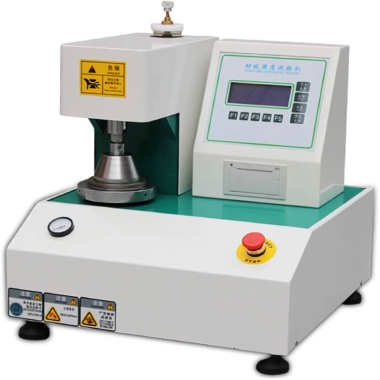

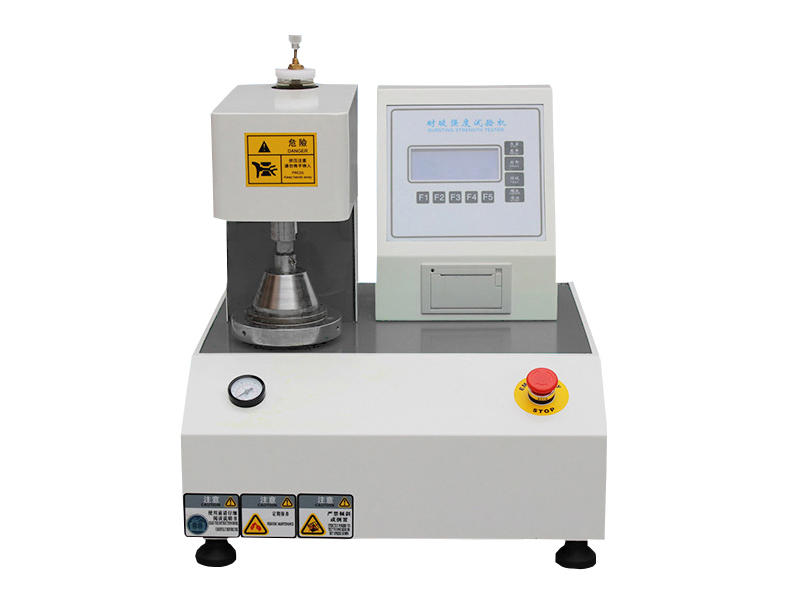

Bursting Strength Tester is an intelligent and automatic rupture strength testing machine to test anti-rupture strength. Features pressure range of 250 to 5600 kPa with pressure transmitter as sensing method. Designed with anti-vibration motor and semi-automatic operation method, it is an ideal unit for quality control and inspection.

Standard

ISO2759

ISO2758

JIS-L1004 L1018 L1031

GB/T20027-2005

K6328 P8131 P8112

ASTM-D2210

TAPPI T403TS-63

GB/T3903

Applications

Bursting Strength Tester is used to determine the anti-burst or anti-rupture strength of raw paper, corrugated cardboard, leather, cloth and synthetic leather.

Features

An intelligent and automatic rupture strength testing machine

Designed as per ASTM-D2210 and ISO2759-2001 configuration standard

Compact and tabletop structure for easy and convenient operation

Pressure range of 250 to 5600 kPa with pressure transmitter

Semi-automatic operation mode for reliable operation

Digital indicators with LCD display for parameters setting and observation

Anti-vibrator motor for smooth and quiet operation

Standard with built-in printer for easy data analysis

An ideal unit to test anti-rupture strength for quality control

Parameter

Weight (KG)：120

Video outgoing-inspection：Provided

Machinery Test Report：Provided

Warranty of core components：1 Year

Warranty：1 Year

Applicable Industry：Leather materials

Clamping force：≤15kgf

Corrected value：11.61kgf

Test unit：kPa、kgf、psi

Hydraulic system：Automatic reset

Clamp ring diameter：Upper ring: Φ 31.50mm ; Lower ring: Φ 31.50mm

Test strength：0-80Kg high pressure

Power：1∮AC220V，120W

Size(W×D×H)：440×550×700mm
