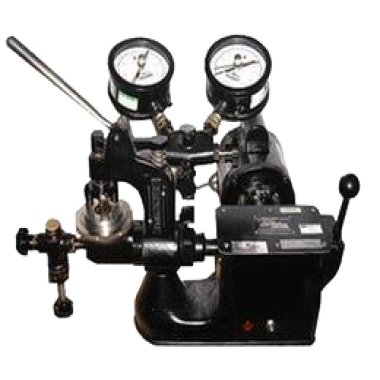

Mullen Bursting Strength Tester

Standard

ASTM D3786.AS2001.2.4.BS EN ISO 13938-1.GB/T 7742.ISO 13938-1.JIS L1018/L1093.IWSTM170

Application

Mullen burst strength tester is mainly used to determine the bursting strength or bursting strength of seams for the knitted fabrics, knitted fabrics, non-woven fabrics and paper, leather.

Main models

Common models for the C, A

Instrument features

1. the use of Mitsubishi 16-bit industrial-level MCU control, with strong anti-interference ability;

2. Equipped with Putian MT-300K printer, a test report can be printed with the output data.

Technical Parameters

Motor: 120W variable-speed motor

Sensor: Pressure transducer

Control: Touchscreen

Screw: Ball screw

Capacity: High pressure 250kPa to 5600kPa

Low pressure (optional): 50kPa to 1600kPa

Maximum load force: 5000kPa

Maximum stroke: 25mm (without clamp)

Resolution: 0.1kPa

Clamp ring material: SUS#304 stainless steel

Clamp ring inner diameter: Upper clamp ring inner diameter Φ31.5 ± 0.1mm, lower clamp ring inner diameter Φ31.5 ± 0.1mm

Clamping force range: 600kPa to 1200kPa

Units: kPa, Lbs/in², kgf/cm²

Hydraulic fluid: Silicone oil 100%

Pressure speed High pressure: 170 ± 15 ml/min

Low pressure (optional): 95 ± 5 ml/min

Dimensions: Approximately 400 mm × 380 mm × 750 mm (L × W × H)

Weight: Approximately 50 kg

Air pressure: ≥ 0.6 MPa

Power supply: 1∮ AC 220V

Power: Approximately 300 W
