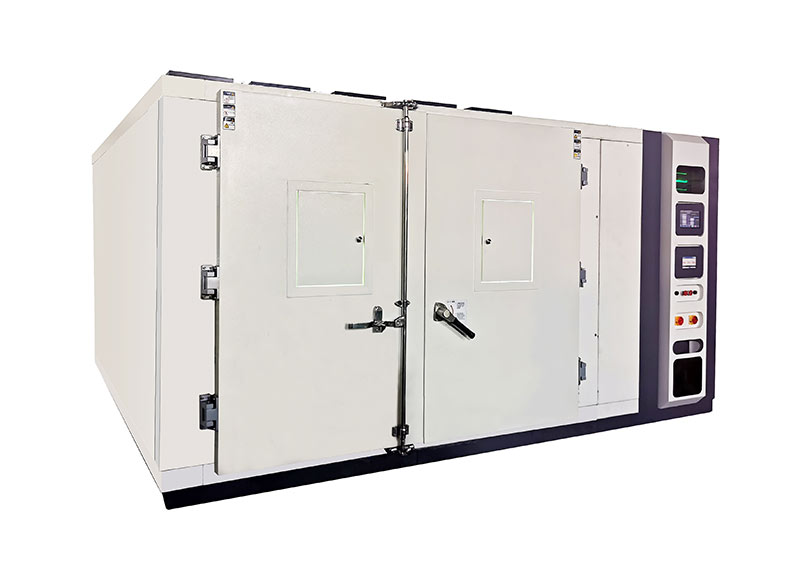

Solar Simulator Tester

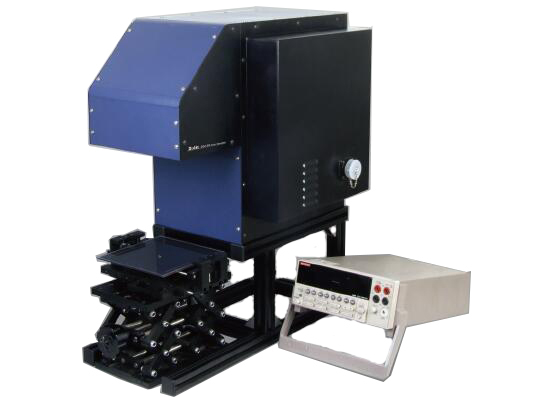

Recommended related instruments:   Solar Simulators

The Solar Simulator is a brand-new solar energy simulator that provides a completely new solar energy experience. It features highly realistic sunlight simulation, accurately mimicking the intensity and angle of sunlight at different times and seasons. Through the BBA Solar Simulator, users can experience the warmth and comfort of real sunlight.

Applications

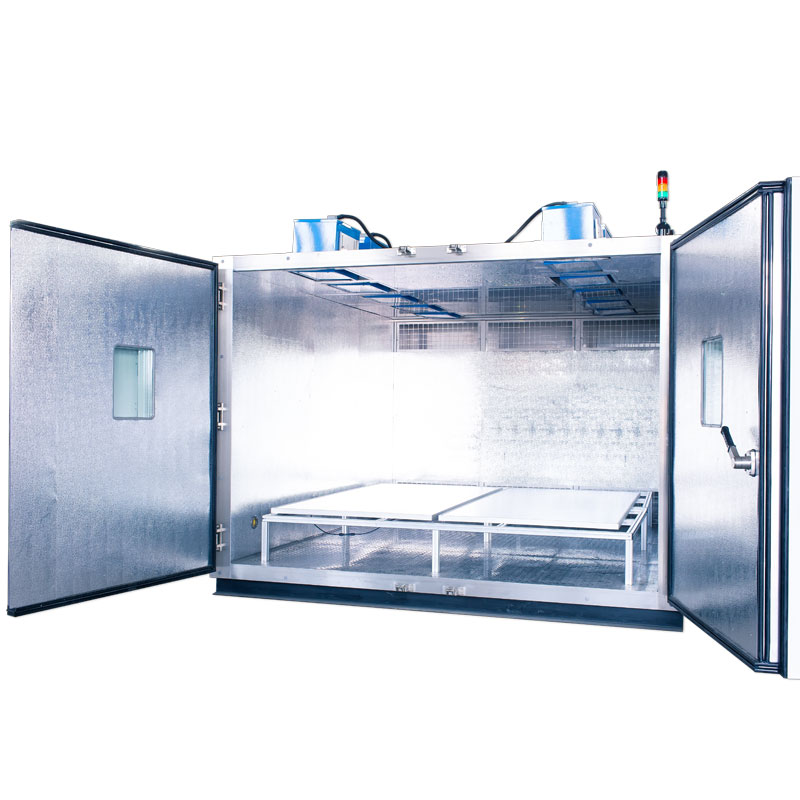

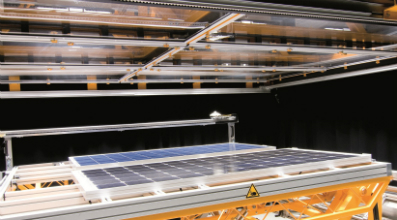

This BBA device provides an environment close to natural sunlight. The purpose of the solar simulator is to provide a controllable indoor experimental facility for testing solar photovoltaic modules. The AAA-grade large-area steady-state solar simulator is primarily used for testing large-area photovoltaic modules, and can perform tests including maximum power testing, temperature coefficient measurement, performance under low irradiance, hot spot durability testing, and photoaging testing.

Standards

IEC 61215: Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval

IEC 61646: Thin-Film Terrestrial Photovoltaic (PV) Modules – Design Qualification and Type Approval

ISO 9060: Solar Energy – Classification of Pyranometers

UL 1703: Safety Standard for Photovoltaic Modules

CE Certification (Conformité Européenne)

Features

BBA-Grade Performance

Class B Spectral Matching: Ensures AM1.5G compliance for accurate energy rating.

Grade B Irradiance Uniformity: <5% deviation across 2.0m × 1.0m test area.

Multi-Mode Testing

STC/NOCT/Hotspot Simulation: Replicates standard test conditions, nominal operating cell temperature, and thermal runaway scenarios.

1.000 W/m² Tuneability: Adjustable irradiance for low-light performance mapping.

Stability First

Class A Transient Stability: <2% flicker during pulsed load testing.

Metal Halide Lamp Longevity: 5.000-hour lifespan with <10% lumen depreciation.

Smart Control

AI-Powered Irradiance Correction: Compensates for lamp aging in real-time.

Remote Calibration: Wi-Fi/Ethernet connectivity for ISO 17025 compliance.

Safety First

UV Filter: Blocks harmful UVC radiation during operator access.

Emergency Shutoff: Dual redundant safety circuits with GPS-enabled alerts.

Technical Parameters

Accessories

Testing Kit:

4x PV module test fixtures (adjustable for frameless/framed modules).

10x Type T thermocouples with ceramic insulation.

Software Suite:

License key for SolarSim Pro (Windows/Linux).

1-year free access to cloud-based PV simulation tools.

Calibration & Safety:

NIST-traceable irradiance meter.

UV safety goggles (Class 1. 3 pairs).

Maintenance Kit:

Spare metal halide lamps and igniters.

Lamp cleaning solution (non-corrosive).

Documentation:

Multilingual quick-start guide (printed + digital).

Compliance certificates for IEC/UL/ISO standards.

Test Procedures

Install PV module securely on the test fixture.

Select appropriate irradiance level and test mode (STC/NOCT/Hotspot).

Configure robotic arm for IV curve tracing and EL imaging positions.

Initiate solar simulator sequence and monitor irradiance, uniformity, and temperature.

Record electrical performance data and export for analysis or certification reporting.

Perform post-test inspection for module integrity and hotspot evaluation.

Maintenance Information

Inspect lamp housings, optical components, and robotic arm before each test session.

Clean lamps, reflectors, and test area to maintain spectral uniformity.

Replace metal halide lamps and igniters periodically according to operating hours.

Verify irradiance calibration with NIST-traceable meter regularly.

Ensure all safety interlocks and UV filters are functional before operation.
