Solar Array Simulator

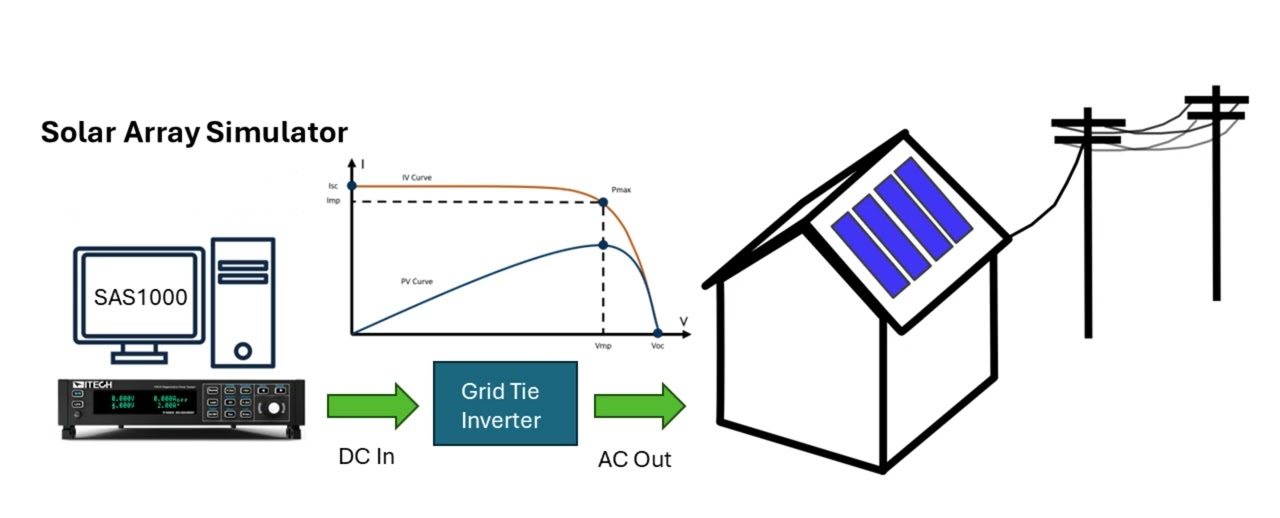

Solar array simulator is a high performance DC power supply with fast change of IV curve. It can simulate the IV output characteristics of various solar panels under different environments (temperature, light, shadow decay, aging). It can be applied for the tests of solar micro-inverter, power optimizer, sail power array and so on.solar array simulator has low ripple, low noise and fast MPPT, supports multi-channel synchronous control and high voltage topology.

Applications：

Micro-inverters

Power Optimizer

Home Energy Storage

MPPT shutdown module

Standards：

EN50530, IEC 61853, and IEC 61215.

Key Specifications:

Model: Q1006

Power: 6kW

Working: PWM

Input: phase: 1Ø2W

Voltage: 220V±10%

Frequency: 50Hz±10%

Output: voltage: 0-300V current: 0-20A

Ripple voltage (rms): 0.2%FS

Ripple current (rms): 0.3%FS

Linear regulation: ±0.1%FS

Voltage resolution: V0<1000V:0.1V, V0≥1000V:1V

Current resolution: output Io<1A: resolution 0.001A, 100A>output Io≥10A: resolution 0.01A, 1000A>output Io≥100A: resolution 0.1A, output Io≥1000A: resolution 1A

Power resolution: power <10kW, resolution: 1W, power: ≥10kW, resolution: 0.1kW

LCD display: V, A, W, T

Setting items: CV:0-100% the rated voltage is adjustable

CC:0-100% the rated current is adjustable

CP:0-100% the rated power is adjustable

Setting accuracy: voltage: ±0.8%FS

Current: ±1%FS wattage: ±1%FS

Advantage：

1、High-power and scalable

Test up to 2000 V and 30 kW in a single unit, or scale with multiple units to 600 kW for high-capacity string inverter testing in large commercial PV systems.

2、Autoranging output

Automatically adjusts the output to match load requirements to deliver full power over voltage and current combinations up to 2000 V or 60 A.

3、DC power supply mode

Delivers up to 30 kW of autoranging DC power with precise voltage / current control and advanced features like output sequencing, data logging, and waveform generation.

4、Automated testing

Designed to streamline the process of verifying compliance with industry standards, like EN50530, IEC 61853, and IEC 61215.

Measurement accuracy:

Voltage: 0.5%FS+5dgt

Current: 0.5%FS+5dgt

Wattage: 0.5%FS+5dgt

SAS model: through the user settings can simulate different solar panel I-V output curve, see specific functional PC software instruction for specific functions

Storage number: A total of 9 groups, each group can be memory voltage and current values, and is fast and convenient to calling

Remote model: combination PC can make the power simulation of single or up to 1000 I-V output curve, see specific functional PC software instruction for specific functions

I-LIM set: o-max current (more than the current setting power protection to stop the output)

V-LIM set: o-max voltage (more than the voltage setting power protection to stop the output)

Protection: over voltage, over current, over temperature, short circuit

Cooling: fan forced cooling

Environment: 0-40°C, 20-80%RH (non-condensing)

Certification: CE

Weight (kg): 50 (specific kind prevail)

Dimension: WxHxD (mm) 483x265x600 (specific kind prevail)

High response speed：

Photovoltaic simulator has a current loop speed of up to 500kHz and supports 250Hz MPPT speed.Its IV curve consists of up to 4096 data points which closely matches the real output of the photovoltaic array. The real output of the photovoltaicpanel strictly follows its IV curve.When the MPPT tracking frequency increases, if the response speed of the simulator (power supply) is too slow, it will not be able to track the IVcurve, and the reliability of the test results is under doubt. Under the condition of high MPPT tracking frequency of the solar array simulator series PV simulator,the output still accurately conforms to the preset IV curve.

Low noise of output current：

The high fundamental frequency noise of the PV simulator affects theMPPT and current sampling precision of the inverter.

5 PV modes

Solar Array Simulator series has 5 built-in PV modes. You can operate it on the front panel. With the built-in IV curves models of multiple regulations, four-pointmethod, table tracing point method, fixed mode or list programming, it can simulate the output of solar array IV curve, big screen graphical display,and real-time view of MPPT status of micro-inverter, power optimizer and other DUTs. In addition, you can import model files via a USB. Whenmultiple channels operations are required, you can use PV software, very convenient.
