The Magnetic Coupling Torsional Stiffness Testing Machine is designed to evaluate the torque transmi
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

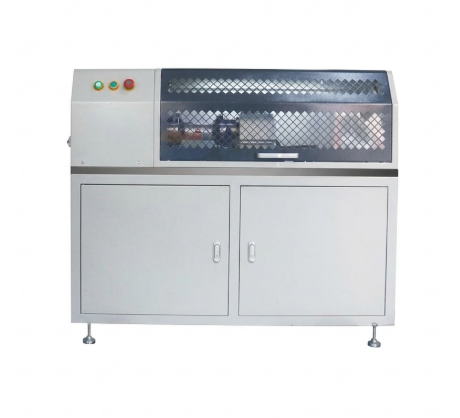

The Magnetic Coupling Torsional Stiffness Testing Machine is designed to evaluate the torque transmission and torsional performance of magnetic couplings under static and dynamic operating conditions. The system consists of a loading system, transmission system, data acquisition and processing system, and control and display system.
It can measure torque, torsion angle, and rotational speed while displaying torque-time, torsion angle-time, and torque-angle curves in real time. The system can be configured for different torque capacities and test speeds, making it suitable for magnetic coupling development, performance verification, production inspection, and quality control.
(1) Magnetic Coupling Torque Testing
Evaluate the torque transmission capacity of magnetic couplings and verify whether the design meets specified requirements.
(2) Torsional Stiffness Testing
Measure the relationship between transmitted torque and torsion angle to evaluate torsional stiffness and deformation behavior.
(3) Static Torque Testing
Evaluate torque characteristics under static or low-speed loading conditions.
(4) Dynamic Torque Testing
Measure torque transmission performance under different rotational speeds and loading conditions.
(5) Performance and Reliability Evaluation
Assess torque transmission stability and repeatability under specified operating conditions.
(6) Production Quality Control
Verify the performance consistency of magnetic couplings during manufacturing and final inspection.
(7) R&D and Academic Research
Provide torque, angle, and rotational-speed data for magnetic coupling development and performance optimization.
(8) Typical Industries
Suitable for magnetic coupling applications in machinery, automotive, marine, aerospace, and petrochemical industries.
(1) ISO 21940-11 — Mechanical vibration — Rotor balancing — Procedures and tolerances for rotors with rigid behaviour
(2) ISO 10816 / ISO 20816 series — Mechanical vibration — Measurement and evaluation of machine vibration
(3) ASTM E143 — Standard Test Method for Shear Modulus at Room Temperature
(4) GB/T 10128 — Metallic materials — Torsion test at room temperature
| Parameter | Specification |
|---|---|
| Test Torque | 100, 500, 1000, 2000, 5000 Nm, customizable |
| Torque Reading Resolution | Typically 0.1 Nm |
| Torque Measurement Range | 2%–100% FS |
| Torque Accuracy | Better than ±1% of indicated value |
| Torque Repeatability Error | Better than ±1% of indicated value |
| Torsion Speed | Typically 0.1–720°/min, continuously adjustable |
| Maximum Torsion Angle | Up to 365,000° or customized |
| Minimum Angle Reading | Typically 0.1°; higher-resolution configurations available |
| Angle Accuracy | Better than ±1% of indicated value |
| Loading Direction | Clockwise and counterclockwise |
| Test Mode | Static and dynamic torque testing |
| Data Acquisition | Torque, torsion angle, rotational speed |
| Test Curves | Torque-time, angle-time, torque-angle |
| Power Supply | Typically AC 220 V, 50 Hz |
| Machine Class | Typically Class 1 |
| Protection | Overcurrent, overvoltage, and overload protection |
(1) Designed specifically for magnetic coupling torque and torsional performance evaluation.
(2) Supports both static and dynamic torque testing.
(3) Measures torque, torsion angle, and rotational speed during testing.
(4) Supports clockwise and counterclockwise torque loading.
(5) Continuously adjustable torsion speed accommodates different test procedures.
(6) Real-time display of torque-time, angle-time, and torque-angle curves.
(7) Automatic data acquisition and processing reduce manual recording errors.
(8) Test results can be stored and printed for quality-control records.
(9) Multiple torque capacities are available, from 100 Nm to 5000 Nm, with customized ranges available.
(10) Safety protection functions help protect the equipment during abnormal operating conditions.
