The Large Shaft Torsion Testing Machine is a horizontal high-torque testing system designed for tors
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

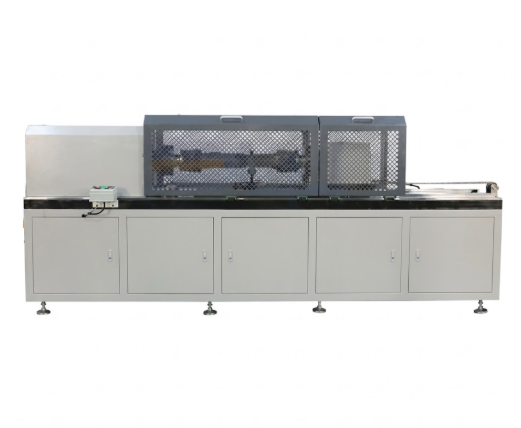

The Large Shaft Torsion Testing Machine is a horizontal high-torque testing system designed for torsional testing of heavy-duty shafts and drive components. It can perform static torsional strength, torsional stiffness, fatigue, and failure tests on transmission shafts, marine shafts, wind turbine shafts, flange shafts, spline shafts, and similar components.
The machine uses servo-driven loading and high-precision sensors to measure torque and torsion angle. The test stroke can be configured according to specimen length, while the intelligent control system supports automatic data acquisition, curve display, and test report generation.
(1) Transmission Shafts
Evaluate torsional strength and stiffness of automotive and industrial transmission shafts.
(2) Heavy-Duty Shafts
Test marine main shafts, wind turbine shafts, flange shafts, and other large shaft components.
(3) Spline and Drive Components
Assess torque transmission and failure performance of spline shafts and related components.
(4) Torsional Fatigue Testing
Perform cyclic torsion and fatigue tests to evaluate long-term durability.
(5) R&D and Quality Control
Support product development, design verification, and production quality inspection.
(1) GB/T 2611 — General technical requirements for testing machines
(2) GB/T 10128 — Metallic materials — Torsion test at room temperature
(3) ASTM E143 — Standard Test Method for Shear Modulus at Room Temperature
(4) ASTM A938 — Standard Test Method for Torsion Testing of Wire
The applicable standard should be confirmed according to the tested shaft, test method, and customer requirements.
| Parameter | Specification |
|---|---|
| Maximum Test Torque | 100 / 200 / 500 / 1000 / 2000 / 5000 / 10000 Nm |
| Test Stroke | 500–3000 mm |
| Testing Machine Class | Class 0.5 / Class 1 |
| Torque Measurement Range | 1%–100% FS |
| Minimum Torque Reading | 0.01 / 0.1 Nm |
| Angle Resolution | 0.01° |
| Maximum Torsion Angle | 0–Unlimited |
| Test Speed | 0.1–720°/min, customizable |
| Angle Indication Error | < ±0.5% |
| Angle Repeatability Error | < 0.5% |
| Torque Indication Error | < ±0.5% |
| Torque Repeatability Error | < 0.5% |
| Speed Accuracy | Better than ±1% of indicated value |
| Machine Appearance | Complies with GB/T 2611 |
| Torsion Fixture | One standard set |
| Power Supply | AC 220 V, 50 Hz |
| Applicable Specimens | Transmission shafts and other shaft components |
(1) Horizontal structure designed for large and long shaft specimens.
(2) High-torque configurations up to 10,000 Nm are available.
(3) Adjustable test stroke accommodates different shaft lengths.
(4) Servo-driven loading provides controlled and stable torsional motion.
(5) High-precision sensors measure torque and torsion angle.
(6) Supports static torsion, torsional stiffness, fatigue, and failure testing.
(7) Intelligent control system enables automatic data acquisition and processing.
(8) Displays torque-angle and other test curves in real time.
(9) Test data can be stored and used to generate test reports.
(10) Customized fixtures and configurations are available for special shaft components.
