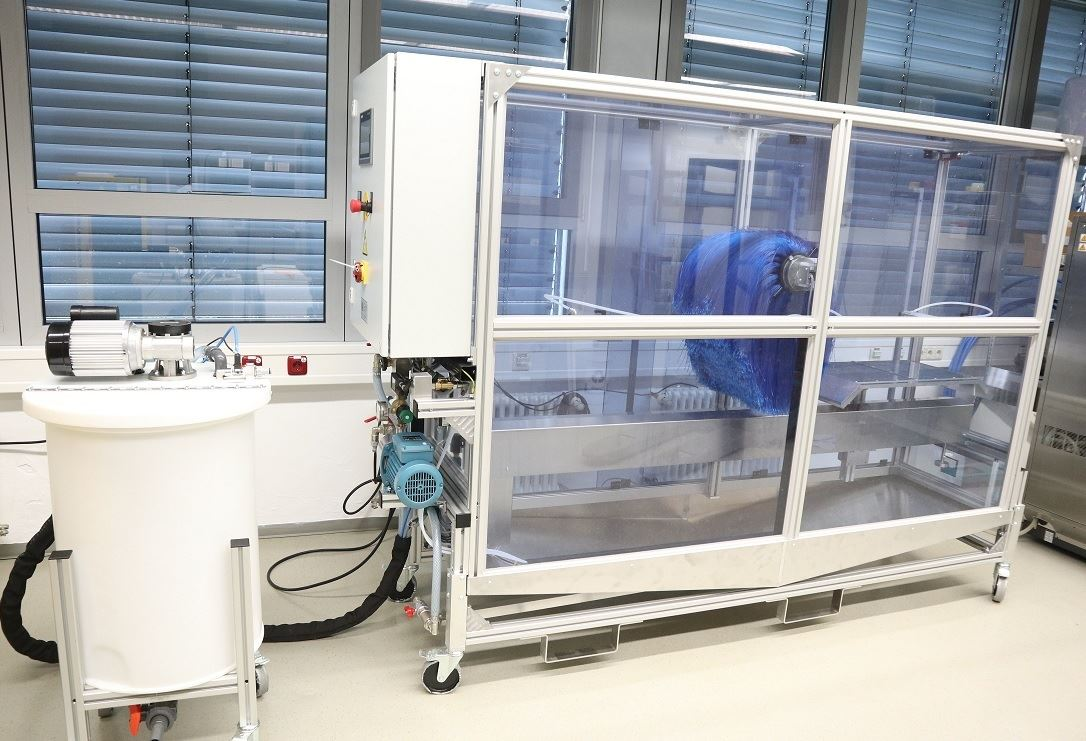

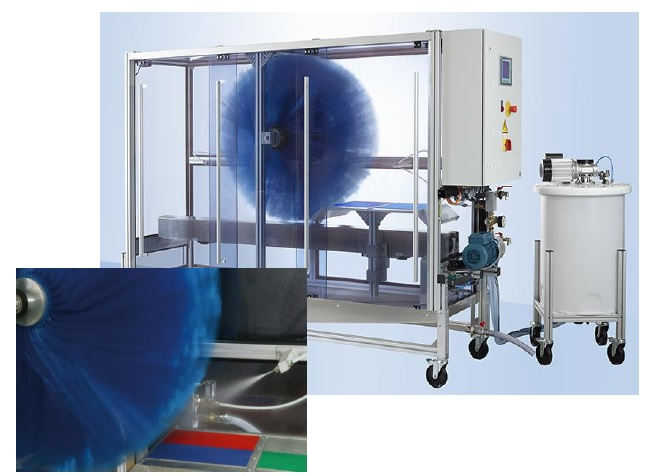

The ISO 20566 Wheel Scratch Resistance Laboratory Car Wash Simulator is a precision testing instrume
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The ISO 20566 Wheel Scratch Resistance Laboratory Car Wash Simulator is a precision testing instrument designed to evaluate the scratch resistance of automotive coating systems under controlled laboratory conditions. It replicates real-world car wash operations to provide consistent, repeatable, and quantifiable results on paint and clearcoat durability, helping to ensure coating performance meets industry and international standards.
The laboratory car wash simulator is primarily used to assess the scratch resistance of automotive coatings. Typical applications include:
Evaluation of automotive exterior paint and clearcoat systems
Quality control of vehicle coatings in research and development laboratories
Performance testing of aftermarket protective coatings
Comparative testing of different paint formulations or surface treatments
Specific testing product: ISO 20566 Wheel Scratch Resistance Laboratory Car Wash Simulator
The simulator is designed to comply with multiple international and industry standards:
PV 3.3.3 – Scratch resistance test specification for automotive interior surfaces
ISO 20566:2020 – Paints and varnishes – Determination of scratch resistance of coating systems by laboratory car wash
MBN 10494-5 – Scratch resistance testing of automotive interior materials, Part 5
| Item | Details |
|---|---|
| Washing Brush Diameter | 1000 ± 40 mm |
| Brush Width | 300 mm |
| Material | Ethylene |
| Brush Profile | X-type joint |
| Bristle Thickness | 0.8 ± 0.2 mm |
| Bristle Length | 440 ± 20 mm |
| Penetration Depth | 100 ± 20 mm |
| Electric Brush Rotation Speed | 127 ± 5 RPM |
| Rotation Direction | Opposite to the movement direction of the test panel holder |
| Stainless Steel Nozzle Angle | 65° |
| Flow Rate | 2.2 ± 0.2 L/min at 300 ± 50 kPa |
| Feed Speed | 5 ± 0.2 m/min |
| Movement Mode | When the brush rotates clockwise, the nozzle sprays and the test panel moves from left to right (and vice versa) |
Accurate simulation of laboratory car wash conditions
Uniform brush and fluid application ensures consistent scratch testing
Adjustable parameters allow for precise replication of real-world testing scenarios
High repeatability for R&D, quality control, and comparative coating studies
Compliance with multiple international standards guarantees test validity
Stainless steel spray nozzles
Test panel holders with adjustable height
Control panels for flow rate and rotation speed
Cleaning and maintenance tools
Standardized washing suspension solution
Sample Preparation:
Select a representative test panel in accordance with ISO 15528.
Inspect and prepare each sample according to ISO 1513.
Test Panel Setup:
Ensure the test panel is flat, deformation-free, and conforms to required dimensions.
Panel thickness should be 0.5–5 mm; for other thicknesses, adjust the brush depth and angle via the panel holder.
Testing Procedure:
Conduct the test at room temperature (20–30°C).
Determine the testing area for each device using a control panel, especially after replacing the electric brush. The gloss difference between the test area and the scratch region should not exceed 15 gloss units.
Exclude evaluation within 5 cm from panel edges or along at least 3 cm parallel to the panel movement direction.
Before testing, run the simulator without any test panels for 10 wash cycles (10 bi-directional operations) to evenly distribute the washing suspension and ensure uniform thickness across test areas.
Maintenance Information
Regularly clean brushes and nozzles to prevent residue build-up
Verify rotation speed, feed rate, and spray flow before each test
Replace worn bristles and check brush alignment periodically
Calibrate control system according to manufacturer recommendations
1. What is the core advantage of this product?
The simulator provides highly repeatable and precise scratch resistance testing under laboratory conditions, replicating real-world car wash operations.
2. Are the test results reliable?
Yes. The device ensures uniform brush action, controlled fluid application, and compliance with international standards, guaranteeing accurate and reproducible results.
3. Which international or industry standards does it comply with?
PV 3.3.3. ISO 20566:2020. and MBN 10494-5.
4. Why is this product important?
It allows coating manufacturers and R&D labs to evaluate the durability of paint and clearcoat systems efficiently, reducing the risk of scratches in real-world use.
5. Which industries or applications is it suitable for?
Automotive R&D, vehicle coating quality control, aftermarket protective coating testing, and comparative studies of different coating formulations.
