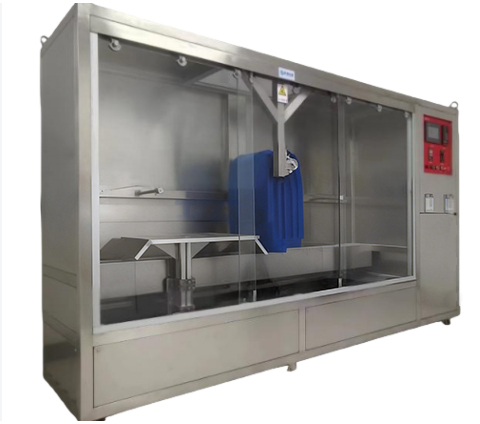

The Laboratory Automotive Wash and Friction Testing Bench is designed to evaluate the scratch resistance of automotive coating systems through controlled laboratory washing and friction tests. It simulates real-world car wash conditions in a repeatable and standardized laboratory environment, providing accurate assessment of coating durability under mechanical and frictional stress.
Primary applications:
Assessing scratch resistance of automotive paint and clear coat systems
Evaluating coating performance under mechanical friction and water exposure
Laboratory testing for automotive coatings, material development, and quality control
Typical tested products:
Automotive exterior panels (metal and composite substrates)
Automotive clear coats and multi-layer paint systems
Laboratory-coated metal panels for R&D
Material samples requiring controlled wash and friction testing
(1) BS ISO 20566 – Paints and varnishes: Determination of coating system scratch resistance using laboratory car wash equipment
(2) ISO 20566:2021 – Paints and varnishes: Laboratory-scale car wash testing for coating systems
(3) ISO 13076 – Visual assessment of coating surface appearance
(4) ISO 2813 – Measurement of coating gloss
(5) ISO 13803 – Measurement of coating haze
(6) ISO 7724 – Color measurement and color difference evaluation of coatings
| Parameter | Specification |
|---|---|
| Test Chamber Material | #304 Stainless steel |
| Test Chamber Doors | 3 transparent sliding panels |
| Brush Type | Removable brushes for easy replacement |
| Work Platform | Inclined sides, customizable with threaded mounting holes |
| Spray Nozzles | 2 × 316 stainless steel, angle 65°, pressure 300 ±50 kPa, flow 2.2 ±0.2 L/min |
| Platform Drive | Servo motor, speed 5.0 ±0.2 m/min |
| Platform Safety | Dual limit proximity switches |
| Water Tank Capacity | 80 L with automatic refill, level control, and overflow protection |
| Water Mixing | Internal agitator for uniform solution |
| Safety Features | Water splash guard, water-electric separation |
Full stainless steel test chamber with transparent doors for observation.
V-shaped bottom funnel for easy drainage and cleaning.
Removable brushes for quick replacement and reduced wear.
Inclined work platform minimizes brush abrasion during platform movement.
Customizable fixture holes on the platform for different sample sizes.
Two spray nozzles alternate with platform movement, ensuring uniform wash coverage.
Servo-driven work platform provides precise and repeatable test speeds.
Large capacity water tank with agitation ensures accurate mixing and consistent test results.
Water splash guards prevent damage to electrical components, enhancing safety.
(1) Removable test brushes
(2) Spray nozzles (316 stainless steel)
(3) Sample platform fixtures
(4) Water mixing agitator
(5) Safety guards
Test Procedures
Installation of Wash Rotor
Attach the automotive wash brush rotor to the rotation shaft of the test bench using specialized bolts.
Gap Adjustment
Adjust the vertical gap between the rotor edge and test platform to 100 mm using adjustment tools.
Preparation of Test Solution
Add the cleaning agent to the circulating water tank and ensure thorough mixing using the built-in agitator.
Sample Placement
Place test parts or sample panels on the work platform.
Trial Run
Perform a preliminary run to ensure correct operation, brush contact, and spray distribution.
Formal Testing
Run the programmed wash cycle, applying controlled brush and water motion to evaluate coating scratch resistance.
Clean brushes and work platform after each test.
Inspect spray nozzles for clogging and clean or replace as needed.
Regularly check water tank level and agitator function.
Ensure platform drive system and safety switches are operational.
Keep test chamber dry and free from residue after tests to maintain accuracy.
1. What is the core advantage of this product?
It simulates real-world car wash conditions in a controlled laboratory environment, providing repeatable and precise scratch resistance evaluation.
2. Are the test results reliable?
Yes. The combination of servo-driven platform, controlled spray pressure, and uniform brush contact ensures accurate and reproducible results.
3. Which international/industry standards does it comply with?
BS ISO 20566. ISO 20566:2021. ISO 13076. ISO 2813. ISO 13803. ISO 7724.
4. Why is this product important?
It helps assess the durability of automotive coatings, guiding product development, quality control, and compliance with industry standards.
5. Which fields is this product suitable for?
Automotive paint and coating R&D
Quality control laboratories
Material durability testing
Automotive industry testing facilities
