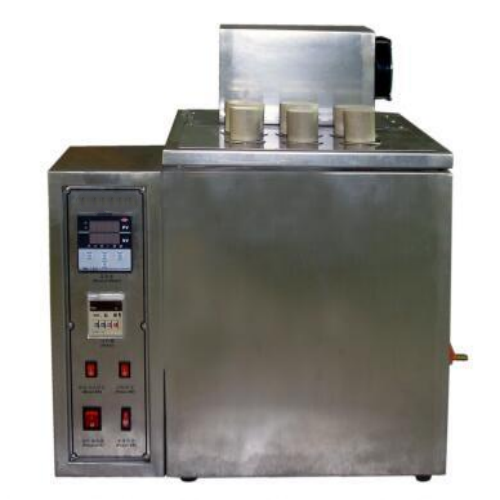

Automotive Wire Hot Water（Salt Water）Resistance Tester

The Automotive Wire Hot Water (Salt Water) Resistance Tester is engineered for long-term (over 14 days) testing of automotive and locomotive wires under DC voltage and salt water immersion conditions. This system evaluates insulation resistance, voltage endurance, and corrosion resistance of wires exposed to hot water and saline environments. It ensures the durability and safety of wiring systems in automotive and industrial applications.

Application

The tester is primarily used in the following applications:

Automotive primary wires and battery cables

Locomotive and industrial control wires

Connector and harness testing under hot water or saline immersion

Long-term durability assessment under DC voltage and corrosive environments

Verification of automotive wiring harnesses exposed to heat, water, or saline conditions

Standards

This tester complies with and supports the following international standards:

ISO 6722 — Road Vehicles: Low Voltage Primary Cables

SAE J1128 — Low Voltage Automotive Cables

QC/T 730 — Automotive Wire Test Method

JASO D611 — Automotive Wire Electrical Performance

EN 50305 — Electrical Test for Automotive Cables

EN 50395 — Long-term Electrical Performance of Automotive Wires

IEC 60811 — Electric and Optical Fiber Cables – Test Methods

Parameters

Features

Long-term immersion testing capability for over 14 days

Precise temperature control with PID digital controller

Corrosion-resistant tank and components designed for saline environments

Automatic water level maintenance via pump and ball valve

Optional DC voltage monitoring and leakage current recording

Compact design for easy operation and maintenance

Accessories

Motor-driven non-metallic stirrer

Corrosion-resistant ball valve

Water replenishment pump

Optional high-voltage DC stability tester (DC 0~5 kV)

48 V DC power supply (optional)

Test Procedures

Prepare the system by ensuring the water level is adequate and the tank is filled with salt water.

Set the temperature to the desired value (typically room temperature to 99.9°C).

Insert the wire samples to be tested into the test tank.

Activate the DC voltage (if applicable) and adjust the parameters for the testing procedure.

Monitor the temperature, voltage, and current during the test period.

Record the test data, ensuring the wire’s insulation and corrosion resistance are within acceptable limits.

After the test period, review results for insulation resistance and voltage endurance.

Maintenance Information

Regular Cleaning: Clean the tank and components regularly to avoid salt buildup.

Inspect Components: Ensure the ball valve and water replenishment pump are functioning properly.

Temperature Control Check: Verify the PID controller and temperature sensors for accurate readings.

Check for Corrosion: Periodically inspect the tank material and parts for any corrosion or wear.

System Calibration: Perform regular calibration of the voltage and temperature sensors to maintain accuracy.
