Airtightness Testing Equipment

The Protected Area Airtightness Testing System is designed to evaluate the airtightness of enclosures within facilities using gas extinguishing systems. This system measures the peak pressure and dwell time inside the protected area to assess the reliability of the system. It also checks whether the Pressure Relief Valve (PRV) opens correctly, ensuring that pressure peaks do not exceed structural limits during testing. The system is compatible with international standards such as GB, ISO 14520, ASTM, NFPA 2001, and EN15004.

Application

The Protected Area Airtightness Testing System is used to verify the airtightness and structural integrity of enclosures in facilities with gas extinguishing systems, including:

Data Centers

Electrical Rooms

Industrial Plants

Critical Areas

It is ideal for:

Testing installed PRVs (Pressure Relief Valves)

Evaluating ventilation leaks

Ensuring that the protection system maintains its integrity during operation

Standards

This system complies with the following standards:

ISO 14520 (Gaseous Fire Extinguishing Systems)

ASTM

NFPA 2001 (Standard on Clean Agent Fire Extinguishing Systems)

EN 15004 (Fixed firefighting systems – Gaseous extinguishing systems)

Technical Parameters

Product Features

High-Precision Measurement: Real-time display of pressure and airflow using pressure-flow meters and touch-screen operation.

Wide Testing Range: Supports both positive and negative pressure testing with a wide range of flow rates.

Multi-Fan Configuration: Allows rapid testing of large buildings with multi-fan configurations.

Automated Software: Includes fully automated or semi-automated testing software, which calculates results and generates reports.

Data Accessibility: Wi-Fi, Bluetooth, and wired connections allow remote monitoring and control.

Multiple Flow Control Modes: Supports nine flow control modes for precise adjustments and testing.

Durable and Lightweight: The system is designed to be compact, easy to use, and durable.

Factory Calibration Certificates: All units come with a factory calibration certificate to ensure accurate measurements.

Online Software Updates: The software is freely updatable online, ensuring you always have the latest features and testing protocols.

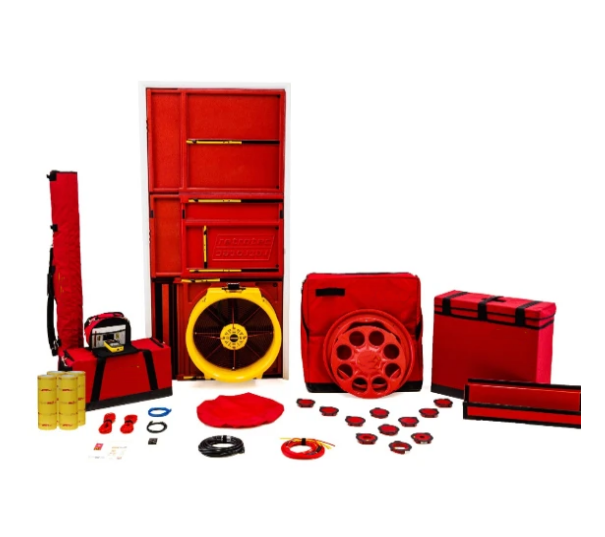

Accessories

Main Unit: Core testing unit with integrated pressure-flow measurement capabilities.

Digital Pressure Host: Provides precise pressure measurements during tests.

Adjustable Door Frames: Customizable frame sizes (80.5 cm to 129.5 cm in width, 151.5 cm to 277.5 cm in height).

Flow Rings (Optional): Various flow rings such as OpenA, B8, B4, B2, B1, B74, B47, and B29 for different testing conditions.

Software: Fully automated software for easy testing, data processing, and reporting.

Factory Calibration Certificate: Ensures the system’s accuracy and compliance with standards.

Test Procedure

Setup: Install the fan and adjustable door frame to fit the enclosure being tested.

Configure Parameters: Using the software, configure the test parameters including flow rate, pressure range, and test duration.

Start Testing: Begin the test via the touch-screen interface; the system will automatically control pressure and airflow measurements.

Monitor in Real-Time: The system will display real-time data on the screen, allowing continuous monitoring.

Post-Test Review: After completion, review and analyze the data via the software, which stores and exports the results in multiple formats.

Maintenance Information

Fan Maintenance: Inspect the fan regularly for dust or obstructions. Replace filters or other components as needed.

Software Updates: Keep the system’s software up-to-date with the latest versions to ensure full functionality.

Calibration: Perform annual calibration of pressure measurement devices to maintain accuracy.

Door Frame Inspection: Periodically inspect the door frames for proper sealing to maintain airtightness during testing.
