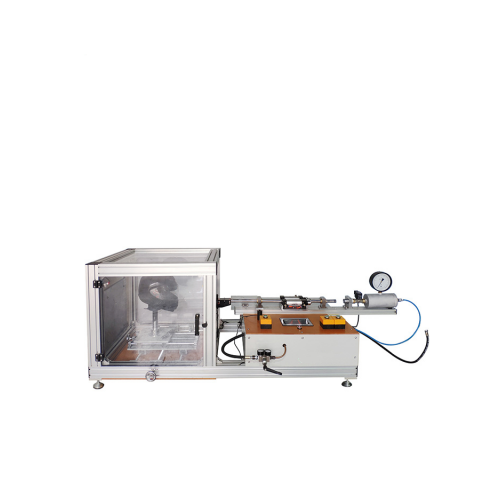

The helmet and goggle high-speed projectile impact testing machine is a specialized device used to test the resistance of helmet goggles to impact from high-speed small particles.
The high-speed impact tester is used to test the impact resistance of eyeglasses, goggles, and face shields at a specific speed.
SNELL SA: Snell SA2010 Standard for High-Performance Protective Headgear
K2010: Snell K2010 Standard for Karting Helmets
EN 166: Personal Eye Protection – Specifications
EN 168: Personal Eye Protection – Non-Optical Test Methods
ANSI Z87.1: Occupational and Educational Personal Eye and Face Protection Devices
MIL-PRF-32432: Military Combat Eye Protection (MCEP) System
High-precision laser speed measurement sensor: Ensures the accuracy of the test speed.
Safety warning indicator light: Ensures the equipment is in a safe state before testing.
Touch screen control: Provides an intuitive device control interface.
Head model material: Made of silicone, simulating a human head shape.
Air compressor air source requirements: Flow rate ≥ 500 L/min, air pressure ≥ 0.65 MPa.
Power supply: AC 220V 50HZ.
Emergency stop device: Ensures safety during the testing process.
Digital LCD display: Displays the speed of the projectile (m/s).
Adjustable test bench: Facilitates quick helmet installation.
Fully enclosed test space: Ensures the safety of the testing environment.
Observation window: Installed on the door for easy observation of the testing process.
| Technical Parameter | Description |
|---|---|
| Weight, diameter and speed of each standard impact ball | Refer to the image.png (details not provided in text) |
| High-speed speed measurement system | Adopts high-precision laser speed measurement sensing device |
| Safety warning indicator light | When the equipment door is not properly closed, the equipment cannot enter the test state (double limit switches are installed at the door handle position) |
| Touch screen control | Speed units displayed on the equipment include ft/s, m/s, km/s |
| Head form material | Silicone, simulating human head shape (with ears, nose, and mouth) |
| Air compressor air source requirements | Flow rate ≥ 500L/min, air pressure ≥ 0.65Apa |
| Power supply | AC 220V 50HZ |
| Control panel | Features an emergency stop device for higher safety; digital LCD display showing the speed (m/s) of the ejected object |
| Test bench | Has adjustable devices for quick and convenient installation of helmets |
| High-speed lead bullet speed measurement system | Uses advanced high-precision laser speed measurement monitor |
| Machine operation requirement | Needs to be connected to an air compressor. Provides high-pressure air source in conjunction with a high-precision air valve to enable the lead bullet to reach the test speed instantly |
| Instrument operation and test space | Operates with air; the test space is fully enclosed, with an observation port installed on the door |
Steel balls (various diameters and weight specifications)
Launcher (including steel tube)
Laser velocity measurement system (high-precision sensing device)
Touchscreen control panel
Emergency stop device, etc.
Positioning the punch: Manually adjust the punch position so that it is vertically aligned with the center of the safety goggles, with the bottom of the punch in contact with the surface of the goggles, leaving a space of at least 5mm above the head form.
Performing the impact test: Using a manual pull-type or automatic release device, allow the falling weight to drop freely from a set height, impacting the top of the punch, thereby transferring the impact force to the safety goggles through the punch.
Data recording: Record data at the moment of impact using a high-speed camera or pressure sensor, such as the peak impact force and the deformation of the safety goggles, for subsequent analysis.
