Flooring material combustion testing apparatus

The GB/T11785 flooring material combustion test apparatus is suitable for various flooring materials, such as textile carpets, cork boards, wooden boards, rubber sheets, plastic flooring, and floor coating materials. This apparatus can reflect the combustion performance of flooring materials, including the base material used. Changes in the backing material, underlayment material, or other aspects of the flooring material may affect the test results.

Application

Suitable for various flooring materials, such as textile carpets, cork boards, wood boards, rubber sheets, plastic flooring, and floor coating materials. This device can reflect the combustion performance of flooring materials, including the substrate used. Changes in backing materials, underlay materials, or other aspects of the flooring material may affect the test results. It is used to test and describe the combustion characteristics of flooring materials in response to fire and heat under controlled laboratory conditions.

Standard

ISO9239-1：2002: Reaction to fire tests for floorings - Part 1: Determination of the burning behaviour using a radiant heat source

GB/T11785: Reaction to fire tests for floorings - Determination of the burning behaviour using a radiant heat source

ISO 9239: Reaction to fire tests for floorings

ASTME 648: Standard Test Method for Critical Radiant Flux of Floor-Covering Systems Using a Radiant Heat Energy Source

NFPA 253: Standard Method of Test for Critical Radiant Flux of Floor Coverings Using a Radiant Panel Heat Source

GB 8624: Classification for Burning Behavior of Building Materials and Products

DIN 5510-2: Preventive Fire Protect in Railway Vehicle Parts 2: Fire Behaviour and Fireside Effects of Material and Parts

Feature

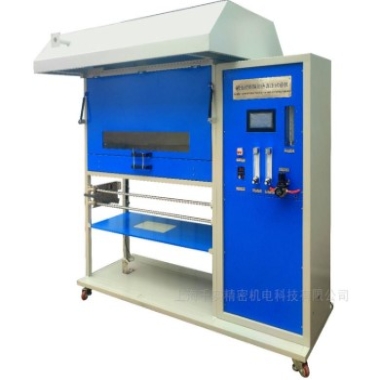

This machine consists of two parts: a combustion chamber and a control box. (Separate and integrated units are available.)

Combustion chamber dimensions: L1420*W1200*H2300 (mm)

Control box/combustion chamber material: Made of high-quality stainless steel plate, processed by CNC machine tools, with a beautiful and elegant curved design.

Burner: Manufactured by our company, made of 304 stainless steel, conforming to GB/T11785 standard requirements.

Other mechanical parts are made of high-quality stainless steel or thickened A3 steel with electroplating for corrosion and rust resistance.

Parameters

Accessoriess

Radiant panel

Test chamber

Igniter

Propane flow controller

Flue gas exhaust system (including fan and exhaust duct)

Hot-wire anemometer

Water-cooled heat flux meter

Temperature sensors, etc.

Test Procedures

Set the airflow of the smoke exhaust system, remove the simulated sample, close the sample access door, ignite the radiant panel, and allow the apparatus to preheat for at least 1 hour until the chamber temperature stabilizes.

Measure the blackbody temperature of the radiant panel. If the blackbody temperature and chamber temperature are outside the given temperature range, adjust the gas/air input to the radiant panel.

Mount the test specimen on the specimen holder, ignite the igniter, and position it at least 50 mm away from the zero point of the specimen. Move the sliding platform into the test chamber and immediately close the sample access door. The test begins.

Keep the igniter at least 50 mm away from the zero point of the specimen. After a 2-minute preheating period, bring the igniter into contact with the specimen at a distance of 10 mm from the inner edge of the specimen holder, as specified.

Allow the ignition flame to contact the specimen for 10 minutes, then remove the igniter, positioning it at least 50 mm away from the zero point, and extinguish the ignition flame.

During the test, record the time when the flame reaches each 50 mm mark and the furthest distance reached by the flame front at that moment. The test should be concluded after 30 minutes.

The next test cannot be performed if the blackbody temperature and chamber temperature do not meet the specified requirements.
